8.2kW Fronius Primo 8.2-1 8.2kW 240/208VAC TL Inverter 4,210,060,800
8.2kW Fronius Primo 8.2-1 8.2kW 240/208VAC TL Inverter 4,210,060,800
8.2kW Fronius Primo 8.2-1 8.2kW 240/208VAC TL Inverter 4,210,060,800
8.2kW Fronius Primo 8.2-1 8.2kW 240/208VAC TL Inverter 4,210,060,800
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
8.2kW Fronius Primo 8.2-1 8.2kW 240/208VAC TL Inverter 4,210,060,800
4,210,060,800

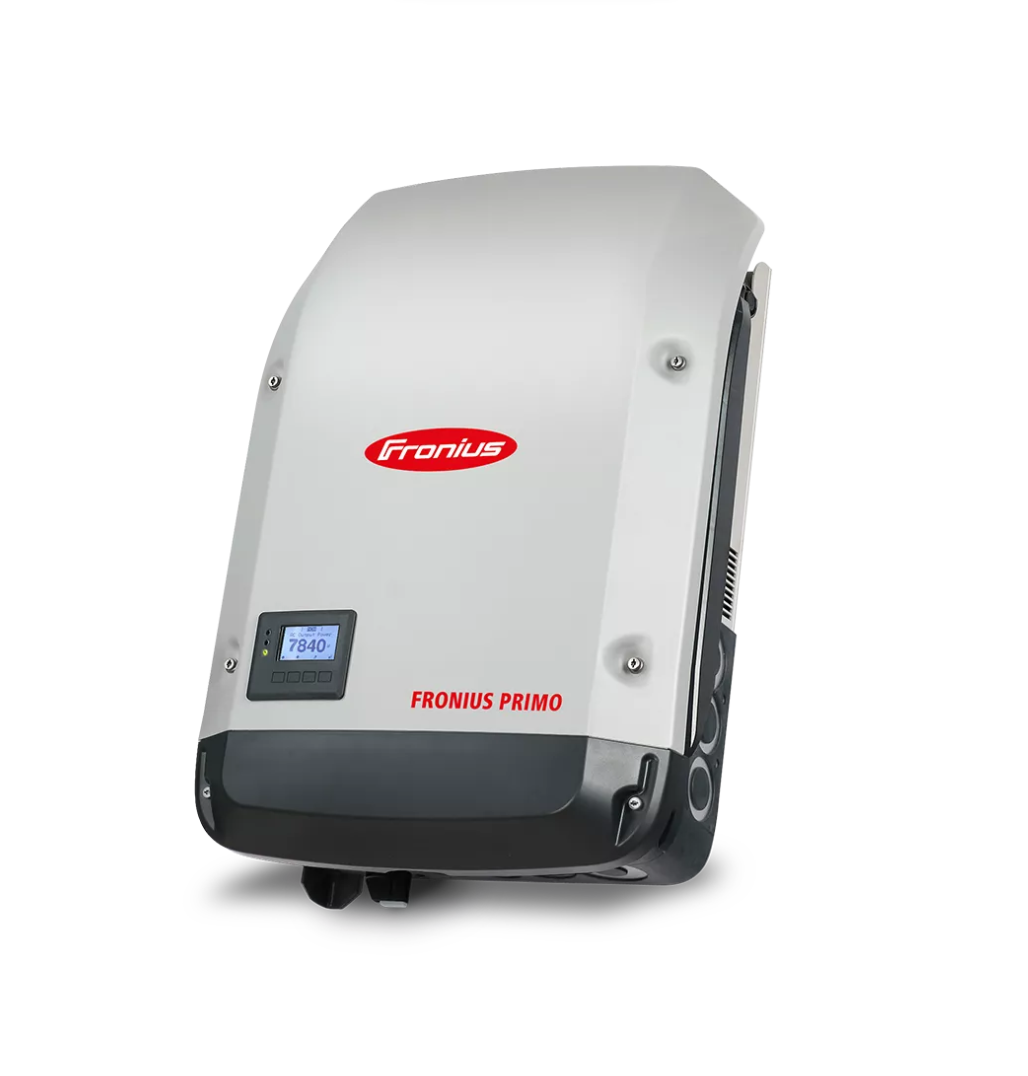

FRONIUS PRIMO 8.2-1 208-240VAC Single Phase String Inverter
Features
- High Efficiency: Up to 97% maximum efficiency with 96.5% CEC efficiency.
- Dual MPPT: Supports two independent Maximum Power Point Tracking (MPPT) inputs for flexible system design.
- Smart Connectivity: Integrated Wi-Fi, Ethernet, and RS485 for advanced monitoring and remote updates via Fronius Solar.web.
- Durable Design: NEMA 4X-rated enclosure for indoor and outdoor installations.
- Advanced Safety: Features AFCI, ground fault protection, and rapid shutdown compliance.
Technology Overview
The Fronius Primo 8.2-1 uses transformerless technology for lightweight design and high performance. It includes Fronius’ SnapINverter mounting system for easy installation and servicing. The inverter supports load management and is smart grid ready, ensuring future-proof compatibility with grid requirements.
Applications
- Ideal for residential solar energy systems.
- Supports flexible installation scenarios with dual MPPTs for complex rooftop designs.
- Smart grid readiness makes it suitable for areas with stringent grid requirements.
Installation
- Mounting: Easy-to-install SnapINverter hinge mounting system.
- Environmental Conditions: Operates in temperatures from -40°F to 131°F (-40°C to 55°C).
- Connections: Screw terminals for DC and AC connections, supporting AWG 14-6 copper or aluminum wires.
- Placement: Suitable for both indoor and outdoor installations with a durable, weather-resistant design.
Specifications
| Category | Specification |
|---|---|
| Input (DC) | |
| Recommended PV Power | 6.6 - 12.7 kW |
| MPPT Voltage Range | 270 - 480 V |
| Max Input Voltage | 600 V |
| Max Input Current | 18 A (MPPT1 and MPPT2), 36 A total |
| DC Startup Voltage | 80 V |
| Output (AC) | |
| Rated Output Power | 8.2 kW |
| Output Voltage | 208/240 V |
| Frequency Range | 58.5 - 60.5 Hz |
| Max Continuous Output Current | 34.2 A (240 V), 38 A (208 V) |
| Total Harmonic Distortion | <5% |
| General | |
| Max Efficiency | 97.0% |
| Night Consumption | <1 W |
| Cooling | Variable speed fan |
| Dimensions (WxHxD) | 16.9 × 24.7 × 8.1 in |
| Weight | 47.29 lbs |
| Enclosure Rating | NEMA 4X |
| Warranty | 10 years (extendable to 15 or 20 years) |
Why Choose Fronius?
Fronius, founded in 1945 in Austria, is a global leader in solar energy solutions, renowned for its dedication to innovation and sustainability. With decades of expertise, the company specializes in solar inverters, energy management systems, and EV charging solutions, serving residential, commercial, and industrial markets.
Fronius stands out with its cutting-edge inverter technology, such as the SnapINverter and GEN24 Plus series, offering exceptional efficiency, reliability, and user-friendly design. Their integrated monitoring systems, like the Fronius Solar.web, provide real-time insights and seamless energy management for optimal performance.
Fronius demonstrates its commitment to quality with robust warranties of up to 10 years on its products. Their emphasis on durability, advanced technology, and sustainability makes them a trusted partner for long-term, efficient, and reliable energy solutions.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
