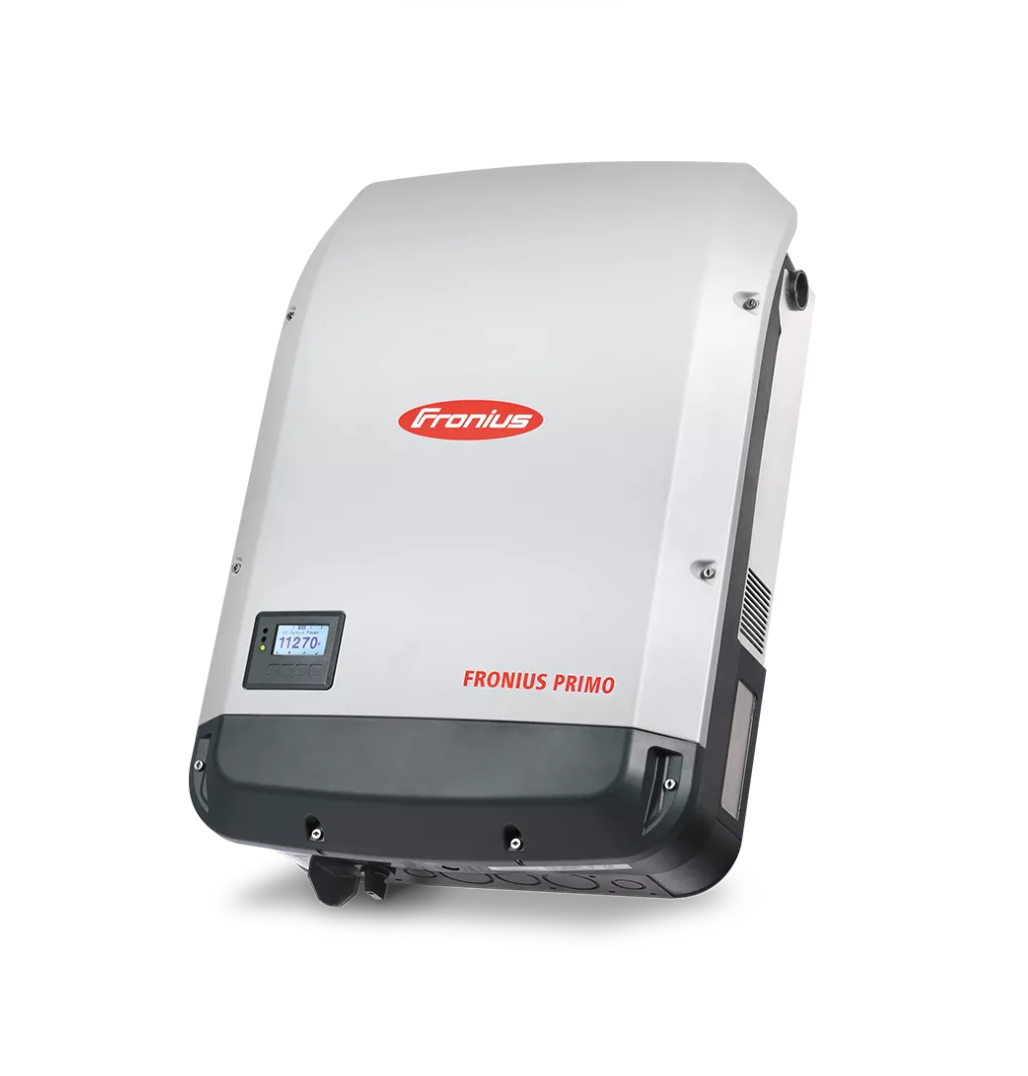

Fronius Primo 10kW Single-Phase Grid-Tied Solar Inverter – 4210075800
MPN No: 4210075800
Expected ship date Nov 22 - 29
In Stock
3,128.83
-5%
$2,970.00
You will not be able to undo this action.

U.S. Warehouse
Trusted by Thousands
Expert U.S. Support

4210075800
MPN No: 4210075800
Expected ship date Nov 22 - 29
In Stock
3,128.83
-5%
$2,970.00
10kW Class | Single-Phase 208V/240V | Dual MPPT | Transformerless | Integrated AFCI | Wi-Fi/Ethernet | Fronius Solar.web Monitoring
The Fronius Primo 10.0-1 is a high-performance, single-phase grid-tied solar inverter designed for residential photovoltaic installations. Featuring Fronius' SnapINverter mounting system, dual maximum power point trackers, and integrated system monitoring, the Primo offers flexible solar array design and convenient installation.
With a maximum continuous AC output rating of 9,995VA, the Primo 10.0-1 is designed for residential solar arrays with a manufacturer-recommended PV capacity of 8–12kW DC.
The transformerless design supports high-voltage PV strings, while two independent MPPTs provide flexibility for arrays with different orientations or operating conditions.
Integrated Wi-Fi and Ethernet connectivity, an included datalogger, and Fronius Solar.web compatibility allow system owners and installers to monitor solar production and access inverter information.
Important: The Fronius Primo 10.0-1 is a grid-tied string inverter. It does not include battery storage, a battery charging function, or standalone backup power capability.
The Fronius Primo 10.0-1 includes two independent maximum power point trackers, allowing installers to design compatible PV arrays with greater flexibility.
MPPT 1 supports up to 33A of usable input current, while MPPT 2 supports up to 18A. The combined maximum usable input current is 51A.
This configuration is particularly useful when solar modules are installed across different roof orientations or when separate PV strings require independent power point tracking.
The Fronius SnapINverter mounting system uses a hinged design that helps simplify mounting, electrical installation, and access for service.
The Primo also incorporates a replaceable circuit board concept, allowing qualified service technicians to perform certain repairs without replacing the entire inverter assembly.
Its NEMA 4X-rated enclosure supports indoor and outdoor installation, while variable-speed fan cooling helps manage operating temperatures.
The Primo 10.0-1 includes integrated communication interfaces and an onboard datalogger for solar production monitoring.
Through compatible network connectivity and the Fronius Solar.web platform, system owners and installers can review inverter performance and access system operating information.
The Fronius Primo incorporates several protective functions designed for grid-connected photovoltaic applications.
Compliance Note: The supplied manufacturer datasheet references UL 1741 Supplement SA and IEEE 1547-2003-era requirements. Current utility interconnection acceptance and any UL 1741 SB or IEEE 1547-2018 requirements must be verified for the exact inverter version before installation.
| Specification | Details |
|---|---|
| General Specifications | |
| Manufacturer | Fronius |
| Series | Primo |
| Model | Primo 10.0-1 |
| Product Type | Single-phase grid-tied solar string inverter |
| Inverter Topology | Transformerless |
| Power Class | 10kW |
| MPN | 4210075800 |
| Mounting System | SnapINverter |
| Enclosure Rating | NEMA 4X |
| Installation | Indoor or outdoor |
| Cooling | Variable-speed fan |
| Dimensions (W × H × D) | 20.1 × 28.5 × 8.9 inches |
| Weight | 82.5 lbs |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Permitted Humidity | 0–100% |
| Maximum Installation Elevation | 13,123 ft (4,000 m) |
| Nighttime Consumption | Less than 1W |
| Warranty | 10 years; extensions available to 15 or 20 years |
| DC Input Specifications | |
| Recommended PV Power | 8–12kW DC |
| Maximum DC Input Voltage | 1,000V |
| DC Operating Voltage Range | 80–1,000V |
| DC Startup Voltage | 80V |
| MPPT Voltage Range | 220–800V |
| Nominal DC Input Voltage | 655V |
| Number of MPPTs | 2 |
| Maximum Usable Input Current — MPPT 1 | 33A |
| Maximum Usable Input Current — MPPT 2 | 18A |
| Maximum Combined Usable Input Current | 51A |
| Maximum Array Short-Circuit Current — MPPT 1 | 49.5A |
| Maximum Array Short-Circuit Current — MPPT 2 | 27A |
| Integrated DC String Fuse Holders | 4 positive and 4 negative for MPPT 1 |
| AC Output Specifications | |
| Maximum Continuous AC Output Power | 9,995VA at 208V or 240V |
| AC Output Configuration | Single-phase 208V/240V |
| Nominal Frequency | 60Hz |
| Maximum Continuous AC Output Current at 208V | 48.1A |
| Maximum Continuous AC Output Current at 240V | 41.6A |
| Recommended AC Breaker at 208V | 70A |
| Recommended AC Breaker at 240V | 60A |
| Total Harmonic Distortion | Less than 2.5% |
| Power Factor Range | 0–1 inductive/capacitive |
| Maximum Efficiency | 96.7% |
| CEC Efficiency at 240V, 600V DC | 96.0% |
| CEC Efficiency at 240V, 1,000V DC | 96.5% |
| Communication and Monitoring | |
| Wi-Fi | Integrated |
| Ethernet LAN | Integrated |
| Monitoring Platform | Fronius Solar.web |
| Datalogger and Webserver | Included |
| Modbus TCP | SunSpec supported |
| Modbus RTU | SunSpec supported via RS485 |
| USB Interface | Included |
| Fronius Solar Net | 2 × RS422 RJ45 interfaces |
| Protection and Compliance | |
| Arc Fault Protection | Integrated AFCI |
| Anti-Islanding Protection | Integrated |
| Ground Fault Protection | Integrated |
| DC Reverse Polarity Protection | Yes |
| DC Disconnect | Integrated |
| Rapid Shutdown | Manufacturer lists rapid shutdown compliance; verify complete installation requirements |
| Published Certifications | UL 1741-2010 Second Edition with Supplement SA, UL 1998, IEEE 1547-2003, IEEE 1547.1-2003, UL 1699B, CSA C22.2 No. 107.1-16, and additional standards listed in the manufacturer datasheet |
The Fronius Primo 10.0-1 must be connected to a compatible utility electrical system and a properly designed photovoltaic array.
Installers must confirm PV string voltage, maximum open-circuit voltage under cold conditions, operating current, MPPT configuration, AC breaker sizing, conductor sizing, grounding, and applicable rapid shutdown requirements.
The inverter does not include battery charging or standalone backup functionality. Additional equipment may be required for system-level monitoring, rapid shutdown compliance, utility interconnection, and electrical balance-of-system requirements.
Important: Utility acceptance and current grid-interconnection certification requirements vary by jurisdiction. Confirm that this exact inverter model and certification revision are accepted by the local utility before purchasing for a new installation.
No. It is a grid-tied solar string inverter and does not include a battery charger or integrated battery storage functionality.
Yes.
Yes. The manufacturer lists single-phase 208V and 240V AC output configurations.
The Fronius Primo 10.0-1 includes two independent maximum power point trackers.
Fronius recommends a PV array capacity of approximately 8–12kW DC for the Primo 10.0-1. Final sizing depends on module specifications, site conditions, and system design.
Yes. The manufacturer lists integrated Wi-Fi, Ethernet, an onboard datalogger, and compatibility with Fronius Solar.web.
No. The Fronius Primo is a grid-tied inverter with anti-islanding protection and does not provide standalone backup power.
Yes. The Primo 10.0-1 has a NEMA 4X enclosure and is designed for compatible indoor or outdoor installations.
The manufacturer lists rapid shutdown compliance. Complete system compliance depends on the installed equipment, configuration, applicable code, and utility requirements.
The manufacturer datasheet lists a 10-year warranty, with extensions to 15 or 20 years available under applicable terms.
