Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
MPN No: 4,210,141,802
Expected ship date Jul 23 - 30
In Stock
2,299.00
-19%
$1,859.75
Sale
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
Regular price
$2,299.00
-19%
$1,859.75
19% OFF
LESS THAN 50
Sale
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
Available
MPN No: 4,210,141,802
Regular price
$2,299.00
-19%
$1,859.75
Expected ship date Jul 23 - 30
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$2,299.00
-19%
$1,859.75
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802
MPN No:
4,210,141,802
Expected ship date Jul 23 - 30
Sale
Fronius Primo GEN24 Plus 5.0kW Hybrid Inverter 208/240VAC, 2 MPPT, NEMA 4X 4,210,141,802

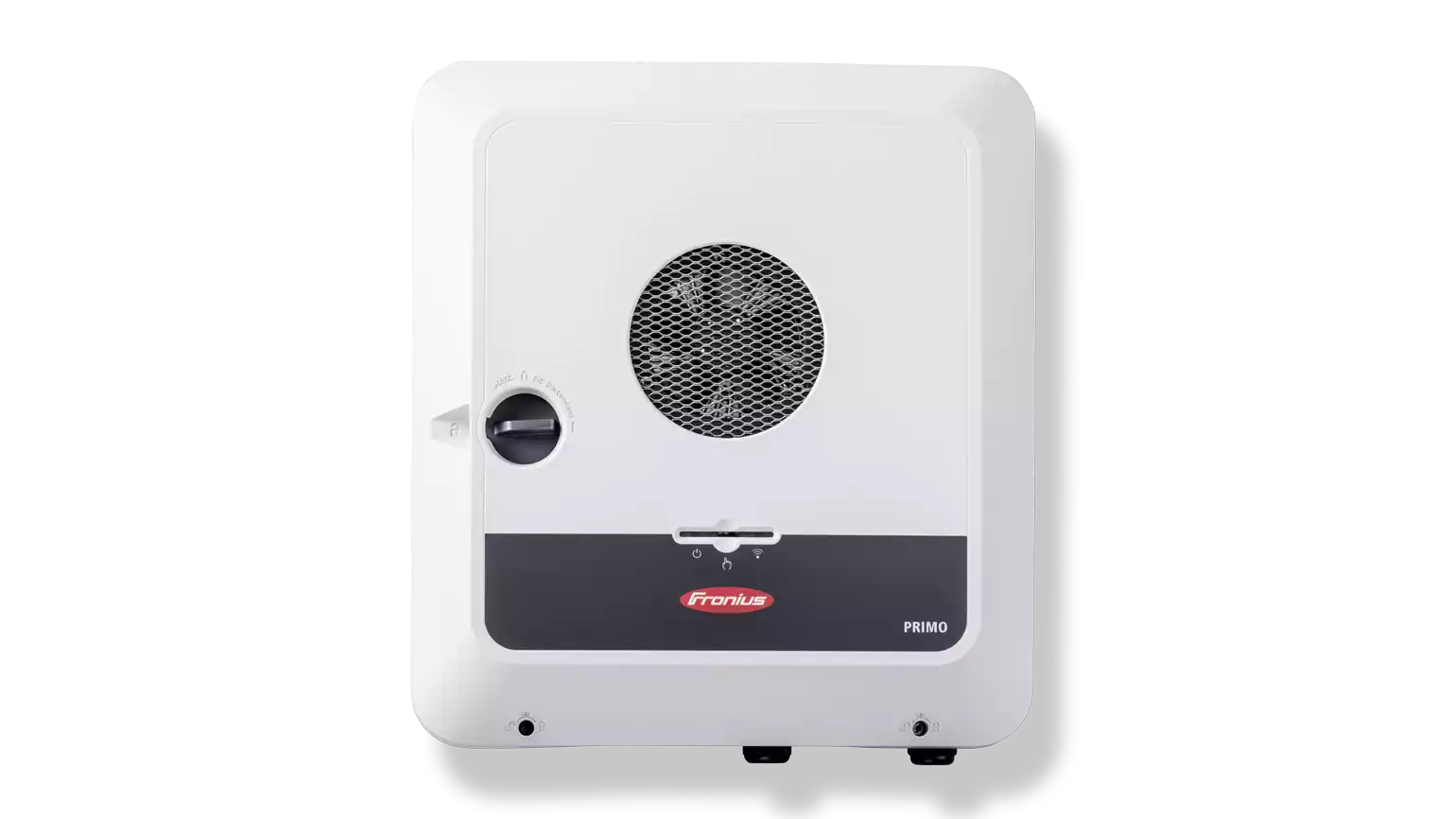

The Fronius Primo GEN24 Plus 5.0 is a premium single-phase hybrid inverter designed for residential solar systems requiring flexible energy management, battery readiness, integrated backup capability, and reliable 208/220/240VAC operation. Built with Fronius Dynamic Peak Manager shade management, SuperFlex Design, and Active Cooling Technology, this inverter helps maximize solar production while supporting long-term reliability.
As a GEN24 Plus model, the 4,210,141,802 supports battery connection with compatible BYD Battery-Box Premium HVM US batteries, PV Point backup power, and essential backup capability when used with the required external grid-separation equipment. It also includes integrated monitoring, web server functionality, WLAN/Ethernet communication, Modbus support, and Fronius Solar.web connectivity.
Key Technology
-
5.0kW Hybrid Inverter Platform
Provides solar conversion, battery integration, backup power support, and smart energy management in one unit. -
Dynamic Peak Manager
Integrated shade management optimizes string-level PV production without requiring additional module-level optimizers. -
GEN24 Plus Battery Compatibility
Supports compatible BYD Battery-Box Premium HVM US battery systems. -
PV Point Backup Power
Provides a dedicated backup outlet function for selected loads when solar power is available. -
Essential Backup Capability
Supports backup power up to inverter output power when properly configured with external grid-separation equipment. -
SuperFlex Design
Two MPPTs and flexible string design support complex residential roof layouts. -
Active Cooling Technology
Helps protect electronic components from heat stress for improved service life. -
Advanced Monitoring & Communication
Supports Fronius Solar.web, Modbus TCP, Fronius Solar API, SunSpec Modbus, WLAN, and Ethernet.
Best Uses
-
Residential Solar Systems
Ideal for homeowners seeking reliable solar production and smart energy management. -
Solar + Battery Storage
Designed for systems using compatible high-voltage battery storage. -
Backup Power Applications
Supports PV Point and essential backup functionality when properly configured. -
Complex Rooftop Layouts
Two MPPTs and SuperFlex Design help optimize production across multiple roof orientations. -
Energy Independence Projects
Helps increase self-consumption and reduce reliance on utility power.
Warranty
- Product Type: GEN24 Plus Hybrid Inverter
- AC Rated Power: 5,000W
- Maximum Efficiency: Up to 97.6%
- Protection Class: NEMA 4X
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fronius |
| Part Number | 4,210,141,802 |
| Model | Primo GEN24 Plus 5.0 208-240 |
| Product Type | Single-Phase Hybrid Inverter |
| AC Rated Power | 5,000W |
| Apparent Power | 5,000VA |
| AC Output Voltage | Single Phase 208V / 220V / 240V |
| Rated AC Output Current | 24A at 208V / 22.7A at 220V / 20.8A at 240V |
| Frequency | 50Hz / 60Hz |
| Number of MPPTs | 2 |
| DC Input Voltage Range | 65V - 600V DC |
| Feed-In Start Voltage | 80V DC |
| Usable MPPT Voltage Range | 65V - 530V DC |
| MPPT Voltage Range at Rated Power | 230V - 480V DC |
| Maximum Usable Input Current | 22A MPPT1 / 12A MPPT2 |
| Maximum Short Circuit Current | 36A MPPT1 / 19A MPPT2 |
| Maximum Usable DC Power | 5,150W Total |
| Maximum PV Generator Output | 7,500Wpeak at 208/240V; 6,800Wpeak at 220V |
| PV Point Rated Output Power | 1,560VA |
| PV Point Voltage | Single Phase 120V / 220V / 240V |
| PV Point Switching Time | Approximately 17 Seconds |
| Battery Compatibility | BYD Battery-Box Premium HVM US |
| Battery DC Input Voltage Range | 150V - 455V DC |
| Maximum Battery Input Current | 22A |
| Maximum Charging Power with AC Coupling | 5,000W |
| Essential Backup Output | 5,000VA at 220V / 240V |
| Maximum Efficiency | 97.4% at 208/220V; 97.6% at 240V |
| CEC Efficiency | 97% |
| MPP Adjustment Efficiency | >99.9% |
| Protection Features | DC Insulation Measurement, DC Disconnector, Reverse Polarity Protection, Arc Fault Circuit Interruption |
| Communication | WLAN, Ethernet LAN, Modbus TCP, Fronius Solar API, SunSpec Modbus |
| Monitoring Platform | Fronius Solar.web |
| Cooling Method | Active Cooling Technology |
| Protection Class | NEMA 4X |
| Installation | Indoor or Outdoor |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Permissible Humidity | 0% - 100% |
| Noise Emissions | <42 dB(A) |
| Maximum Altitude | 13,123 ft (4,000 m) |
| Dimensions | 20.4 × 18.7 × 6.5 in |
| Weight | 35.56 lbs |
| Country of Manufacture | Austria |
| Certifications | UL1741 Third Edition, UL1741 SA/SB, UL1998, IEEE1547, FCC Part 15, CSA C22.2, UL1699B, UL9540 Ed. 3, SunSpec Modbus |
About Fronius:
Fronius is a global manufacturer of advanced solar inverters, battery charging systems, and energy technologies. Known for reliable engineering, intelligent monitoring, and long-term product support, Fronius develops inverter solutions designed to maximize solar production and energy independence.
Smart Hybrid Solar Power for Residential Energy Independence
The Fronius Primo GEN24 Plus 5.0 combines hybrid inverter functionality, battery compatibility, backup power support, integrated shade management, and advanced monitoring into a compact residential inverter platform designed for modern solar energy systems.
