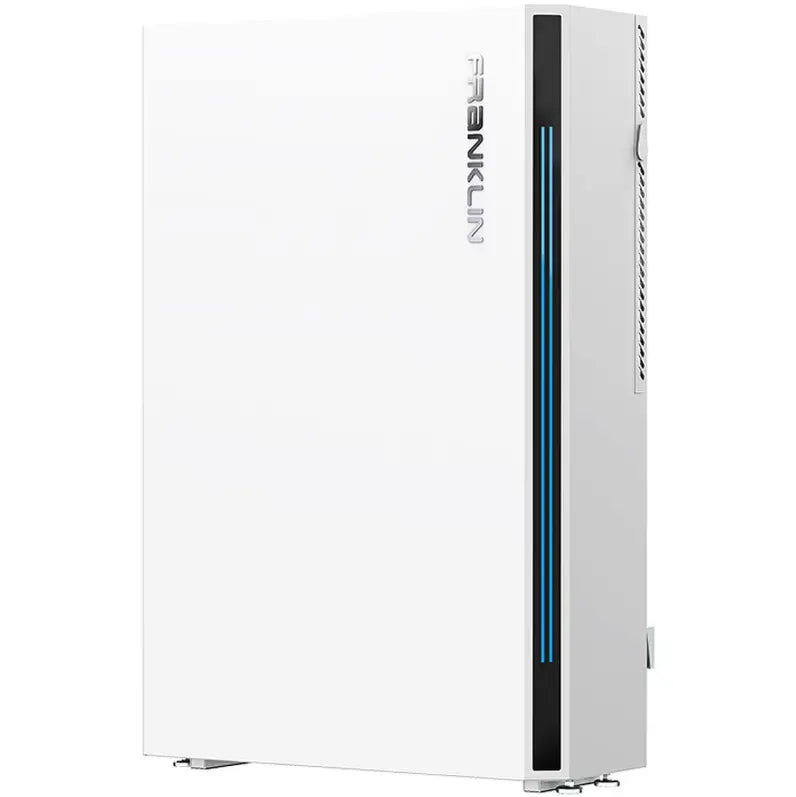

FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage
FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage
FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage
FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage
APR-05K13V1-US
Specifications
FranklinWH aPower 120/240V X 13.6kWh APR-05K13V1-US Battery Storage Unit
Special Features
- Smart Power Management: The FHP integrates grid, solar, battery, and generator sources, providing seamless power management via the FranklinWH app.
- High-Performance Backup: Detects grid outages and transitions to backup power within 16 milliseconds, maintaining essential functions during blackouts.
- Flexible and Scalable: Supports up to 15 aPower X units, expanding usable energy from 13.6kWh to 204kWh with a continuous power range from 5kW to 38.4kW.
- Environmentally Robust: NEMA 3R-rated, corrosion-resistant, and operable in harsh conditions, both indoors and outdoors.
- User-Friendly App Control: Remotely manage and monitor energy usage, load control, and generator functionality from anywhere.
Technology Overview
The Franklin Home Power (FHP) system combines advanced lithium iron phosphate battery technology and a robust micro-grid interface. The aPower X units are self-contained, AC-coupled batteries with an integrated battery management system and inverter. The aGate X smart controller offers auto-detection of power outages, quick switching to backup power, and seamless solar restart capabilities. This system is designed for both daily cycling and emergency backup, making it ideal for energy resilience and independence.
Installation
The FHP system is designed for flexible installation options. The aPower X units and aGate X can be mounted indoors or outdoors on a wall or floor. Each unit is pre-assembled, facilitating straightforward installation by certified technicians. Multiple conduit entries are provided to accommodate different wiring configurations.
Applications
- Residential Power Management: Ideal for homes seeking consistent power, even during outages, with efficient solar and battery integration.
- Commercial and Industrial Backup Power: Suitable for businesses looking for robust power management solutions that offer quick transition during grid disruptions.
- Solar and Generator Integration: Compatible with solar panels and standby generators, providing an integrated power backup and load-shedding solution.
Product Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Usable System Energy | 13.6 kWh per unit, scalable up to 204 kWh |
| Continuous Power | 5 kW per unit, up to 38.4 kW with multiple units |
| Peak Power (10s) | 10 kW per unit, up to 76.8 kW with multiple units |
| Round Trip Efficiency | 89% |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Enclosure Rating | NEMA 3R, indoor/outdoor rated |
| Switch-Over Time | <16 milliseconds |
| Warranty | 12 years |
| Dimensions (aGate X) | 51.57 x 36.61 x 21.46 in |
| Weight (aGate X) | 510 |
| App Compatibility | FranklinWH app for iOS and Android |
| Maximum Installation Altitude | 9,843 ft (3,000 m) |
