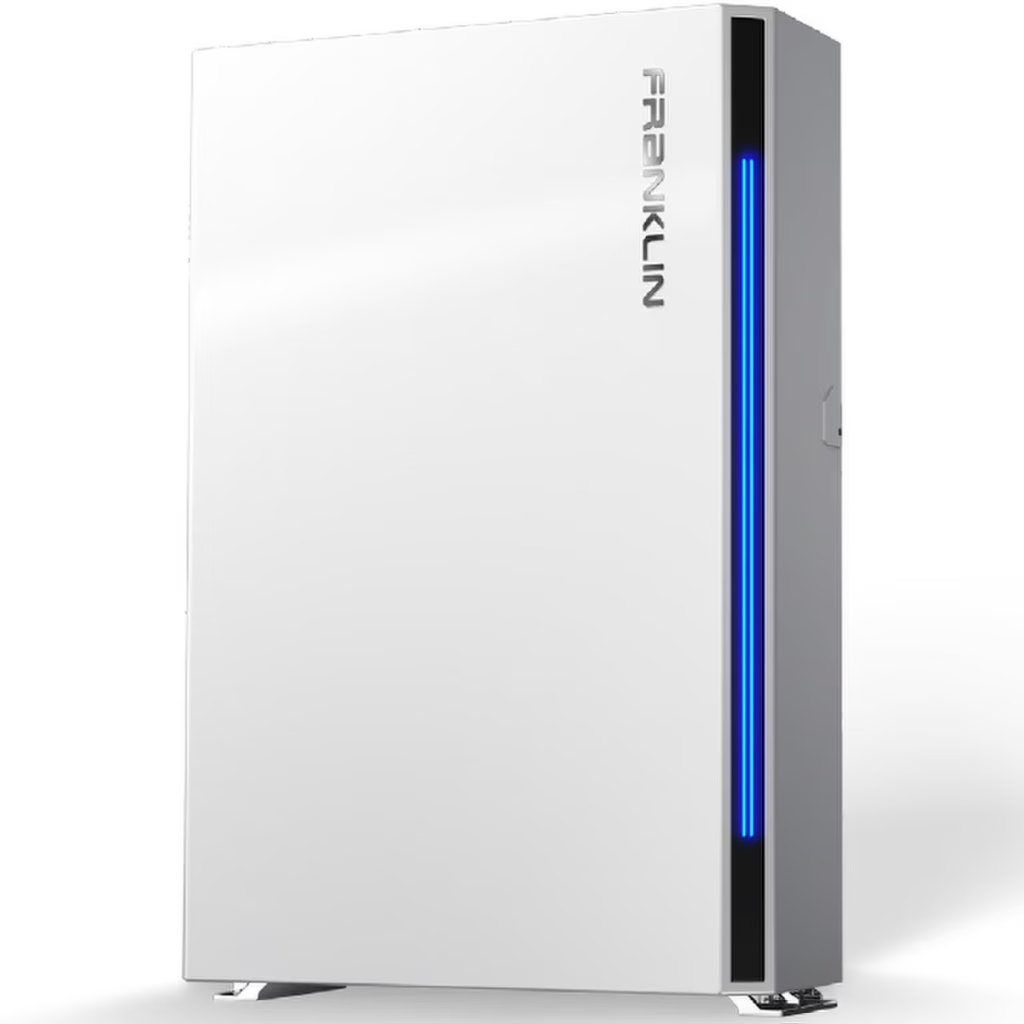

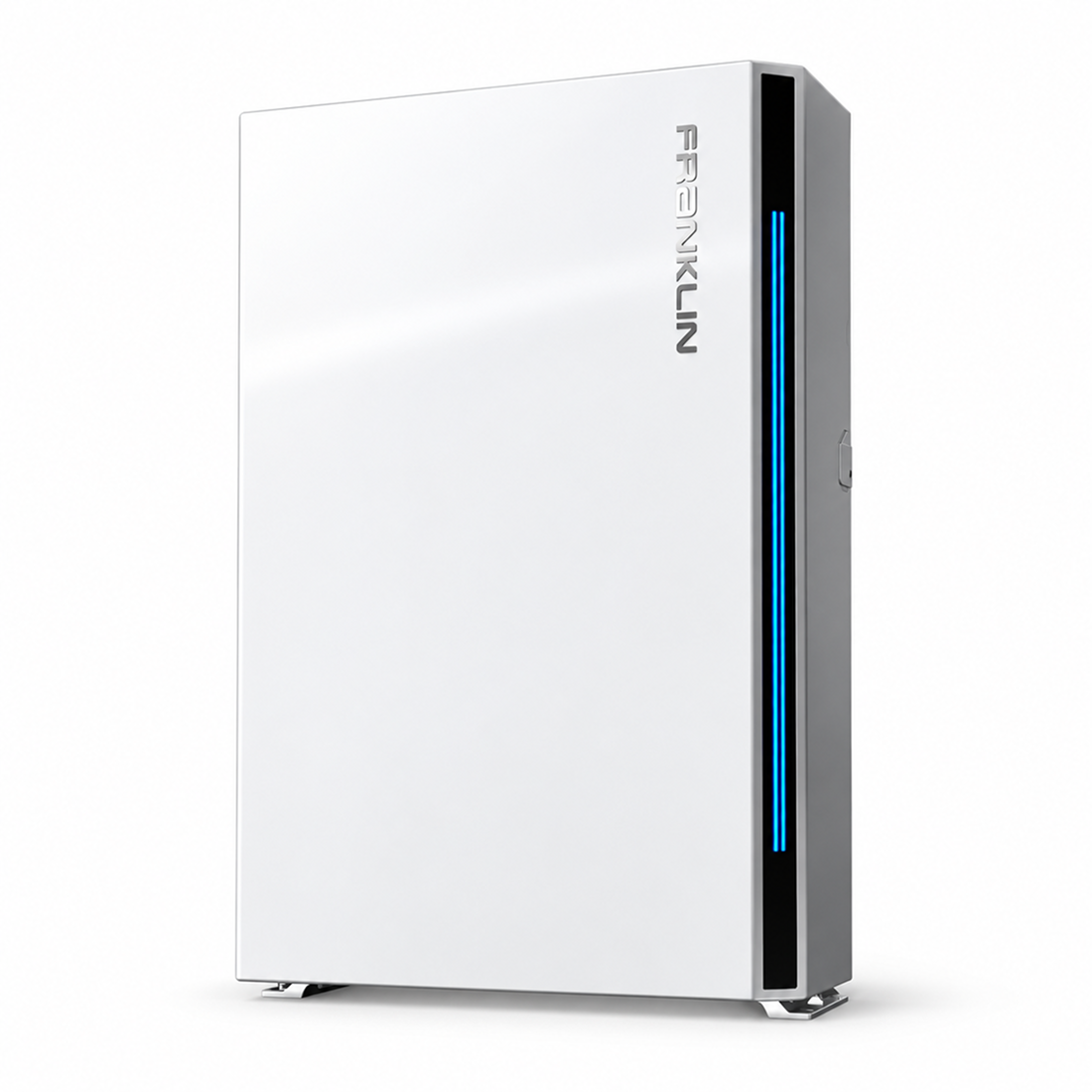

FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
MPN No: APR-10K15V2-US
Expected ship date Feb 19 - 26
In Stock
10,689.00
-13%
$9,299.00
Sale
FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
Regular price
$10,689.00
-13%
$9,299
13% OFF
LESS THAN 50
Sale
FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
Available
MPN No: APR-10K15V2-US
Regular price
$10,689.00
-13%
$9,299
Expected ship date Feb 19 - 26
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$10,689.00
-13%
$9,299
FranklinWH aPower 2 15kWh Battery 10kW Discharge Power APR-10K15V2-US
MPN No:
APR-10K15V2-US
Expected ship date Feb 19 - 26
Sale
FranklinWH aPower 2 Battery APR-10K15V2-US
Key Technical Features
-
15 kWh AC-Coupled LFP Energy Storage
High-density lithium iron phosphate (LFP) chemistry delivers long cycle life, improved thermal stability, and enhanced safety compared to NMC-based systems. -
Integrated 10 kW Continuous / 15 kW Surge Inverter
Built-in bidirectional inverter provides 10 kW continuous output with up to 15 kW surge capability (10 seconds), enabling true whole-home backup including large loads. -
120/240V Split-Phase Output (Single-Phase)
Native split-phase architecture supports standard U.S. residential electrical systems without the need for external transformers. -
AC-Coupled Architecture for Retrofit or New Solar
Designed for seamless integration with existing solar inverters or new PV systems, allowing flexible system design and simplified interconnection. -

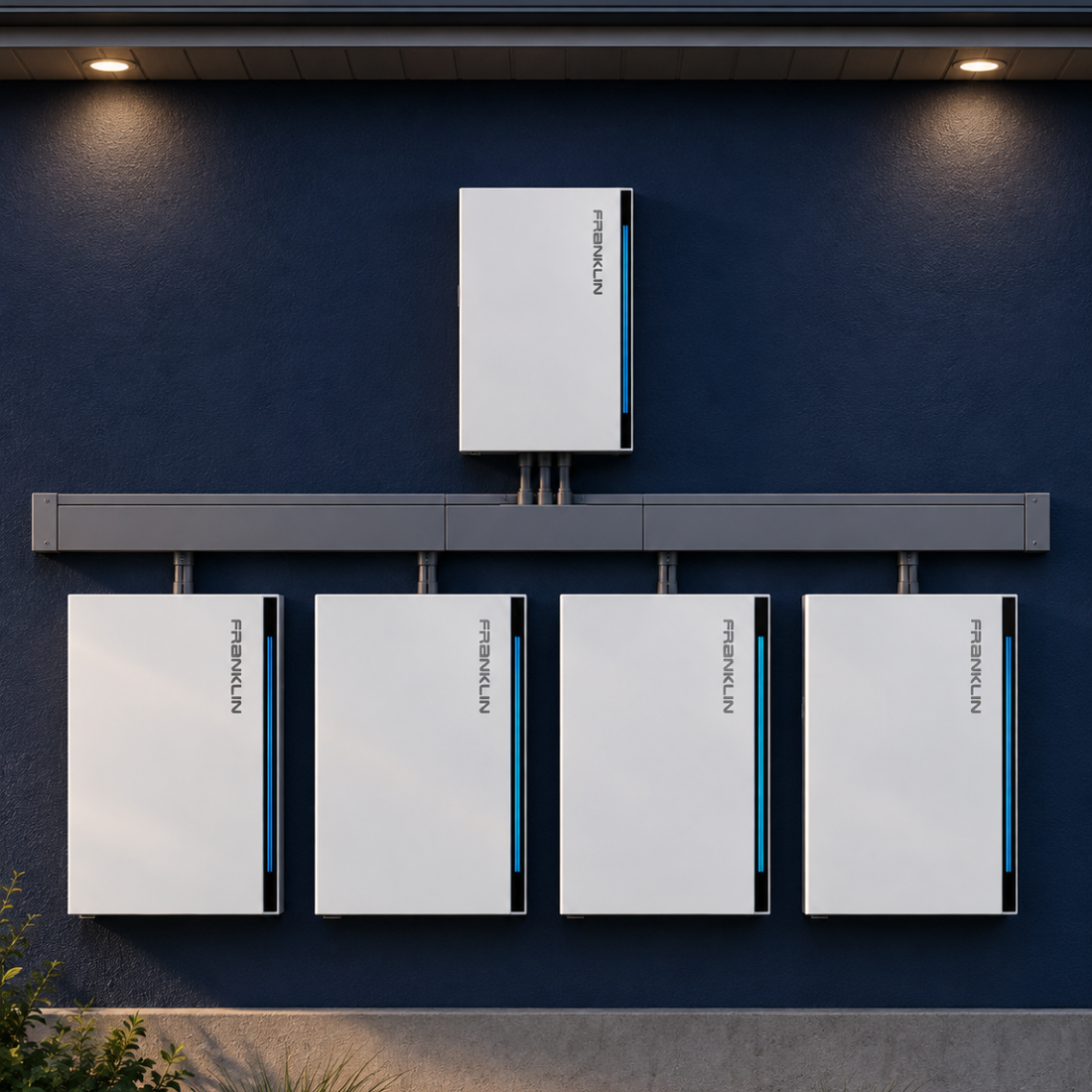

High System Scalability
Supports expansion up to 15 batteries per aGate controller, enabling total system capacities up to 225 kWh for large homes or light commercial applications. -
Advanced Battery Management System (BMS)
Integrated BMS continuously monitors cell voltage, temperature, current, and state of charge to optimize performance and protect system longevity. -
High Environmental & Ingress Protection Ratings

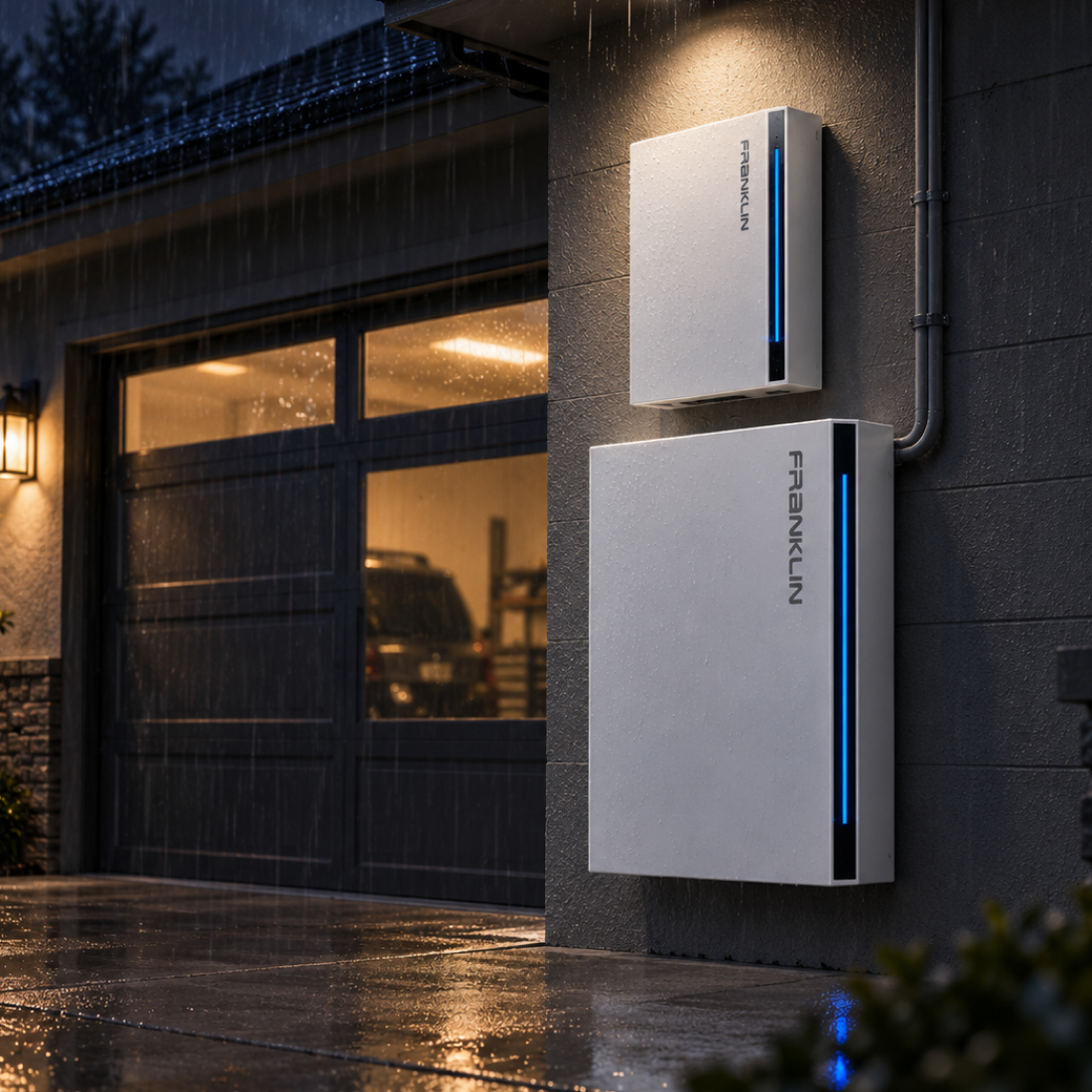

Battery pack rated up to IP67 with wiring enclosure rated IP56, supporting indoor or outdoor installations in demanding environments. -
Low Acoustic Profile
Designed for residential settings with quiet operation (~30 dBA typical), suitable for garages, utility rooms, or exterior wall mounting. -
Grid-Forming & Backup-Ready Operation
Capable of islanding during outages and maintaining stable voltage and frequency for critical and whole-home loads. -
Certified for U.S. Interconnection & Safety Standards
Compliant with UL 9540, UL 1973, UL 1741 (PCS & SB), IEEE 1547, FCC Part 15, and UN 38.3 for transport and installation. -
Long-Term Performance Warranty
Backed by a 15-year or 60 MWh throughput warranty, reflecting long design life and confidence in LFP chemistry.
Applications:
- Solar energy storage
- Backup power for outages
- Time-of-use optimization
- Off-grid living (with appropriate system design)
Why choose FranklinWH? FranklinWH is a leading innovator in home energy management solutions, dedicated to providing safe, reliable, and intelligent products that empower homeowners.
Product Specification Table: FranklinWH aPower 2 Battery (APR-10K15V2-US)
| Feature | Specification |
|---|---|
| Model Number | APR-10K15V2-US |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Nominal Energy | 10 kWh |
| Usable Energy | 9.8 kWh |
| Nominal Voltage | 51.2 V |
| Rated Output Power | 5 kW (Continuous) |
| Peak Output Power | 10 kW (10 seconds) |
| AC Coupling | Integrated AC-coupled inverter |
| Efficiency | >97% (Round-trip) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions (HxWxD) | 45.3 in x 29.5 in x 6.5 in (1150 mm x 750 mm x 165 mm) |
| Weight | 265 lbs (120 kg) |
| Enclosure Rating | NEMA 3R (Indoor/Outdoor rated) |
| Communication | Wi-Fi, Ethernet |
| Scalability | Up to 15 units per system (consult FranklinWH for details) |
| Warranty | 12 Years (or 6,000 cycles, whichever comes first) |
| Certifications | UL 9540, UL 1741, IEEE 1547, CA Rule 21, SGIP |
