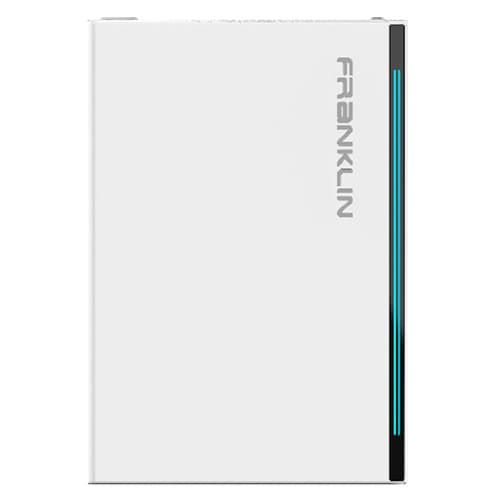

FranklinWH aGate X Intelligent energy management system AGT-R1V3-US

The FranklinWH aGate X (AGT-R1V3-US) is an intelligent micro-grid interconnect device (MID) and energy management system that orchestrates solar, grid, battery, generator, and Smart Circuits. With integrated metering, 280A busbar, and service-entrance-style protections, it streamlines whole-home backup without costly main-panel upgrades, in a NEMA 3R, indoor/outdoor, wall-mounted enclosure.

Key Benefits

All-in-One Control: Coordinates PV, grid, batteries, generator, and Smart Circuits for seamless whole-home power.

Main-Panel Upgrade Avoidance: 280A internal busbar with integrated PCS and metering.

Backup You Can Trust: Automatic transfer to backup so “always-on” loads aren’t interrupted.

Flexible I/O: Works with micro or string inverters; optional Generator Module and Smart Circuits.

Hassle-Free Setup: Commission via aGate Wi-Fi hotspot or Bluetooth; multiple conduit entry options.

Resilience Features: Black-start capability and Vehicle-to-Loads (V2L) for essentials during emergencies.

Special Technology

EMS with Revenue-Grade Metering: Integrated PV & grid metering (±0.5% AC meter) for precise control and TOU optimization.

Smart Circuits: Optional modules provide controllable load circuits (multiple ampacity options).

Warranty

12-Year Limited Warranty.

Best Uses

Whole-Home Backup: Service-entrance install with backup/non-backup load ports and generator integration.

Smart Load Control: Prioritize essentials and shed non-critical loads via Smart Circuits.

Specifications Table

About FranklinWH:

FranklinWH (founded 2019, San Jose) offers an AC‑coupled “whole‑home” energy solution featuring the aPower 2 LFP battery (15 kWh, 10 kW output, AC inverter built‑in) and aGate smart energy management controller. Systems scale up to 15 batteries per controller, integrate PV, grid, generators, EV, support solar black‑start, TOU load shifting, and include an intuitive app.

Why Buy From US Solar Supplier?

As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.

We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.

Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.

Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.

Expert Support: Our team is here to guide you every step of the way.

Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty directly from the manufacturer.

Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.

Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!

FAQs

Is the AGT-R1V3-US compatible with my solar panels?

Yes. The AGT-R1V3-US (aGate) works with both microinverters and string inverters and is compatible with most standard solar systems. It does not directly convert DC from solar panels but functions as an energy-management and interconnection device. Your installer will ensure proper configuration with your inverters and solar panels.

Do I need a battery to use the AGT-R1V3-US?

No, a battery is not required. The aGate can operate as part of a grid-tied system without a battery. However, adding a battery enables energy storage for use during outages or nighttime, allowing for self-consumption and backup power functionality.

How do I monitor the performance of my AGT-R1V3-US?

The aGate connects via Wi-Fi, Ethernet, or Bluetooth to the FranklinWH monitoring platform. Through the app or web interface, you can view system performance, solar production, grid import/export, and battery status if one is installed.

What happens if there is a power outage?

If a battery is installed and configured, the aGate automatically switches to battery power during a grid outage to supply critical loads. It also supports black start capability, allowing recovery after extended outages. Without a battery, the system will shut down during an outage to comply with anti-islanding safety standards.

How do I maintain the AGT-R1V3-US?

The unit is mostly maintenance-free. Ensure it has proper ventilation, check for error messages or alerts periodically, and keep its firmware updated. Your installer may suggest periodic inspections to confirm connections and overall system health.

What are the input and output voltage ranges?

The aGate supports 120/208 V and 120/240 V AC operation. It integrates into your home’s electrical system to manage solar, grid, and battery power flows. The device is designed to handle high-current connections, suitable for residential main panel installations.
