eBoost eWay Lite
Fortress Power Wire Management System eBoost eWay Lite

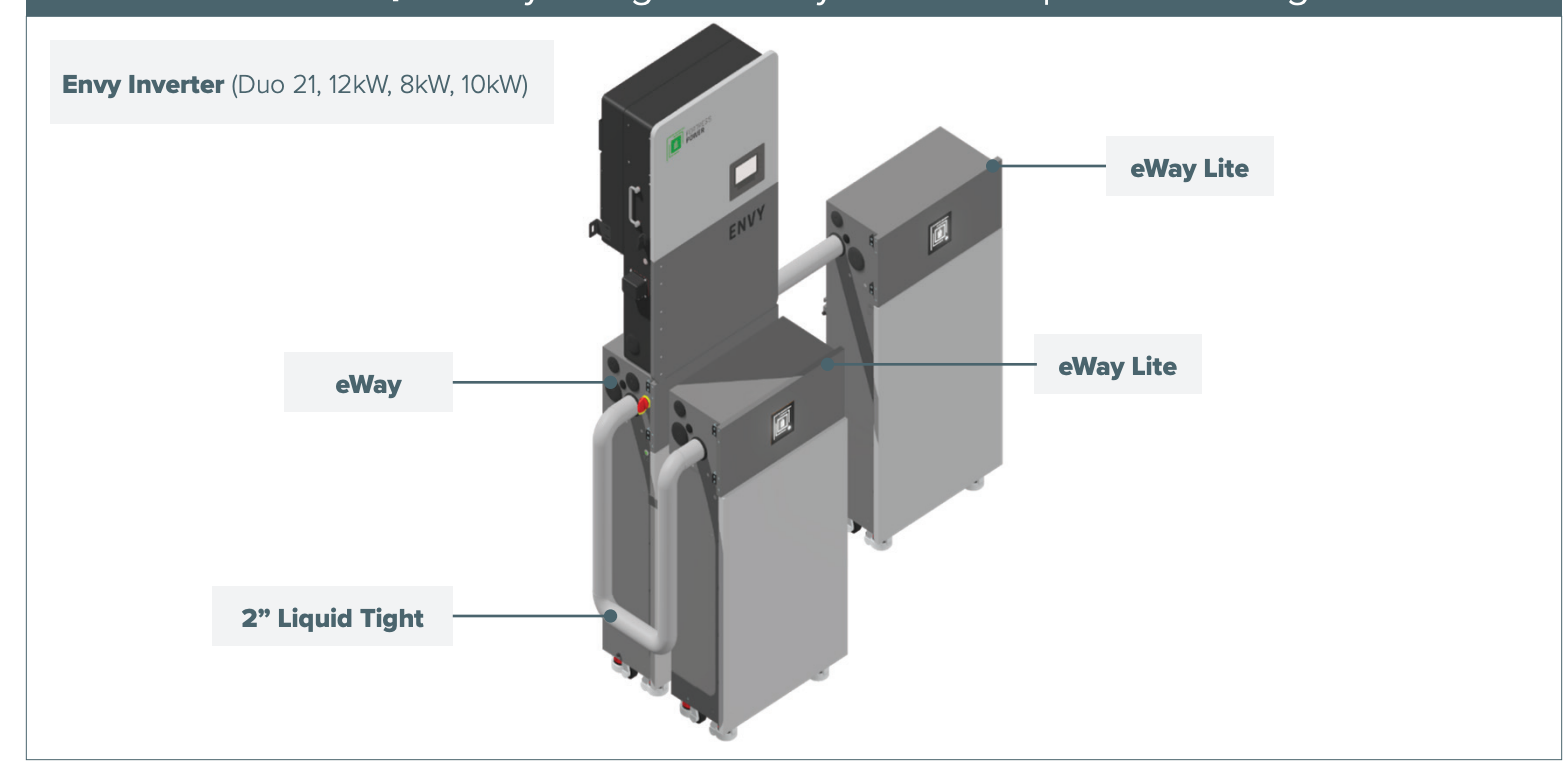

The Fortress Power eBoost eWay Lite is a dedicated wire management accessory designed for AC and DC cabling organization in single-unit eBoost energy storage installations. It provides a clean, protected, and code-compliant conduit path between the Envy inverter and the eBoost battery stack, enabling quick, floor-mounted installation and simplified service access.
What is the difference between an eWay and eWay Lite?
eWay: Three terminal 750A busbar. Used for paralleling multiple batteries. Includes Din rail bracket to mount the Guardian* (optional).
eWay Lite: One 250A Battery Terminal. Does not include din rail bracket to mount the Guardian*.
Key Benefits
Integrated Wireway: Manages both AC and DC conductors safely within a single enclosure, reducing clutter and installation time.
Streamlined Installation: Designed to mount directly beneath a single eBoost unit, eliminating the need for external raceways or junction boxes.
Clean Aesthetic: Conceals all wiring in a compact, durable metal housing, matching the eBoost enclosure design.
Safety & Compliance: UL-compliant design supports code-compliant routing for battery, inverter, and service wiring.
Special Technology
Built-in Busbar Integration: Includes a 750A-rated internal busbar interface, ensuring robust current handling for DC interconnects.
System Compatibility: Engineered for Fortress Power eBoost 16 kWh batteries and Envy series inverters, including Envy 8/10/12 kW and Envy Duo 21 models.
Warranty
10-Year Standard Warranty (Fortress Power).
Best Uses
Single-Unit eBoost Systems: Provides clean AC/DC wiring for stand-alone or single-stack installations.
Residential & Light Commercial: Ideal for indoor or covered outdoor applications requiring compact energy storage layouts.
Specifications Table
| Specification | Data |
|---|---|
| Product Name | Fortress Power eBoost eWay Lite |
| Function | AC & DC Wire Management System |
| Compatibility | For Single eBoost 16 kWh Unit; Envy Inverter Series |
| Mounting | Floor-Mounted (below eBoost stack) |
| Material | Powder-Coated Steel |
| Integrated Busbar | Built-in 750A DC Busbar (per eBoost spec) |
| Ingress Protection | IP65 (matches eBoost system) |
| Dimensions (W × D × H) | 22.84 × 9.52 × 10.18 in |
| Weight | 30 lb |
| Operating Temperature | −4 °F to 140 °F (−20 °C to 60 °C) |
| Warranty | 10 Years |
