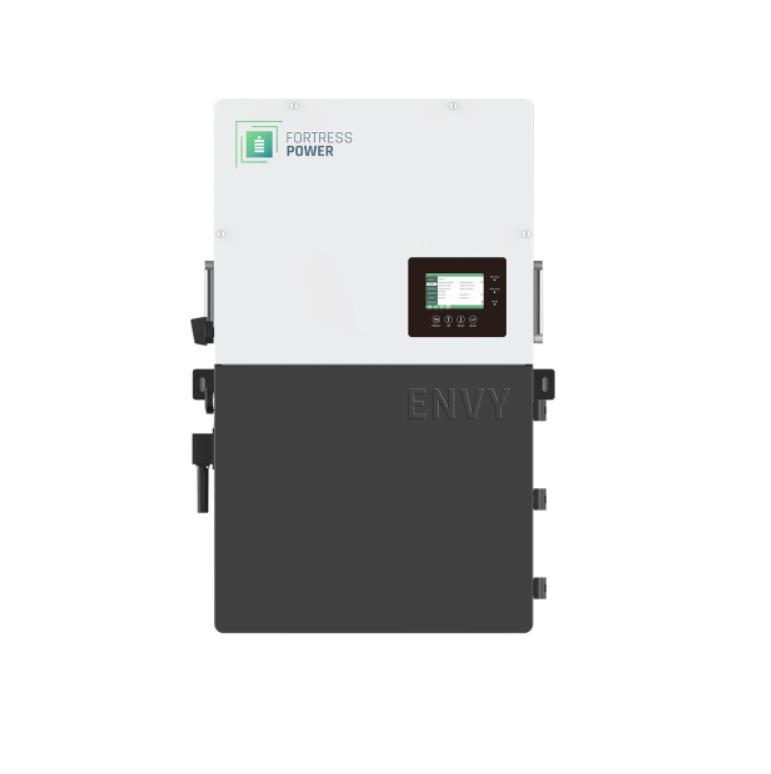

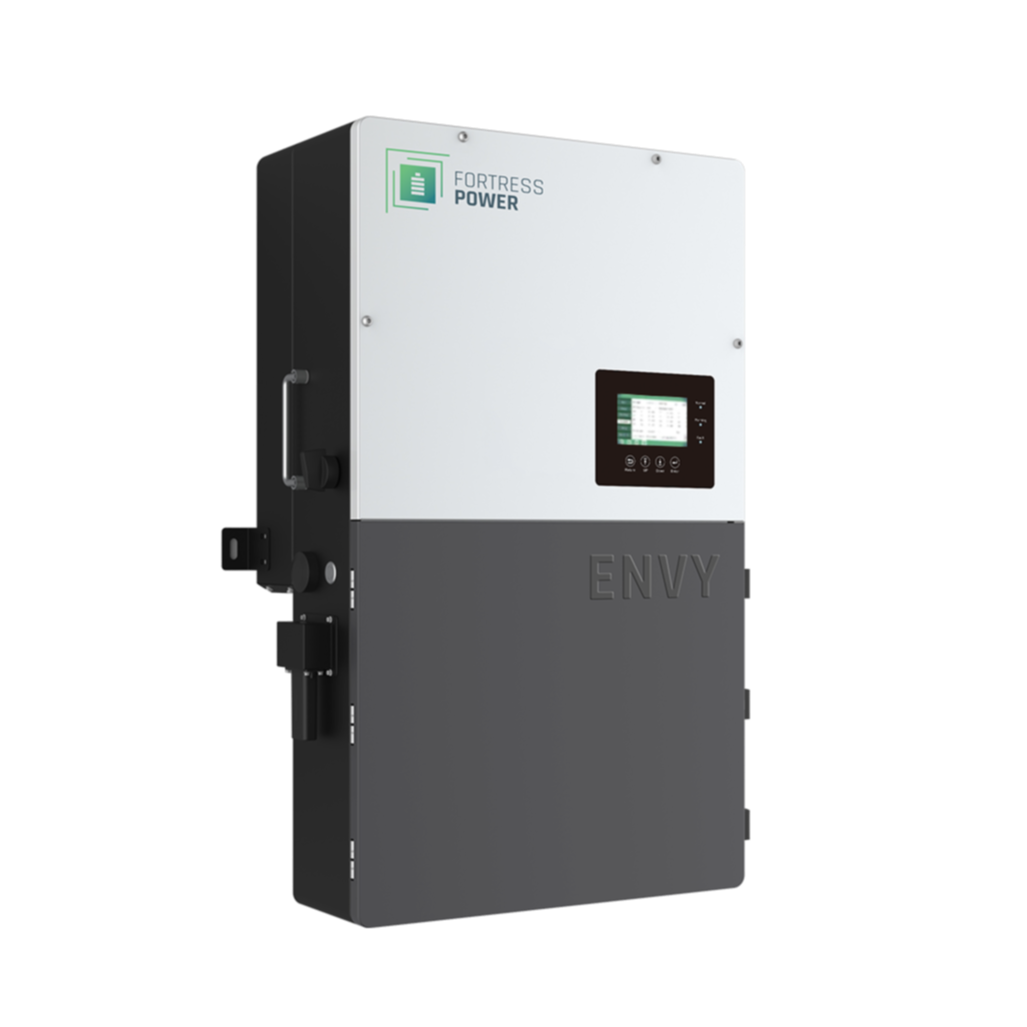

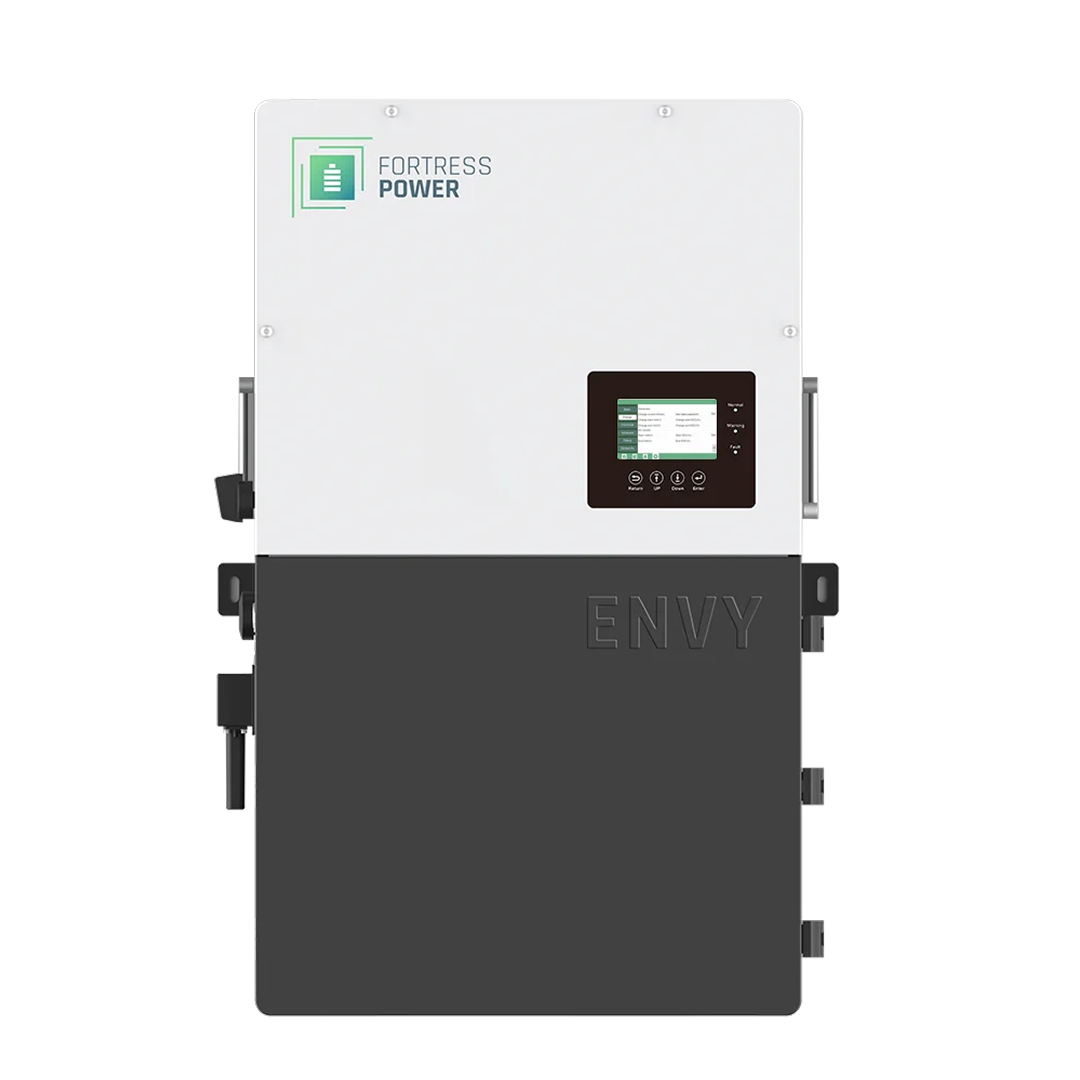

Fortress Power Envy True 12 kW Home Solar Storage Hybrid Inverter

Fortress Power Envy True 12 kW Home Solar Storage Hybrid Inverter

Regular price $5,669.71
Sale price $5,669.71 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: Envy True 12 kW

Fortress Power Envy True 12 kW Home Solar Storage Hybrid Inverter

Fortress Power Envy True 12 kW Home Solar Storage Hybrid Inverter

No reviews
Leave a Review
Regular price $5,669.71
Sale price $5,669.71 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Fortres Power
Weight
127 lb
Dimension
34.2 x 20.5 x 11.2 inches

Fortress Power Envy True 12 kW Home Solar Storage Hybrid Inverter

Maximize your solar potential with the Fortress Power Envy True 12 kW Hybrid Inverter, the all-in-one solution for both on-grid and off-grid energy management. This inverter is a game-changer for whole home backup, offering a seamless integration of solar generation, energy storage, and utility power.

  • All-In-One solution supporting on/off-grid, AC/DC coupling.
  • Whole home 200A AC Passthrough and Backup, ensuring power during outages.
  • Max. 18 kW PV power delivered to both battery and AC outputs.
  • 3 MPPT outputs for a max 21 kW PV array, enhancing solar capture.
  • Supports up to 10 units in parallel for extensive scalability.

Technology and Overview

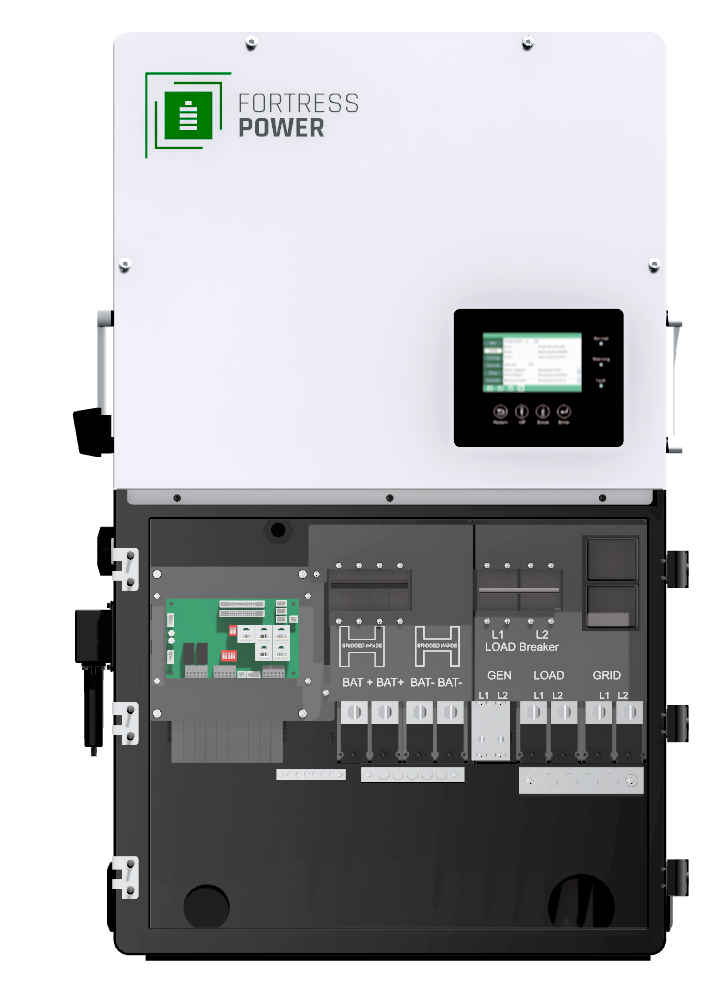

Equipped with advanced features like integrated AC & DC breakers and a built-in APsmart Rapid Shutdown Transmitter, the Envy True 12 kW simplifies installation and ensures safety and compliance.

Installation and Compatibility Overview

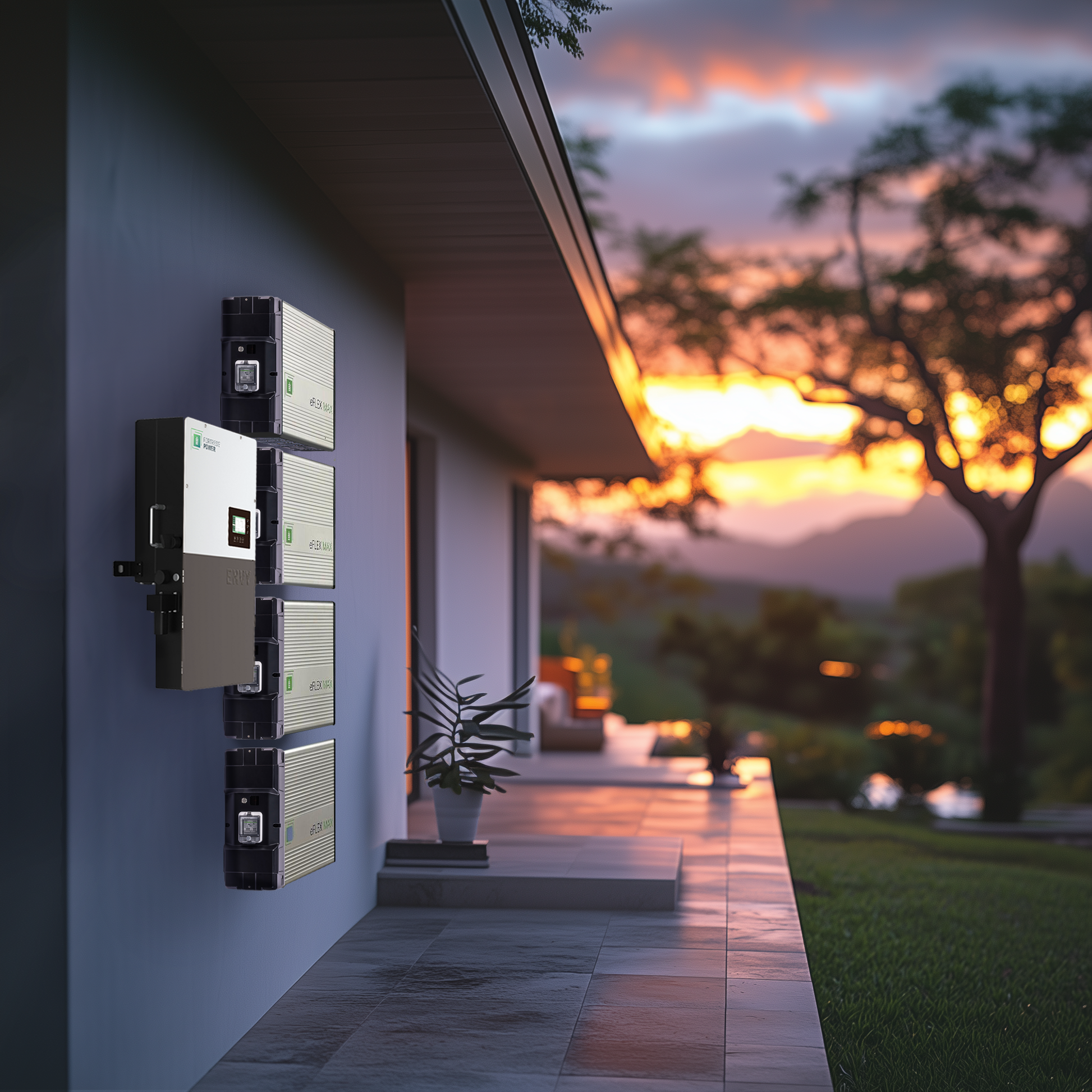

IP65 rated for both indoor and outdoor installation, the Envy True 12 kW offers flexibility in any setup, supporting a range of applications from backup to zero export and smart load management.

Benefits and Applications Overview

With its robust capacity and versatile applications, the Envy True 12 kW is ideal for homeowners seeking reliable, efficient, and intelligent energy management solutions.

Specifications

Specification Values
Model No. Envy True 12 kW
Max. DC Input Power for Single MPPT 12000W/7000W/7000W 1 x 12kW, 2 x 7kW
Max. PV Input Power 21000W
Max. PV Power Delivered to Battery & AC Outputs 18000W
DC Input Voltage Range 100V-600V (550V Max Recommended)
Nominal DC Input Voltage 360V
Full Power MPPT Voltage Range 230V-500V
Max. DC Input Current 25A/15A/15A
Max. Short Circuit Input Current 31A/19A/19A
MPPT Number/(Strings per MPPT) 3(2/1/1)
Continuous AC Power to Grid 12000W (240V) / 10400W (208V)
Continuous AC Power to Load with Grid or Generator 48000W (240V) AC Passthrough/ 21000W GEN
Nominal Output Voltage 120V/240V
Max. Continuous AC Current 50A @ 240V
Nominal AC Frequency 50Hz/60Hz
Max. Output Power 12000W (240V) / 10400W (208V)
Nominal Output Voltage 120V/240V
Nominal Output Frequency 50Hz/60Hz
Nominal Output Current 50A @ 240V
Peak Power 14kW 10 minutes / 16kW 5 minutes / 20kW 500ms
Switching Time <20 ms
Dedicated Auto-start Generator Port 100A Max / 90A Continuous
Compatible Battery Type Lithium and Lead Acid Batteries
Nominal Battery Voltage 48V
Battery Voltage Range 40V-60V
Maximum Charging/Discharging Current 250A
Maximum Charging/Discharging Power 12000W
MPPT Efficiency 99.90%
Max. Efficiency 97.50%
CEC Efficiency 96.50%
Anti-islanding Protection YES
DC Switch YES
Ingress Protect Degree NEMA 4X, IP65
SPD Protection YES
AFCI YES
RSD Built-in APsmart Transmitter
Also Compatible with Tigo Transmitters (refer to manual)
Dimensions 34.2 x 20.5 x 11.2 in (870 x 520 x 285 mm)
Weight 127 lbs (58 kg)
Display Color Touch LCD
Ambient Temperature Range -4 to 140 ° ( -20 to 60 °C)
Cooling FAN
Communication RS485/Wi-Fi/CAN
Certifications UL1741, UL1741SB, IEEE1547A, Rule 21, ISO-NE, FCC15 class B, HECO, CEC, Luma
Warranty 10 Years / Lead Acid, Lithium Batteries or Fortress Lithium Batteries
