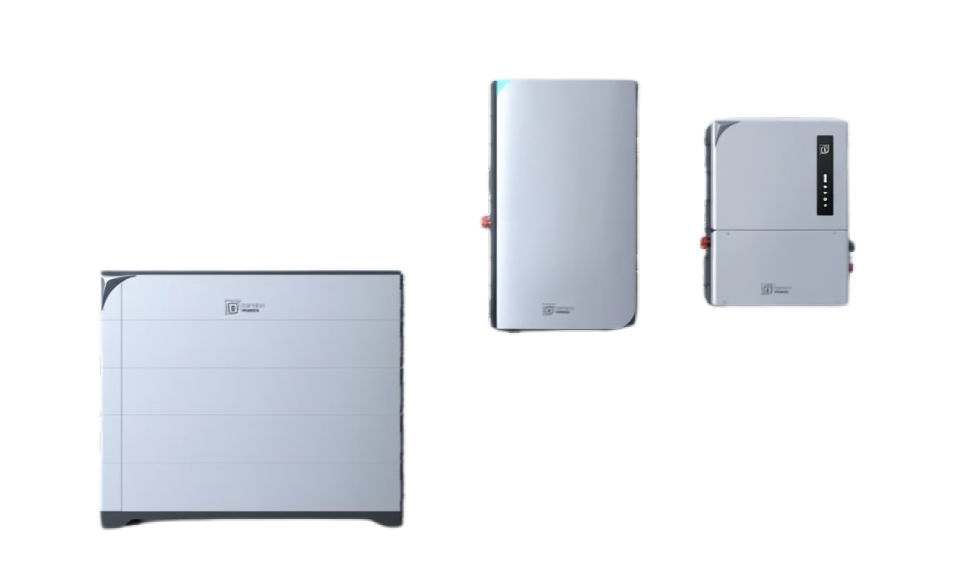

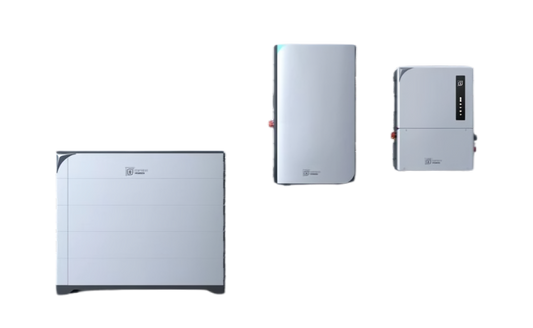

Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
MPN No: Avalon HV Pro ESS 7.6kW 24.5kWh
Contact us for Delivery Date
Out Of Stock
$20,998.69
Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
Regular price
$20,998.69
SOLD OUT
Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
Out Of Stock
MPN No: Avalon HV Pro ESS 7.6kW 24.5kWh
Regular price
$20,998.69
Contact us for Delivery Date
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$20,998.69
Fortress Power Avalon HV Pro ESS 7.6kW 24.5kWh Energy Storage System
Explore the pinnacle of home energy solutions with the Fortress Power Avalon HV Pro ESS, featuring a powerful 7.6kW hybrid inverter paired with a substantial 24.5kWh Lithium Iron Phosphate battery. This system redefines energy independence with its advanced storage capacity and efficiency.
- 7.6kW Hybrid Inverter designed for seamless integration with grid-tied and off-grid systems.
- Expansive 24.5kWh battery capacity ensures longer backup power and enhanced energy autonomy.
- Advanced Smart Energy Panel facilitates sophisticated energy management and system monitoring.
- Equipped with multiple MPPTs for optimal solar energy utilization.
- User-friendly management app provides easy access to system insights and controls.
Technology and Overview
Featuring state-of-the-art technology for efficient energy management and storage, ensuring reliability and optimal performance.
Installation and Compatibility Overview
With flexible installation options, this system is designed to meet a wide array of residential energy needs, providing a customizable and scalable solution.
Benefits and Applications Overview
The Avalon HV Pro ESS is ideal for maximizing solar investments, offering significant cost savings, and contributing to environmental sustainability.
Specifications
| Fortress Power Avalon HV Hybrid Inverter | Value |
| Model No. | AV-INV-010224-7.6 |
| Max. Input Voltage | 600 V |
| Rated Voltage | 380 V |
| Start-Up Voltage | 80 V |
| MPPT Voltage Range | 80 - 520 V A |
| Max. Input Current Per String | 16 A |
| Max. Short Circuit Current Per String | 25.6 A |
| Number Of MPPTs/Number Of Strings Per MPPT | 4/1 |
| Rated Output Power | 7.6 kW |
| Max. Apparent Output Power (Grid) | 7.6 kVa |
| Max. Apparent Output Power (Off-Grid) | 12.2 kVa, 10 sec |
| Back-Up Switch Time | <10 ms |
| Rated Output Voltage (L1-L2) | 240 V |
| Rated Output Voltage (L1/L2-N) | 120 V |
| Ac Output Voltage Range | 211 - 264 V |
| Rated Frequency | 60 Hz |
| Frequency Range | 55 - 65 Hz |
| Rated Output Current | 31.7 A |
| Max. Output Current (Grid) 31.7 A 47.5 A | 31.7 A |
| Max. Output Overcurrent, 10 Sec (Off-Grid) | 50.7 A |
| Max. Allowance Phase Configurations | 100% |
| Backup Support Configurations | whole-home and dedicated loads |
| Power Factor | >0.99 (0.8 leading - 0.8n lagging) |
| THD | <3% |
| Input Voltage Range | 211 - 264 V |
| Frequency Range | 58.8 - 61.2 Hz |
| PV Max. Efficiency | 97.60% |
| PV CEC Efficiency | 97.20% |
| Battery Charged By PV Max. Efficiency | 98.50% |
| Battery Charged/Discharged To AC Max. Efficiency | 97.00% |
| Ground Fault Detection | yes |
| Residual (Leakage) Current Detection | yes |
| Integrated AFCI (DC arc-Fault Circuit Protection) | yes |
| DC Reverse-Polarity Protection | yes (PV only) |
| Rapid Shutdown NEC 2017 | integrated sunspec-certified transmitter |
| RSD Receiver | APSmart or Tigo |
| Manual Inverter Bypass Switch | yes |
| Battery Voltage Range | 120-315 V |
| Maximum Charge/Discharge Current | 50 A |
| Battery Communication | CAN/RS485 |
| Dimensions (W*H*D) | 21.87*34.88*8.62 in (555.5*866*219mm) |
| Weight | 89.59 Ibs (40.64 kgs) |
| Mounting | wall mount |
| Topology | transformerless |
| Operation Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Ingress Protection | TYPE 4X (IP66) |
| Noise Emission | fan-less, <30 dB(A) |
| Cooling Method | natural convection |
| Maximum Elevation | 9,843 ft (3000m) |
| Compliance | UL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B |
| Generator Support | yes |
| Limited Warranty | 10 years |
| DC Connection | 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals |
| AC Connection | 1.5 in. (or 1.25 in. with reducer) knockouts for conduit (x3) on the side and bottom; Spring clamp terminals |
| Interface | Fortress App |
| Communication | RS485, Cellular, Wi-Fi, Optional: LAN |
| Fortress Power Avalon HV Bms And Battery Pack | Value |
| Model No. | AV- BATT - 010224-5 |
| Batery Modules | 5 |
| Nominal Voltage (V) | 240 |
| Operation Voltage Range (V) | 198.75 ~ 262.5 |
| Nominal Capacity (Ah) | 102 |
| Nominal Energy (Kwh) | 24.5 |
| Nominal Charge/Discharge Current (A) | 50 |
| Maximum Surge Rate | 80A, 15 sec |
| Maximum Units In Parallel | 4 |
| Limited Warranty (Years) | 15 |
| Cycle Life @ EOL 70% | 8,000 |
| Communication Protocol | CAN |
| Weight | 482.8 lbs (219 kg) |
| Dimensions (LxHxD) | 43 x 41.3 x 10.96 in (1092 x 1049 x 278.4 mm) |
| Ingress Protection | IP65 |
| Operation Temperature | charge: -10°C to 50°C discharge: -20°C to 55°C |
| Certifications | UL1973, UL9540. UL9540A, CEC, SGIP, AC156 |
| Transportation Classification | UN3480, Class 9 |
| Fortress Power Avalon Smart Energy Panel | Value |
| Model No. | AV-EP-010224 |
| AC Voltage | 120/240 V |
| Feed-In Type | split phase |
| Grid Frequency | 60 Hz |
| Current Rating | 200 A |
| Max Input Short Circuit Current | 10 kA, 15 kA, or 25 kA* |
| Overcurrent Protection Device | 100 - 200A; service entrance rated |
| AC Meter | non-RGM is standard, Revenue Grade Meter is optional |
| Primary Connectivity | ethernet / wifi / bluetooth |
| User Interface | Fortress App |
| Backup Transition | automatic transfer for backup |
| Expandability | supports up to 3 Avalon HV hybrid inverters, up to 35 Kw backup load |
| Limited Warranty | 5 years |
| Dimensions | 35.4 x 22.2 x 9.45in (900 x 565 x 240mm) |
| Weight | 55 lbs (25 kg) |
| Mounting Options | wall mount |
| Smart Load Control | 12 positions. Control up to 12 single phase loads (120V), 6 split phase loads (240V), or any combination, up to 50A** |
| Smart Load Control Modes | automatic, scheduled, or manual control |
| Ev Charging Smart Load Provision | up to 50A |
| Ac Coupling Smart Load Provision | up to 50A |
| Generator Smart Load Provision | up to 50A |
| Non-Backup Lug Connections | included |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | up to 100%, condensing |
| Maximum Elevation | 9,843 ft (3000m) |
| Environment | indoor and outdoor rated |
| Enclosure Type | NEMA 3R |
| Certifications | UL67, UL1741 PCS, UL869A, UL916 |
| Emissions | FCC Part 15, ICES 003 |
