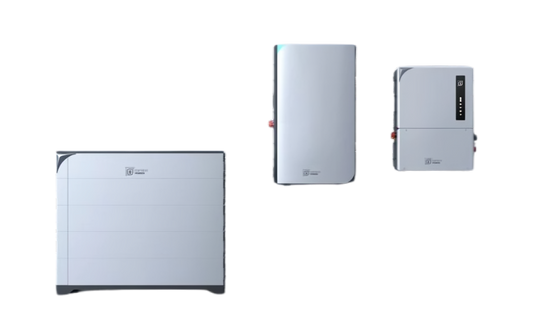

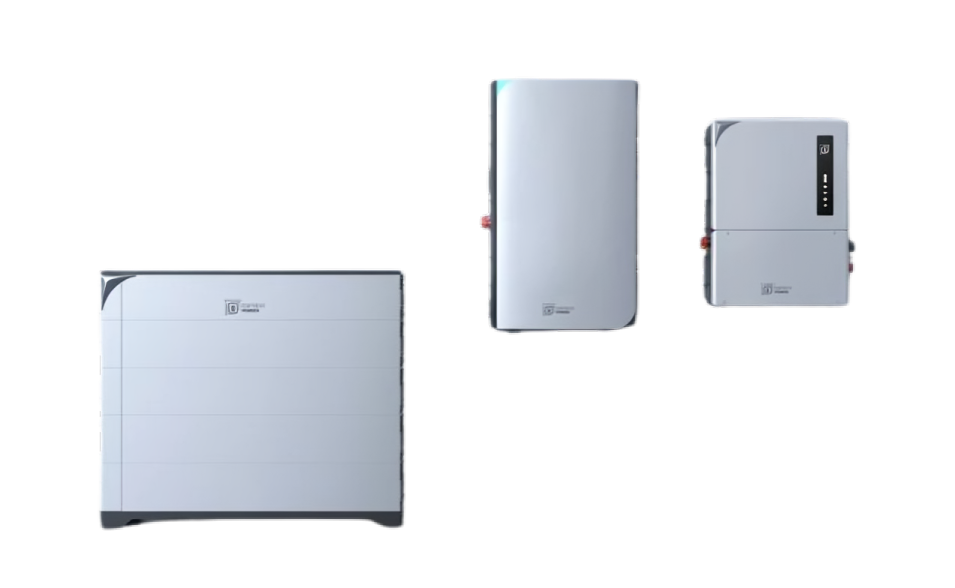

Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System

Introducing the Fortress Power Avalon HV Pro ESS, a comprehensive energy storage solution designed for advanced energy management. This system combines a smart energy panel, a hybrid inverter, and a BMS and battery pack, offering a versatile and scalable approach to home energy storage.

7.6kW Hybrid Inverter with dual functionality for both grid-tied and off-grid operations.
14.7kWh Lithium Iron Phosphate (LFP) battery pack for safe, efficient, and long-lasting energy storage.
Smart Energy Panel with integrated rapid shutdown and load management for up to 12 circuits.
4 MPPTs for optimal solar energy harvesting and flexible installation options.
User-friendly app for easy system monitoring and management.

Technology and Overview

Equipped with state-of-the-art technology, the Avalon HV Pro ESS offers seamless integration of solar energy generation, storage, and management, maximizing efficiency and reliability.

Installation and Compatibility Overview

Designed for both indoor and outdoor use, the system supports AC or DC coupling and is scalable, providing a customizable solution to meet energy needs.

Benefits and Applications Overview

This system not only enhances home energy independence but also contributes to significant cost savings and environmental sustainability, making it ideal for a wide range of applications.

Specifications

Fortress Power Avalon HV Hybrid Inverter	Value
Model No.	AV-INV-010224-7.6
Max. Input Voltage	600 V
Rated Voltage	380 V
Start-Up Voltage	80 V
MPPT Voltage Range	80 - 520 V A
Max. Input Current Per String	16 A
Max. Short Circuit Current Per String	25.6 A
Number Of MPPTs/Number Of Strings Per MPPT	4/1
Rated Output Power	7.6 kW
Max. Apparent Output Power (Grid)	7.6 kVa
Max. Apparent Output Power (Off-Grid)	12.2 kVa, 10 sec
Back-Up Switch Time	<10 ms
Rated Output Voltage (L1-L2)	240 V
Rated Output Voltage (L1/L2-N)	120 V
Ac Output Voltage Range	211 - 264 V
Rated Frequency	60 Hz
Frequency Range	55 - 65 Hz
Rated Output Current	31.7 A
Max. Output Current (Grid) 31.7 A 47.5 A	31.7 A
Max. Output Overcurrent, 10 Sec (Off-Grid)	50.7 A
Max. Allowance Phase Configurations	100%
Backup Support Configurations	whole-home and dedicated loads
Power Factor	>0.99 (0.8 leading - 0.8n lagging)
THD	<3%
Input Voltage Range	211 - 264 V
Frequency Range	58.8 - 61.2 Hz
PV Max. Efficiency	97.60%
PV CEC Efficiency	97.20%
Battery Charged By PV Max. Efficiency	98.50%
Battery Charged/Discharged To AC Max. Efficiency	97.00%
Ground Fault Detection	yes
Residual (Leakage) Current Detection	yes
Integrated AFCI (DC arc-Fault Circuit Protection)	yes
DC Reverse-Polarity Protection	yes (PV only)
Rapid Shutdown NEC 2017	integrated sunspec-certified transmitter
RSD Receiver	APSmart or Tigo
Manual Inverter Bypass Switch	yes
Battery Voltage Range	120-315 V
Maximum Charge/Discharge Current	50 A
Battery Communication	CAN/RS485
Dimensions (WHD)	21.8734.888.62 in (555.5866219mm)
Weight	89.59 Ibs (40.64 kgs)
Mounting	wall mount
Topology	transformerless
Operation Temperature Range	-13°F to 140°F (-25°C to 60°C)
Ingress Protection	TYPE 4X (IP66)
Noise Emission	fan-less, <30 dB(A)
Cooling Method	natural convection
Maximum Elevation	9,843 ft (3000m)
Compliance	UL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B
Generator Support	yes
Limited Warranty	10 years
DC Connection	1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals
AC Connection	1.5 in. (or 1.25 in. with reducer) knockouts for conduit (x3) on the side and bottom; Spring clamp terminals
Interface	Fortress App
Communication	RS485, Cellular, Wi-Fi, Optional: LAN

Fortress Power Avalon HV Bms And Battery Pack	Value
Model No.	AV- BATT - 010224-3
Battery Modules	3
Nominal Voltage (V)	144
Operation Voltage Range (V)	119.25 ~ 157.5
Nominal Capacity (Ah)	102
Nominal Energy (Kwh)	14.7
Nominal Charge/Discharge Current (A)	50
Maximum Surge Rate	80A, 15 sec
Maximum Units In Parallel	4
Limited Warranty (Years)	15
Cycle Life @ EOL 70%	8,000
Communication Protocol	CAN
Weight	302 lbs (137 kg)
Dimensions (LxHxD)	43 x 28.15 x 10.96 in (1092 x 715 x 278.4 mm)
Ingress Protection	IP65
Operation Temperature	charge: -10°C to 50°C discharge: -20°C to 55°C
_{Certifications}	UL1973, UL9540. UL9540A, CEC, SGIP, AC156
Transportation Classification	UN3480, Class 9

Fortress Power Avalon Smart Energy Panel	Value
Model No.	AV-EP-010224
AC Voltage	120/240 V
Feed-In Type	split phase
Grid Frequency	60 Hz
Current Rating	200 A
Max Input Short Circuit Current	10 kA, 15 kA, or 25 kA*
Overcurrent Protection Device	100 - 200A; service entrance rated
AC Meter	non-RGM is standard, Revenue Grade Meter is optional
Primary Connectivity	ethernet / wifi / bluetooth
User Interface	Fortress App
Backup Transition	automatic transfer for backup
Expandability	supports up to 3 Avalon HV hybrid inverters, up to 35 Kw backup load
Limited Warranty	5 years
Dimensions	35.4 x 22.2 x 9.45in (900 x 565 x 240mm)
Weight	55 lbs (25 kg)
Mounting Options	wall mount
Smart Load Control	12 positions. Control up to 12 single phase loads (120V), 6 split phase loads (240V), or any combination, up to 50A**
Smart Load Control Modes	automatic, scheduled, or manual control
Ev Charging Smart Load Provision	up to 50A
Ac Coupling Smart Load Provision	up to 50A
Generator Smart Load Provision	up to 50A
Non-Backup Lug Connections	included
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	up to 100%, condensing
Maximum Elevation	9,843 ft (3000m)
Environment	indoor and outdoor rated
Enclosure Type	NEMA 3R
Certifications	UL67, UL1741 PCS, UL869A, UL916
Emissions	FCC Part 15, ICES 003
