EzSolar FORTIS 100 PV Junction Box - Asphalt Shingle JB-F.100 (Updated JB-1.2)

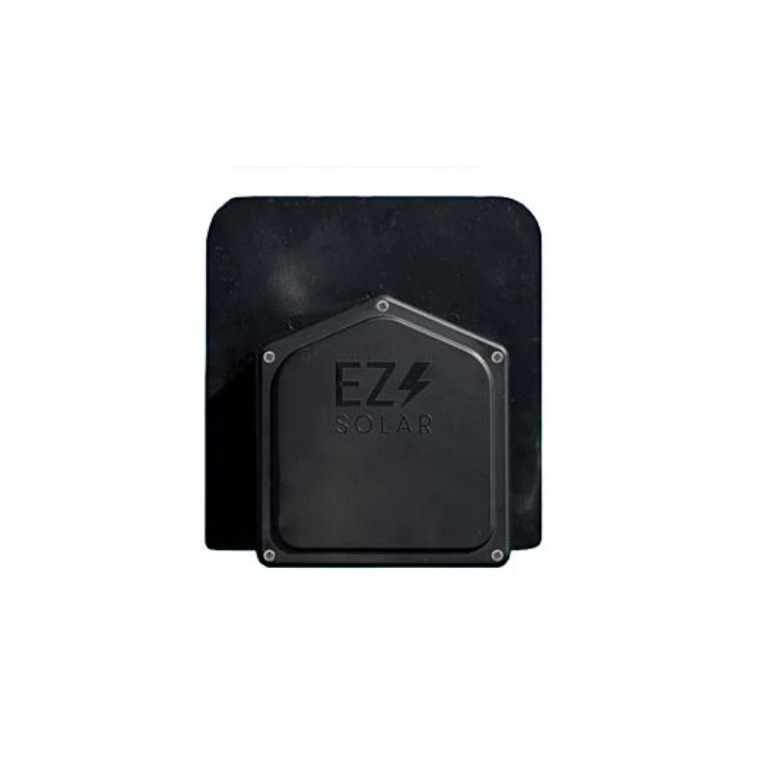

The EZ Solar JB-F.100 Fortis 100 is a roof-mounted PV junction box designed for composition and asphalt shingle roof applications.
Built for reliable field wiring and durable rooftop performance, this enclosure supports high-voltage solar installations while providing a Type 3R weather-resistant housing for demanding outdoor conditions.
With a maximum voltage rating of 1,500 VDC / 450 VAC, a maximum current capacity of 80 A, and a 100 in³ interior volume, the JB-F.100 is engineered to simplify conductor management and rooftop transitions in photovoltaic systems. It supports a wide wire range and is suitable for roof slopes from 2.5:12 to 12:12.
Key Technology
-
Type 3R Weather-Resistant Enclosure
Designed for outdoor rooftop use with reliable protection against environmental exposure. -
High-Voltage PV Compatibility
Supports solar applications up to 1,500 VDC / 450 VAC for modern PV systems. -
80 Amp Current Capacity
Fortis-60 and Fortis-100 models are rated for up to 80 amps. -
Flexible Wire Acceptance
Accommodates conductor sizes from 14 AWG to 6 AWG for installation versatility. -
Roof-Mount Optimized Design
Engineered specifically for composition and asphalt shingle roofs with a supported slope range of 2.5:12 to 12:12. -
100 in³ Interior Volume
Provides generous internal space for conductor routing and junction management.
Best Uses
-
PV Roof Junction Applications
Ideal for rooftop conductor transitions and junction points in photovoltaic systems. -
Composition Shingle Roof Installations
Designed specifically for composition and asphalt shingle roofing systems. -
Residential Solar Installations
Suitable for home solar arrays requiring a weather-resistant rooftop junction enclosure.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | EZ Solar Products |
| Model | JB-F.100 |
| Series | Fortis 100 |
| Product Type | PV Junction Box |
| Roof Type | Composition / Asphalt Shingle Roofs |
| Maximum Voltage | 1,500 VDC / 450 VAC |
| Maximum Current | 80 Amps |
| Allowable Wire Size | 14 AWG – 6 AWG |
| Enclosure Rating | Type 3R |
| Roof Slope Range | 2.5:12 – 12:12 |
| Max Side Wall Fitting Size | 1 in |
| Max Floor Pass-Through Fitting Size | 1 in |
| Ambient Operating Conditions | -35°C to +75°C |
| Interior Volume | 100 in³ |
| Compliance | UL1741, CSA C22.2 No. 290 |
| System Marking | Intertek Symbol, File #5029623 |
About EZ Solar Products:
EZ Solar Products manufactures solar electrical and mounting components designed to simplify installation and support reliable long-term field performance. Its Fortis series junction boxes are built for rooftop PV applications requiring durable enclosures and code-compliant conductor management.
Durable Rooftop Junction Management for PV Systems
The EZ Solar JB-F.100 Fortis 100 combines weather-resistant construction, high-voltage compatibility, and flexible conductor support to deliver dependable rooftop junction box performance for solar installations.
