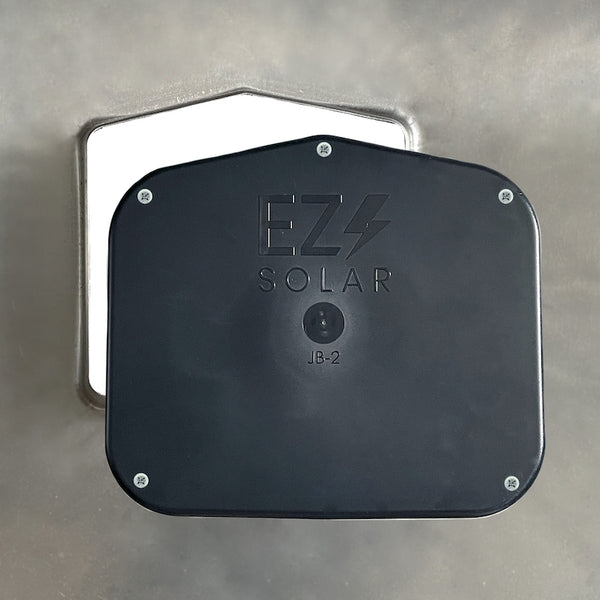

EZ Solar PV Junction Box for Composition Shingle Roofs JB-2
The EZ Solar JB-2 is a robust, NEMA 3R-rated junction box designed for clean, code-compliant PV wiring on composition/asphalt shingle rooftops. With universal flashing, weather-tight sealing, and flexible conduit fitting sizes, the JB-2 simplifies roof-level wire management while meeting UL 1741 standards.
Key Benefits
Roof-Ready Design: Optimized for sloped composition shingle roofs with a slope range of 2.5–12:12.
Weather-Tight Protection: NEMA 3R-rated polycarbonate enclosure with integrated flashing ensures long-term durability.
Flexible Conduit Options: Accepts up to 1” fittings on sidewalls or base for top or bottom cable entry.
UL Certified: UL 1741 compliant with Intertek certification (File #5015705).
Compact & Lightweight: Low-profile form factor with an easy-to-mount configuration reduces install time.
Special Technology
Universal Flashing Kit: Included flashing helps simplify waterproofing across a variety of roof types.
UV-Resistant Build: Polycarbonate housing with UV inhibitors designed for long-term exposure.
Warranty
Covered under EZ Solar’s limited product warranty.
Best Uses
Residential Solar Installations: Ideal for wire transition and junction connections on asphalt shingle rooftops.
NEC-Compliant Installations: Helps meet 2023 NEC rooftop junction requirements.
All-Weather Applications: Suitable for installs exposed to sun, rain, or temperature extremes.
Specifications Table
| Specification | Data |
|---|---|
| Model | JB-2 |
| Max Voltage | 1,000 Volts |
| Max Current | 120 Amps |
| Allowable Wire Sizes | 14 AWG – 6 AWG |
| Roof Slope Compatibility | 2.5 – 12:12 |
| Max Fitting Size (Sidewall / Floor) | 1” |
| Spacing Requirement | Minimum ½" between uninsulated live parts and fittings |
| Operating Temperature | -35°C to 75°C |
| Enclosure Rating | NEMA Type 3R |
| Compliance | UL 1741, Intertek File #5015705 |
| Dimensions (L × W × H) | 22 × 19 × 1.42 in |
| Weight | 2 lbs |
| Materials | Polycarbonate with UV inhibitors |
| Flashing Included | Yes (Universal) |
| Warranty | Limited (EZ Solar) |
About EZ Solar:
EZ Solar (founded 2019, Salt Lake City) makes installer‑friendly solar hardware—junction boxes and wire‑management tools—built from advanced polymers to resist UV and harsh weather. All products carry UL 1741 certification and a 25‑year warranty. Their innovative designs (e.g., 3‑sided wiring, CableLoc, GripClip, ZipLine) simplify installs and lower costs.
