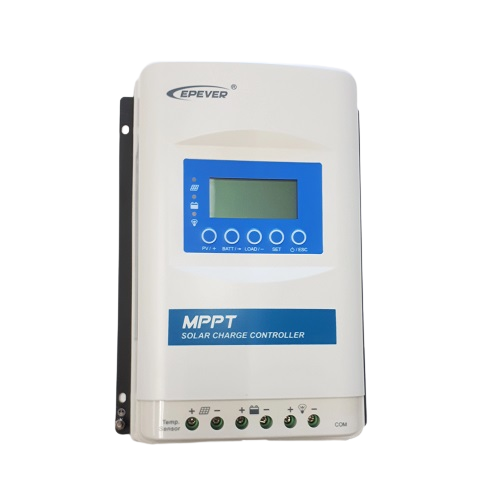

Epever XTRA 4215N-XDS2 40A MPPT Charge Controller

Epever XTRA 4215N-XDS2 40A MPPT Charge Controller

$165.18
$165.18

Epever XTRA 4215N-XDS2 40A MPPT Charge Controller

Epever XTRA 4215N-XDS2 40A MPPT Charge Controller

No reviews
$165.18
$165.18
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Schneider Electric
Weight
4.5 lb
Dimension
(LxWxH):10.03 x7.36x 2.9

Features:

  • MPPT tracking efficiency above 99.5%
  • Maximum charge conversion efficiency as high as 97.4%
  • Support lead-acid and lithium-ion batteries
  • Multiple load work modes
  • Charging power and current limitation function
  • High-temperature charging power derating function
  • Standard Modbus communication protocol with isolated RS485 interface
  • Real-time energy statistics function
  • Optional LCD display units (XDB1/XDS1/XDS2) and accessories
  • IP33 ingress protection design
  • CE(LVD IEC62109,EMC EN3/1-6-61000)and ROHS,ETL(UL-1741:2010 and Canadian CSA C22.2-No.107.1.01),FCC Class B Part 15 Compliant,IEC62509:2010

Models

XTRA2210N-XDS2

XTRA3210N-XDS2

XTRA4215N-XDS2

Nominal system voltage

12/24V

Battery type

Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User

Rated charge current

20A

30A

40A

Rated discharge current

20A

30A

40A

Rated charge power

260W/12V

520W/24V

390W/12V

780W/24V

520W/12V

1040W/24V

Max. PV open circuit voltage

100V (At minimum operating environment temperature)

92V (At 25? environment temperature)

150V (At minimum operating environment temperature)

138V (At 25? environment temperature)

MPP voltage range

(Battery voltage+2V)~72V

(Battery voltage+2V)~108V

Equalization voltage

Sealed:14.6V,Flooded:14.8V,User-defined:9-17V

Boost voltage

Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V

Float voltage

Gel/Sealed/Flooded:13.8V,User-defined:9-17V

Enclosure

IP33

Communication interface

RS485(RJ45)

Grounding

Common negative

Dimensions(LxWxH)(mm)

175×143×48

230×165×63

255×187×75.7

Net weight

0.57kg

1.31kg

2.07kg
