Enphase X-IQ-AM1-240-5 IQ Combiner 5 with IQ Gateway

Enphase X-IQ-AM1-240-5 IQ Combiner 5 with IQ Gateway

Regular price $918
Regular price $918.00 -0% Sale price $918
LESS THAN 50
Leave a Review

Enphase X-IQ-AM1-240-5 IQ Combiner 5 with IQ Gateway

Enphase X-IQ-AM1-240-5 IQ Combiner 5 with IQ Gateway

Enphase
MPN No: X-IQ-AM1-240-5
In Stock
Regular price $918
Regular price $918.00 -0% Sale price $918

1
2
3
4
5
6

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Estimated arrival on Dec 10 - 13 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $918
Regular price $918.00 -0% Sale price $918

Specifications

.PDF
Datasheet
.PDF
Datasheet

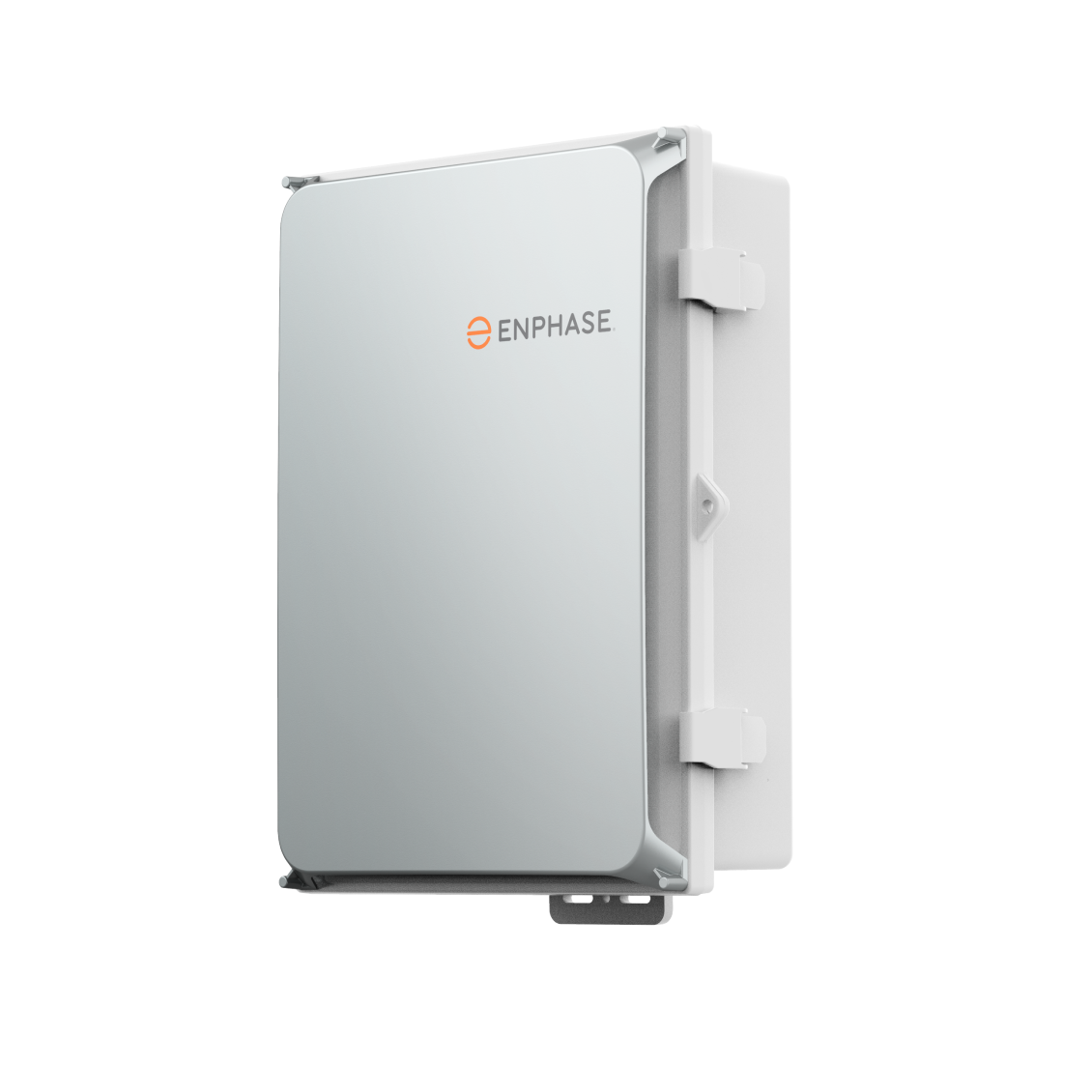

Enphase IQ X-IQ-AM1-240-5 Combiner-5 with IQ Gateway

The IQ Combiner 5/5C consolidates interconnection equipment into a single enclosure and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. IQ Combiner 5/5C uses wired control communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.

The IQ Combiner 5/5C, along with IQ Series Microinverters, IQ System Controller 3/3G, and IQ Battery 5P provides you with a complete grid-agnostic Enphase Energy System.

  • Integrated IQ Gateway for superior communication and control.
  • Supports Wi-Fi, Ethernet, or cellular connectivity for versatile networking options.
  • Easy installation with mountable design and supports various conduit entries.
  • Durable NRTL-certified NEMA type 3R enclosure with a 5-year limited warranty.
  • Comprehensive energy management with remote maintenance capabilities.

Technology and Overview

The Enphase IQ X-IQ-AM1-240-5 utilizes advanced technology to facilitate efficient energy management and monitoring. It includes a production metering feature with revenue grade accuracy and supports the integration of IQ Series Microinverters, IQ System Controller 3/3G, and IQ Battery 5P, making it a pivotal component of a complete grid-agnostic Enphase Energy System.

Installation and Compatibility Overview

This combiner is engineered for ease of installation, supporting bottom, back, and side conduit entry, and is compatible with up to four 2-pole branch circuits for 240 VAC plug-in breakers. It's designed to work seamlessly with Enphase's IQ ecosystem, including microinverters and battery systems, ensuring a versatile fit for various residential solar setups.

Benefits and Applications Overview

By leveraging the Enphase IQ X-IQ-AM1-240-5, users can achieve significant cost savings, improved energy efficiency, and a reduced environmental impact. It's suitable for a wide range of applications, including residential solar installations seeking to maximize energy production and simplify system management.

Specifications



Specification Value
IQ Combiner 5 (X-IQ-AM1-240-5) IQ Combiner 5 with IQ Gateway printed circuit board for integrated revenue grade PV production metering (ANSIC12.20 ±0.5%), consumption monitoring (± 2.5%) and IQ Battery monitoring (±2.5%). Includes a silver solar shield to deflect heat
Rating 80 A
System voltage 120/240 VAC, 60 Hz
Busbar rating 125 A
Fault curent rating 10 kAIC
Maximum continuous current rating (input from PV/storage) 64 A
Branch circuits (solar and/or storage) Up to four 2-pole Eaton BR series distributed generation (DG) breakers only (not included)
Maximum total branch circuit breaker rating (input) 80 A of distributed generation/95 A with IQ Gateway breaker included
IQ Gateway breaker 10 A or 15 A rating GE/Siemens/Eaton included
Production metering CT 200 A solid core pre-installed and wired to IQ Gateway
Consumption monitoring CT (CT-200-CLAMP) A pair of 200 A clamp-style current transformers is included with the box
IQ Battery metering CT 200 A  clamp-style current transformer for IQ Battery metering, included with the box
Dimensions (WxHxD) 37.5 cm x 49.5 cm x 16.8 cm (14.75"" x 19.5"" x 6.63""). Height is 21.06"" (53.5 cm) with mounting
brackets
Weight 7.5 kg (16.5 lbs)
Ambient temperature range -40°C to 46°C (-40°F to 115°F)
Cooling Natural convection, plus heat shield
Enclosure environmental rating Outdoor, NRTL-certified, NEMA type 3R, polycarbonate construction
Wire sizes •      20 A to 50 A breaker inputs: 14 to 4 AWG copper conductors
•      60 A breaker branch input: 4 to 1/0 AWG copper conductors
•      Main lug combined output: 10 to 2/0 AWG copper conductors
•      Neutral and ground: 14 to 1/0 copper conductors
•      Always follow local code requirements for conductor sizing
Communication (In-premise connectivity) Built-in CTRL board for wired communication with IQ Battery 5P and IQ System Controller 3/3G. Integrated Power Line Communication for IQ Series Microinverters
Altitude Up to 2,600 meters (8,530 feet)
Dimensions (WxHxD) 37.5 cm x 49.5 cm x 16.8 cm (14.75"" x 19.5"" x 6.63""). Height is 21.06"" (53.5 cm) with mounting
brackets
Weight 7.5 kg (16.5 lbs)
Ambient temperature range -40°C to 46°C (-40°F to 115°F)
Cooling Natural convection, plus heat shield
Enclosure environmental rating Outdoor, NRTL-certified, NEMA type 3R, polycarbonate construction
Wire sizes •      20 A to 50 A breaker inputs: 14 to 4 AWG copper conductors
•      60 A breaker branch input: 4 to 1/0 AWG copper conductors
•      Main lug combined output: 10 to 2/0 AWG copper conductors
•      Neutral and ground: 14 to 1/0 copper conductors
•      Always follow local code requirements for conductor sizing
Communication (In-premise connectivity) Built-in CTRL board for wired communication with IQ Battery 5P and IQ System Controller 3/3G. Integrated Power Line Communication for IQ Series Microinverters
COMPATIBILITY  •      IQ System Controller 3/3G - SC200D111C240US01, SC200G111C240US01
•      IQ Battery 5P - IQBATTERY-5P-1P-NA
•      Microinverter - IQ6, IQ7, and IQ8 Series Microinverters
Warranty 5 Year Limited Warranty
Compliance UL1741 listed
