Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
MPN No: IQ8X-80-M-DOM-US
Expected ship date May 25 - Jun 01
In Stock
$206.05
Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
Regular price
$206.05
1110 IN STOCK
Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
Available
MPN No: IQ8X-80-M-DOM-US
Regular price
$206.05
Expected ship date May 25 - Jun 01
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$206.05
Enphase IQ8X Microinverter (MC4 Split-Phase) – IQ8X-80-M-DOM-US
MPN No:
IQ8X-80-M-DOM-US
Expected ship date May 25 - Jun 01

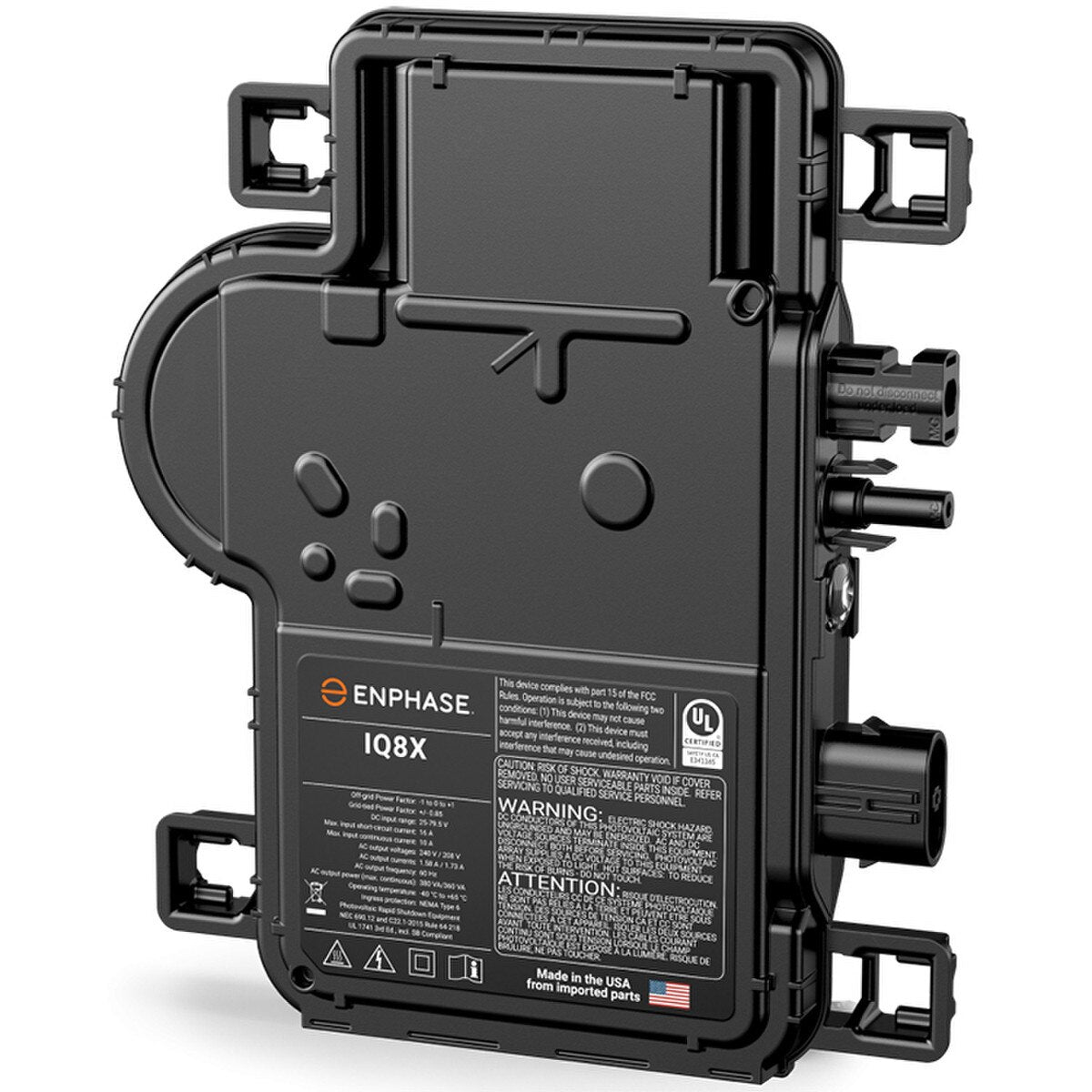

The Enphase IQ8X-80-M-DOM-US Microinverter is a high-voltage member of the IQ8 Series, engineered for next-generation PV modules with higher cell counts and elevated DC voltage.
Designed with microgrid-forming capability and split-phase power conversion, this microinverter delivers reliable performance in both grid-tied and backup-ready solar systems.
Optimized for advanced residential solar installations, the IQ8X supports high-efficiency energy conversion, rapid response to grid conditions, and seamless integration with the Enphase Energy System, including IQ Gateway, IQ Battery, and monitoring via the Enphase App.
Product Note: This SKU is made in the USA, and the PCBA, Electrical Parts, and Enclosure are domestically manufactured to meet the requirements of eligibility to be considered for the ITC domestic content bonus adder.
This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.
Key Technology
-
High-Voltage Module Support
Designed for modern PV modules with higher voltage and cell counts such as 80, 88, and 96 half-cell configurations. -
IQ8 Microgrid-Forming Technology
Supports both grid-tied and off-grid operation with fast response to load and grid changes. -
High Output Performance
Delivers up to 384 VA peak output power with strong continuous output for modern solar systems. -
Wide MPPT Voltage Range
Features an extended MPPT range of 43V – 60V to support higher voltage modules. -
High Efficiency Conversion
Achieves up to 97.3% peak efficiency for optimized energy harvest. -
Durable Outdoor Design
Built with a NEMA Type 6 enclosure, corrosion-resistant materials, and natural convection cooling for long-term reliability.
Best Uses
-
Residential Solar Systems
Ideal for high-efficiency rooftop installations using advanced PV modules. -
High-Voltage Module Applications
Designed for next-generation modules with higher voltage and cell counts. -
Backup & Hybrid Systems
Supports resilient energy systems when paired with Enphase storage and control solutions.
Warranty
- Manufacturer: Enphase Energy
- Warranty: Up to 25-Year Limited Warranty
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Enphase Energy |
| Model | IQ8X-80-M-DOM-US |
| Product Type | Microinverter |
| Peak Output Power | 384 VA |
| Maximum Continuous Output Power | 380 VA @ 240V / 360 VA @ 208V |
| Nominal Voltage | 240V Split Phase / 208V Single Phase |
| Voltage Range | 211 – 264 V / 183 – 229 V |
| Maximum Continuous Output Current | 1.58 A / 1.73 A |
| Module Pairing Range | 320W – 540W |
| MPPT Voltage Range | 43 – 60 V |
| Operating Range | 25 – 79.5 V |
| Start Voltage | 30 V |
| Maximum Input DC Voltage | 79.5 V |
| Maximum Continuous DC Current | 10 A |
| Maximum Input Short-Circuit Current | 16 A |
| Maximum Module Isc | 13 A |
| Peak Efficiency | 97.3% |
| CEC Weighted Efficiency | 96.5% |
| DC Connector Type | Stäubli MC4 |
| Dimensions | 8.3 × 6.9 × 1.2 in |
| Weight | 2.43 lb |
| Cooling | Natural Convection – No Fans |
| Enclosure | Class II Double-Insulated, NEMA Type 6 |
| Environmental Rating | Outdoor Rated |
| Operating Temperature | -40°C to 65°C |
| Humidity | 4% to 100% Condensing |
| Compliance | UL 1741-SA/SB, IEEE 1547:2018, UL 62109-1, FCC Part 15 Class B |
| Rapid Shutdown | UL Listed PV Rapid Shutdown Equipment |
About Enphase Energy:
Enphase Energy is a global leader in solar microinverter technology and energy management systems. Its IQ Series products deliver intelligent module-level performance, advanced grid functionality, and long-term reliability for modern solar installations.
High-Voltage Microinverter for Next-Generation Solar Modules
The Enphase IQ8X-80-M-DOM-US provides advanced performance, high-voltage compatibility, and durable construction, making it an excellent choice for modern, high-efficiency solar systems.
