Enphase IQ7+ Microinverter IQ7PLUS-72-2-US
IQ7PLUS-72-2-US
Enphase IQ7+ Microinverter IQ7PLUS-72-2-US

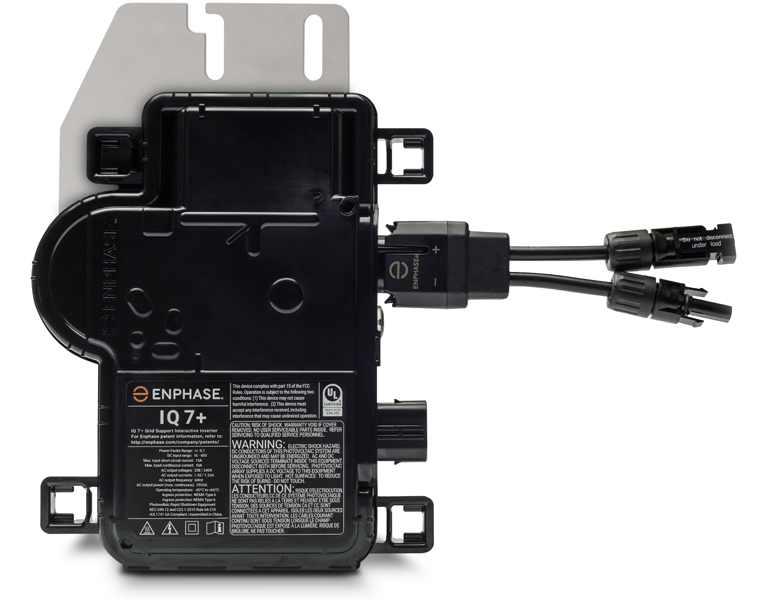

The Enphase IQ7PLUS-72-2-US microinverter is designed for high-efficiency 60- and 72-cell solar panels. Delivering 295W of continuous output power, it supports module ratings up to 440W. With built-in rapid shutdown, smart grid compliance, and Power Line Communication (PLC), the IQ7PLUS integrates with the Enphase Enlighten monitoring platform, IQ Combiner, and IQ Gateway. Ideal for residential and small commercial installations, it ensures energy reliability, safety, and scalable performance.
Key Benefits
295W Continuous Output: Optimized for modern high-output solar panels up to 440W.
60/72-Cell Module Compatibility: Flexible design supports a wide range of PV modules.
Built-In Rapid Shutdown: Meets NEC 690.12 compliance without external disconnect hardware.
Smart App Monitoring: Delivers real-time module-level performance data through Enphase Enlighten.
Compact and Lightweight: Quick installation with minimal roof impact and durable design.
Special Technology
Smart Grid Features: IEEE 1547-compliant functions such as volt/VAR, frequency/watt, and ride-through capabilities.
MPPT Efficiency: Advanced tracking maximizes solar harvest in various lighting conditions.
PLC Communication: Uses Power Line Communication to connect with IQ Gateway, eliminating separate data cables.
NEMA 6 Enclosure: Outdoor-rated and ruggedized for extreme weather resistance.
Software-Defined Architecture: Enables over-the-air firmware upgrades for enhanced functionality and compliance.
Warranty
The Enphase IQ7PLUS-72-2-US microinverter comes with a 25-year limited warranty when installed by an Enphase Certified Installer, providing peace of mind and long-term system performance.
Best Use
Residential Solar Systems: Optimized for rooftops using 60- or 72-cell panels up to 440W.
Battery-Ready Homes: Integrates seamlessly with Enphase IQ Battery and System Controller.
Smart Energy Projects: Ideal for projects requiring module-level data and system flexibility.
NEC-Compliant Installations: Built-in rapid shutdown functionality meets U.S. safety codes.
Specifications Table
| Specification | Data |
|---|---|
| Model | IQ7PLUS-72-2-US |
| AC Output Power | 295W |
| Nominal AC Voltage | 240V |
| Compatible Modules | 60 & 72-Cell Panels (Up to 440W) |
| MPPT Voltage Range | 27 – 45V |
| DC Input Voltage Range | 16 – 60V |
| CEC Weighted Efficiency | 97.0% |
| Rapid Shutdown | Integrated (NEC 690.12 Compliant) |
| Monitoring | Enphase Enlighten via IQ Gateway |
| Communication | Power Line Communication (PLC) |
| Enclosure Rating | NEMA 6 (Outdoor Rated) |
| Dimensions (L × W × H) | 8.35 in x 6.89 in x 1.19 in |
| Weight | ~2.38 lbs |
| Certifications | UL 1741 SA, IEEE 1547 |
| Warranty | 25-Year Limited Warranty |
About Enphase Energy:
Enphase Energy is a global leader in solar energy solutions, renowned for its microinverter technology that maximizes solar panel performance and reliability. Enphase offers integrated systems that combine solar, storage, and energy management for optimized home energy use.
