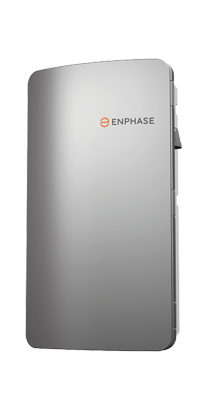

Enphase IQ System Controller 3M SC200D111CMC1US01
The Enphase IQ System Controller 3M (SC200D111CMC1US01) enables seamless grid interconnection, battery management, and whole-home backup functionality for residential solar-plus-storage systems.
Supporting IQ Battery 5P and IQ Meter Collar integration, it provides flexible, code-compliant energy management without the need for load relocation or service rewiring.
Key Benefits
Whole Home Backup: Works with IQ Meter Collar to simplify installations in homes with meter-main combo panels.
Flexible Storage Support: Supports up to 40 kWh of batteries (without PCS) and 80 kWh (with PCS), and up to 30.7 kVA of PV.
Smart Integration: Pre-installed quad breaker, neutral-forming transformer (NFT), and color-coded shutdown wiring simplify configuration.
Enhanced Safety: Built-in System Shutdown Switch acts as a rapid shutdown initiator and grid disconnection tool.
Outdoor Ready: NEMA 3R-rated polycarbonate enclosure with natural convection cooling for reliable operation in harsh environments.
Special Technology
Neutral-Forming Transformer: Delivers 3,600 VA continuous rated power with built-in 40 A breakers and peak unbalanced current support.
Hold-Down Compatible: Integrated mounting for breakers eliminates the need for additional hold-down kits.
Auxiliary Contact: 24V dry contact supports load control, excess PV control, or generator signal integration.
Warranty
10-year limited warranty on IQ System Controller; 5 years on System Shutdown Switch (EP200G-NA-02-RSD).
Best Uses
Grid-Tied + Storage Installations: Streamlines residential solar and battery system designs with full-home backup capability.
Code-Compliant Upgrades: Ideal for meter-main combo homes seeking NEC-compliant whole-home backup without rewiring.
IQ Ecosystem Integration: Designed for seamless operation with IQ Battery 5P, IQ8 Microinverters, IQ Combiner, and IQ Meter Collar.
Specifications Table
| Specification | Data |
|---|---|
| Model | SC200D111CMC1US01 |
| Nominal Voltage (L-L / L-N) | 240 V / 120 V ±20% |
| Nominal Frequency | 60 Hz ±0.1 Hz |
| Max Input/Output Current | 160 A (3 × 64 A) |
| Short Circuit Interrupt Rating | 22 kA |
| Internal Busbar Rating | 200 A |
| Transformer Output | 3,600 VA continuous / 80 A peak @ 120 V |
| Enclosure Rating | NEMA 3R, Outdoor |
| Cooling Method | Natural convection with heat shield |
| Dimensions (W × H × D) | 19.7 × 36 × 9.7 in |
| Weight | 88.6 lbs |
| Max Altitude | 8,200 ft (2,500 m) |
| Communication Compatibility | IQ Gateway, IQ Meter Collar, COMMS-KIT-02 |
| Microinverter Support | IQ6, IQ7, IQ8 |
| Battery Compatibility | IQ Battery 5P |
| Certifications | UL 1741, UL 1741 SA/SB, IEEE 1547, FCC Part 15 |
| Warranty | 10 Years (5 Years RSD) |
