Enphase IQ Meter Collar MC-200-011-V01

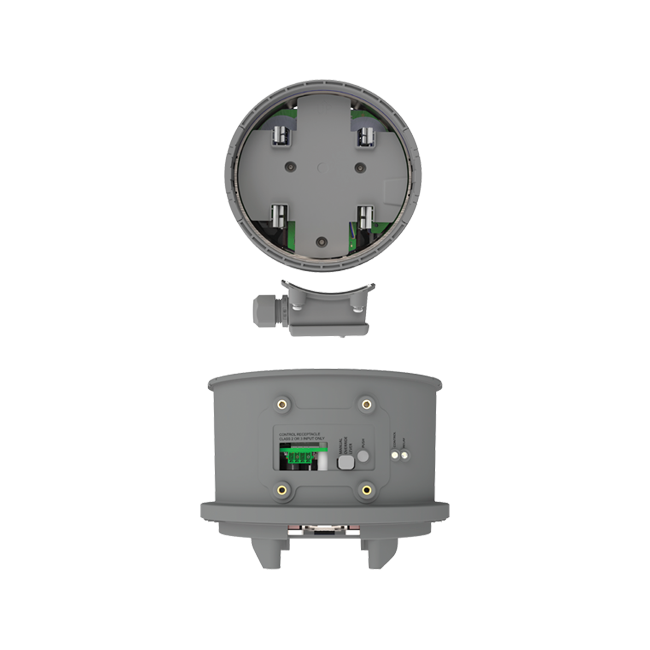

The Enphase IQ Meter Collar (MPN: MC-200-011-V01) is a 200A-rated meter socket adapter with an integrated microgrid interconnect device (MID) and energy meter. It simplifies whole home backup, supports grid compliance, and integrates seamlessly with Enphase Energy Systems 3.0 and 4.0.
Key Benefits
Streamlined Installation: Lightweight and easy to install with included seal ring, wiring, and mounting accessories.
Whole-Home Backup Ready: Integrated MID enables microgrid control, lowering installation complexity and cost.
Highly Accurate Metering: Built-in ±0.5% accurate energy meter supports precise consumption tracking.
Smart Commissioning: Remote setup and firmware updates reduce site visits and adapt to changing grid requirements.
Advanced Grid Compliance: Meets UL 1741-SA/SB, IEEE 1547:2018, CA Rule 21, PREPA, and HEI SRD V2.0 standards.
Special Technology
Control Interfaces: Manual override lever, push-button control, and LED status indicators for MID operations.
Integrated Power Supply: Built-in AC-DC supply re-energizes MID when utility is restored—even if battery is depleted.
Remote Monitoring Ready: Compatible with IQ Gateway and Enphase Communications Kits for system visibility.
Warranty
Backed by a 15-year limited warranty from Enphase.
Best Uses
Whole Home Backup: Key component for grid-to-backup transitions in residential Enphase Energy Systems.
Retrofit or New Installations: Works at the service entrance or downstream in existing meter socket panels.
Code-Compliant Systems: Supports installations requiring ANSI Form 2S interface and NEMA 3R enclosure ratings.
Specifications Table
| Specification | Data |
|---|---|
| Model | MC-200-011-V01 |
| Nominal Grid Supply | 120/240 VAC, split-phase |
| Nominal Frequency | 60 Hz |
| Maximum Continuous Current | 200 A |
| Short-Circuit Withstand | 22 kA |
| Overvoltage Category | Category IV (service entrance-rated) |
| Meter Accuracy | ±0.5% |
| Meter Socket Interface | ANSI Form 2S, 200 A, ringless or ring type |
| Cooling | Forced convection |
| Enclosure Rating | NEMA Type 3R (Indoor/Outdoor) |
| Ambient Temperature | -40°F to 122°F (-40°C to 50°C) |
| Maximum Altitude | 8,200 ft (2,500 m) |
| Weight5 | 5 lbs |
| Compliance | UL 414, UL 1741 SA/SB, IEEE 1547:2018 |
| Control Interface | 4-wire 24 VDC signaling, push-button, manual override lever |
| Warranty | 15 Years |
