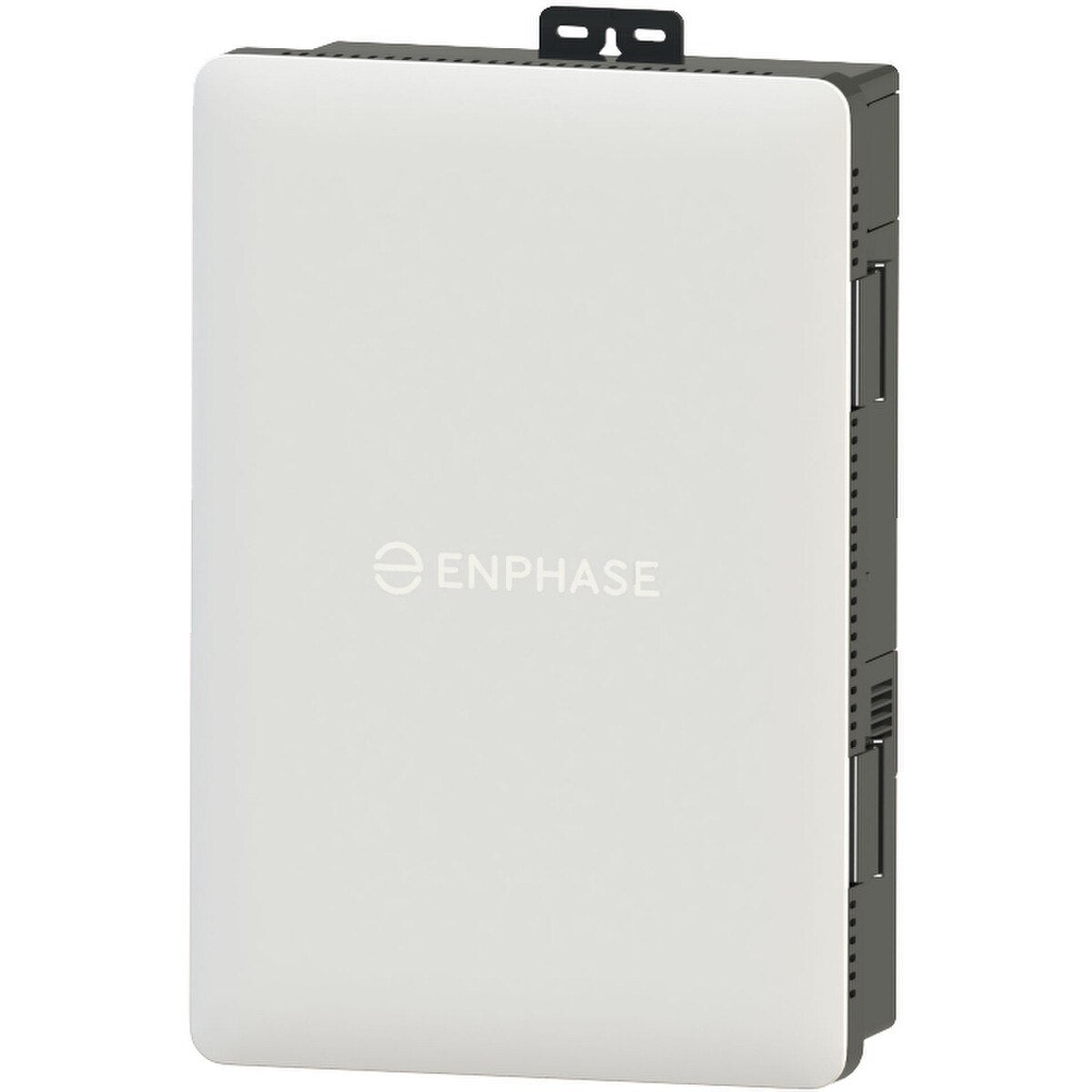

The Enphase IQ Combiner 6C (X-IQ-AM1-240-6C-3BRK) is a fully integrated combiner solution designed to streamline residential solar and storage installations. It consolidates interconnection equipment into a single enclosure, combining the IQ Gateway, combiner panel, and load control functionality for a simplified and efficient system architecture.
With built-in monitoring, pre-installed breakers, and support for PV, battery, EV charger, and load control circuits, the IQ Combiner 6C reduces installation time while enhancing system performance, safety, and expandability.
Key Technology
-
All-in-One Combiner Solution
Integrates IQ Gateway, combiner panel, and control electronics into a single enclosure for streamlined installation. -
Pre-Installed Breakers
Includes three 20A PV breakers and one 40A battery breaker for faster deployment. -
Integrated Monitoring
Provides revenue-grade production and storage monitoring with pre-installed current transformers (CTs). -
Supports Multiple Energy Sources
Accommodates PV, batteries, EV chargers, and load control circuits within one system. -
Flexible Connectivity
Supports Wi-Fi, Ethernet, and cellular communication with included Mobile Connect modem (5-year plan). -
Integrated Rapid Shutdown
Includes UL-certified rapid shutdown functionality for safety compliance. -
Load Control Capability
Supports integrated load controller up to 64A for intelligent energy management. -
Durable Outdoor Design
Features a NEMA 3R enclosure with active cooling and solar shield for reliable outdoor performance.
Best Uses
-
Residential Solar + Storage Systems
Ideal for integrating microinverters, batteries, and monitoring into a single enclosure. -
Energy Management Systems
Supports load control, EV charging, and advanced energy monitoring. -
Simplified Installations
Reduces wiring complexity and installation time with pre-configured components.
Warranty
- Manufacturer: Enphase Energy
- Warranty: 15-Year Limited Warranty (5 years for cellular modem)
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Enphase Energy |
| Model | X-IQ-AM1-240-6C-3BRK |
| Product Type | IQ Combiner with Integrated Gateway |
| Nominal Voltage | 240 VAC Split Phase |
| Frequency | 60 Hz |
| Max Continuous PV Current | 80 A |
| Max Battery Current | 2 × 59 A |
| Max EV Charger Current | 48 A |
| Max DER Current | 160 A |
| Max Backfeed Current | 100 A |
| Max Aggregate PV Breaker | Up to 100 A (60 A pre-installed) |
| Pre-Installed Breakers | 3 × 20A (PV), 1 × 40A (Battery) |
| Load Controller Capacity | Up to 64 A |
| Dimensions | 26.8 × 18.1 × 8.7 in |
| Weight | 40 lb |
| Enclosure Rating | NEMA 3R (Outdoor Rated) |
| Cooling | Active Air Cooling with Solar Shield |
| Operating Temperature | -40°C to 46°C |
| Communication | Wi-Fi, Ethernet, Cellular (included modem) |
| Monitoring | Integrated IQ Gateway |
| Compliance | UL 1741, CSA, FCC Part 15 Class B |
About Enphase Energy:
Enphase Energy is a global leader in solar microinverter and energy management technology, delivering intelligent, reliable, and scalable solutions for residential and commercial energy systems.
All-in-One Combiner for Simplified Solar Installations
The Enphase IQ Combiner 6C integrates monitoring, protection, and control into a single enclosure, making it a powerful and efficient solution for modern solar and storage systems.
