Enphase Consumption Clamp Current Transformer CT-200-CLAMP
CT-200-CLAMP
Specifications
Enphase Consumption Clamp Current Transformer CT-200-CLAMP

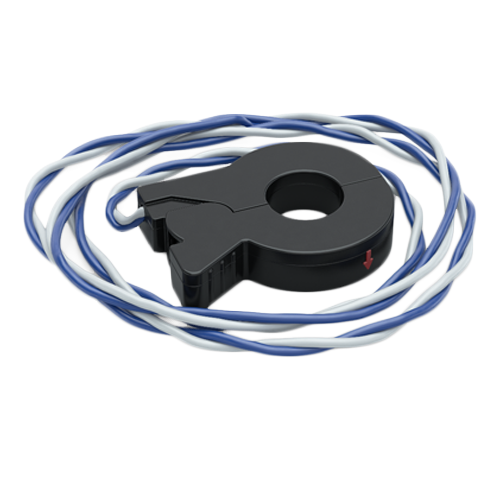

The Enphase CT-200-Clamp is a high-accuracy current transformer designed for use with the Enphase IQ Gateway to enable consumption monitoring in residential and light commercial solar systems. With a 200A rating and <1% error, it is ideal for service entrance monitoring in a variety of environmental conditions.
Key Benefits
High Accuracy: Delivers better than 1% metering precision for energy monitoring and reporting.
Clamp-On Design: Easily installs around main supply lines with a secure locking mechanism.
Flexible Application: Rated for Pollution Degree 3 environments—suitable for residential and harsh conditions.
UL Certified: UL2808 compliant with service entrance rating and RoHS certification.
Clear Labeling: Arrows indicate correct current direction for accurate measurements.
Special Technology
Phase-Matched: Designed to be paired with voltage inputs for L1 and L2 for correct power readings.
Parallel Support: Can be parallel-wired to support larger systems or complex service panels.
Multi-Wire Capable: Monitors multiple conductors on the same phase if they fit through the aperture.
Warranty
Backed by standard Enphase limited accessory warranty.
Best Uses
Residential Solar Systems: Enables consumption monitoring via IQ Gateway or Envoy.
Service Entrance Monitoring: Suitable for utility or whole-home monitoring at the main panel.
Multi-Conductor Panels: Can support bundled wires or parallel CT configurations.
Specifications Table
| Specification | Data |
|---|---|
| Model | CT-200-Clamp |
| CT Type | Clamp-style current transformer |
| Maximum Primary Current | 200 A |
| CT Accuracy | < 1% |
| Turns Ratio | 2400 |
| Primary Voltage | 250 VAC |
| Frequency | 50–60 Hz |
| Pollution Degree | 3 (residential and industrial applications) |
| Dimensions (W × H × D) | 2.75 × 2.12 × 0.61 in |
| Aperture Diameter | 0.87 in |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity | Up to 95% RH (non-condensing) |
| Compliance | UL2808, RoHS |
About Enphase Energy:
Enphase Energy is a global leader in solar energy solutions, renowned for its microinverter technology that maximizes solar panel performance and reliability. Enphase offers integrated systems that combine solar, storage, and energy management for optimized home energy use.
