Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
MPN No: B05-C01-US00-1-3-DOM
Expected ship date Jan 14 - 21
In Stock
$3,574.73
Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
Regular price
$3,574.73
New
LESS THAN 50
Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
Available
MPN No: B05-C01-US00-1-3-DOM
Regular price
$3,574.73
Expected ship date Jan 14 - 21
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3,574.73
Enphase 5 kWh Battery Unit - Includes ONE 5 kWh battery with One Mounting Bracket B05-C01-US00-1-3-DOM
MPN No:
B05-C01-US00-1-3-DOM
Expected ship date Jan 14 - 21

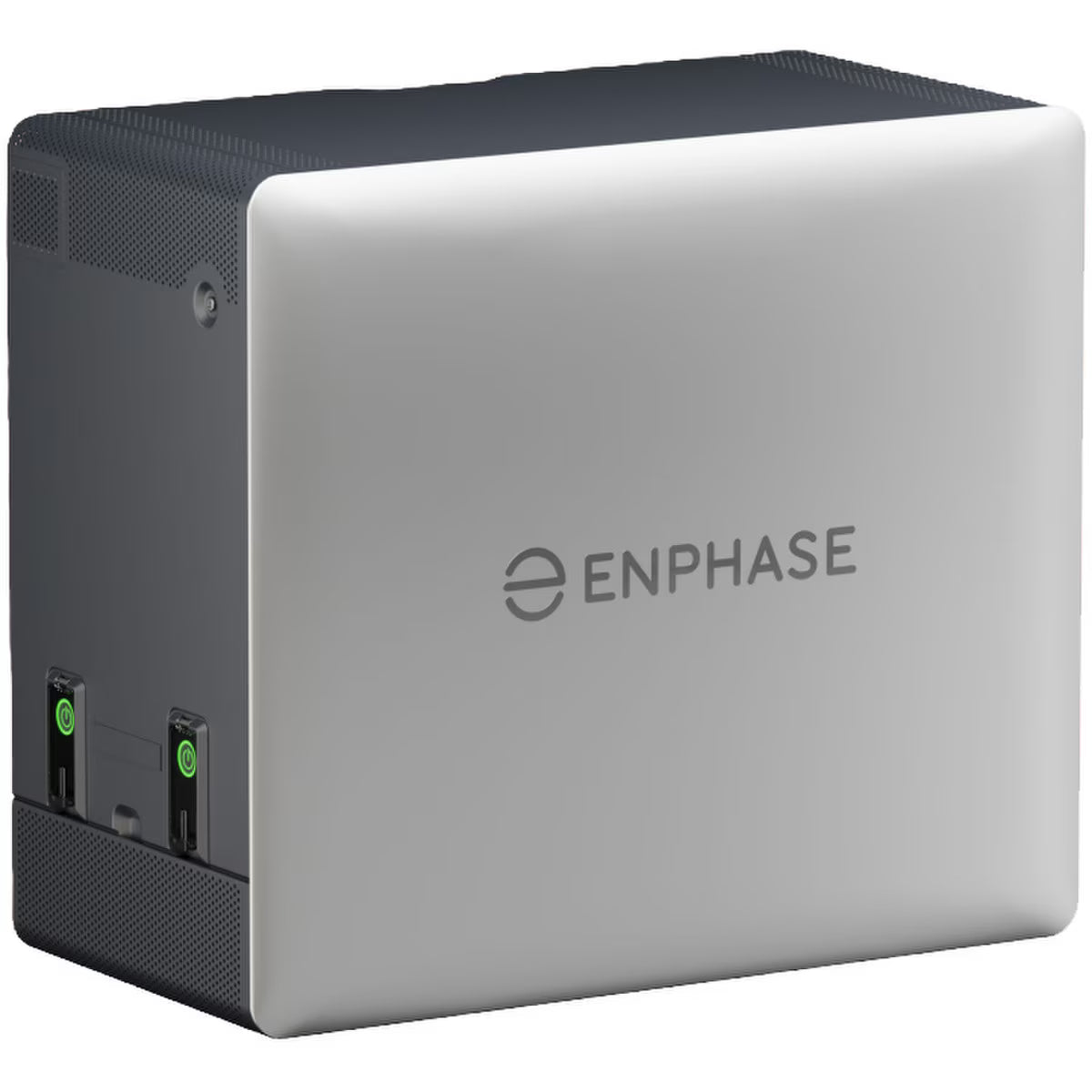

Enphase 5 kWh Battery Unit
Includes ONE 5 kWh battery unit with one mounting bracket. Without ID cover (must be ordered SEPARATELY - SKU: EN-B10C-NC-0708-O)
The Enphase B05-C01-US00-1-3-DOM is the 5 kWh battery unit used in the IQ Battery 10C system. Two of these 5 kWh units combine to form one IQ Battery 10C (10.0 kWh usable). The unit features safe LFP chemistry, outdoor-rated NEMA 3R enclosure, and wall or pedestal mounting for flexible residential energy storage deployments.
Key Benefits
Modular 5 kWh Building Block: Two units make a 10.0 kWh IQ Battery 10C; supports scalable designs.
Safe & Reliable LFP: Lithium iron phosphate chemistry with passive (fan-less) natural convection cooling.
Outdoor Ready: NEMA 3R enclosure for indoor or outdoor installation.
Special Technology
Energy Intelligence Platform: Integrates with embedded IQ8 microinverters and EI ecosystem for backup, self-consumption, and TOU control (system level).
Warranty
Up to 15 years limited warranty (capacity & cycle limits apply).
Best Uses
Residential Storage & Backup: Use as a single 5 kWh module or pair two units within an IQ Battery 10C for whole-home applications.
Specifications Table
| Specification | Data |
|---|---|
| Ordering SKU | B05-C01-US00-1-3-DOM (5 kWh battery unit, domestic) |
| System Context | Two 5 kWh units combine to form one IQ Battery 10C (10.0 kWh usable) |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Usable Capacity (per unit) | 5.0 kWh (two units = 10.0 kWh IQ Battery 10C) |
| Dimensions (H × W × D) | 24.5 × 28 × 14.4 in |
| Maximum Lifting Weight (per unit) | 125 lb |
| Enclosure / Cooling | NEMA 3R (outdoor) / Natural convection |
| Mounting | Wall-mount or pedestal-mount (sold separately) |
| Operating Temp (charging) | −4 to 122 °F (−20 to 50 °C), non-condensing |
| Operating Temp (discharging) | −4 to 131 °F (−20 to 55 °C), non-condensing |
| Altitude | Up to 3,000 m (9,842 ft) |
| Compliance (system) | UL 9540/9540A, UL 1973, UL 1741 SB, IEEE 1547:2018, UN 38.3, FCC Part 15 Class B |
