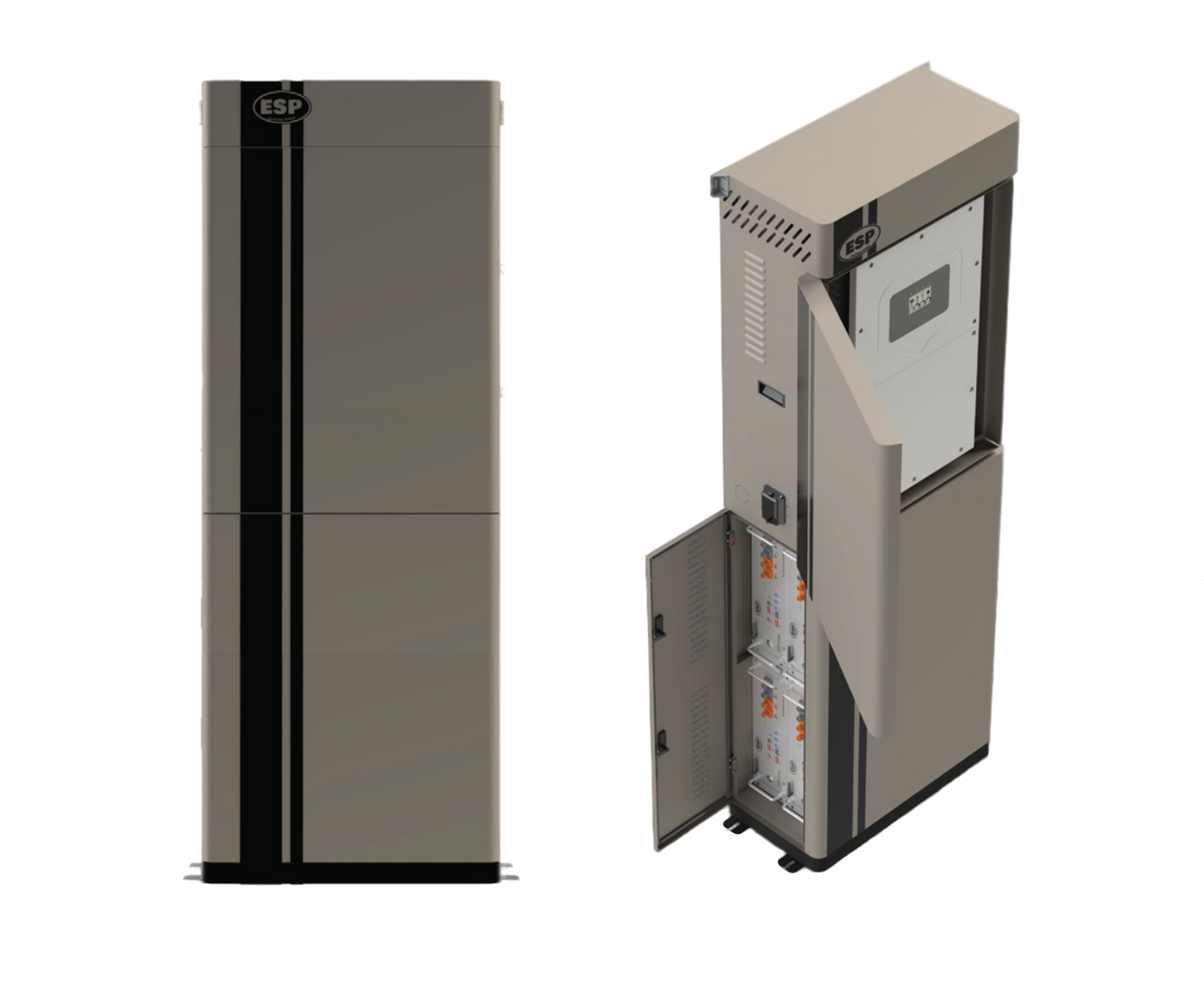

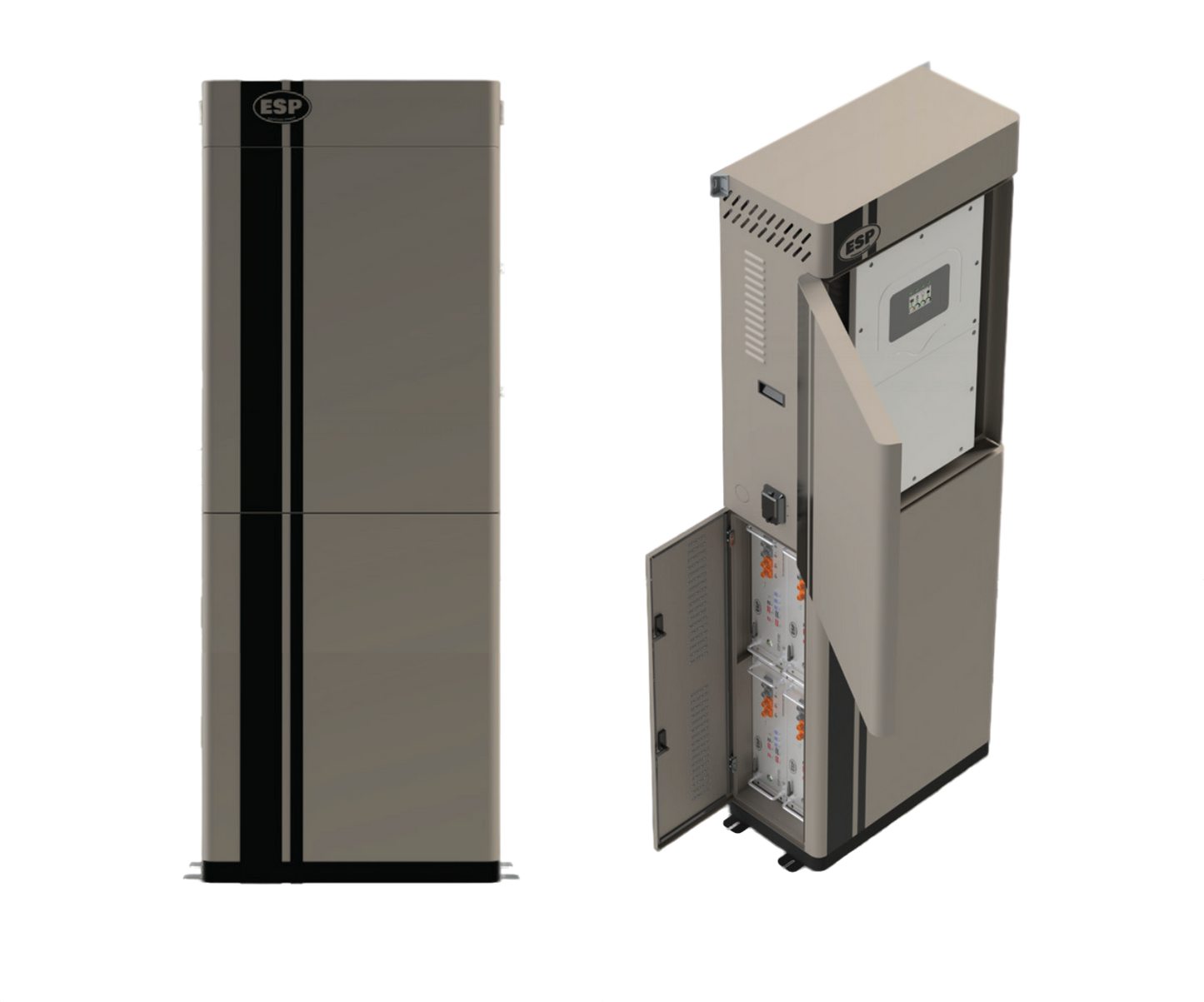

EndurEnergy ESP-IBU20 Battery & Inverter Enclosure with 20.48 kWh Battery Packs & BMS

Introducing the EndurEnergy ESP-IBU20, a comprehensive battery and inverter solution designed for advanced energy storage needs. This integrated system combines a robust enclosure with 20.48 kWh capacity through four ESP-5100 battery packs and a sophisticated Battery Management System (BMS), making it an ideal choice for enhancing grid independence and energy efficiency.

  • Steel enclosure with NEMA 3R protection, ensuring durability in various environments.
  • 20.48 kWh total storage from four high-capacity ESP-5100 battery packs for extended energy supply.
  • Integrated advanced BMS for optimal performance, monitoring, and safety.
  • Compatible with multiple Sol-Ark inverters, offering versatility in system setup.
  • 10-year warranty, demonstrating commitment to reliability and customer satisfaction.

Technology and Overview

The ESP-IBU20 features leading-edge technology for efficient energy management and storage, ensuring reliability and optimal performance.

Installation and Compatibility Overview

Designed for seamless integration, this system supports a wide range of configurations, providing a flexible solution for energy storage needs.

Benefits and Applications Overview

With its significant storage capacity and robust features, the ESP-IBU20 is ideal for enhancing grid independence, reducing energy costs, and supporting sustainable energy usage.

Specifications

Specification Value
Model No. ESP-IBU20
Dimensions (H x W x D) 83.7 x 28.4 x 14.1 in (2126 x 721 x 358 mm)
Enclosure Weight 253.53 lb (115 kg)
Assembly Weight* 701.95 lb (318.4 kg) 737.23 lb (334.4 kg)
Material Steel
Color and nish Gray / Powder Coated
Protection level NEMA 3R
Warranty 10-Year
Compliance UL9540, UL1973, CEC and SGIP listed / EMC tested (Only ESP-5100) / UL9540A (Only ESP-5K HL)
Inverter Compatibility Sol-Ark 5K / Sol-Ark 8K / Sol-Ark 12K / Sol-Ark 8K EMP / Sol-Ark 12K EMP


Battery Module 4 x ESP-5100
Battery Type Lithium Iron Phosphate (LFP)
Nominal Voltage 51.2V
Working Voltage 48V - 56V
Battery Capacity 400Ah
Nominal Battery Energy 20.48kWh
Peak Power 20kW 3s
Recommended C Rate 0.5
Round Trip Eciency 97%
Recommended DoD 90%
Charge Temperature Range 32 °F to 113 °F (0 °C to 45 °C)
Discharge Temperature Range 14 °F to 122 °F (-10 °C to 50 °C)
Life Cycles 6000
