EG4 48V 100A Smart Battery Charger with RS485 EG4CHARGERVERTER-GC
EG4CHARGERVERTER-GC
EG4 48V 100A Smart Battery Charger with RS485 EG4CHARGERVERTER-GC

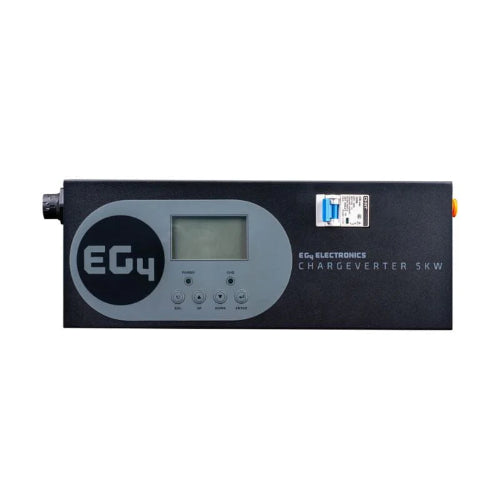

The EG4 Chargeverter-GC is a high-performance 48V battery charger designed to rapidly and safely recharge lithium and lead-acid battery banks. Offering up to 100 amps of charging power and over 5kW of output at 240VAC, this compact unit is ideal for use with solar energy systems, off-grid power setups, or generator charging environments.
Key Benefits
Fast Charging: Delivers up to 100A at 240VAC—over 5kW—for rapid energy replenishment.
Smart Charging via RS485: Communicates with BMS to optimize charge profiles using SOC data.
Generator-Friendly: Handles “dirty power” and includes dry contacts for automatic generator start/stop control.
Built-In Breaker: Integrated protection ensures safety with convenient manual shutoff.
Flexible Input Voltage: Operates with 120VAC, 208VAC, or 240VAC power sources using optional adapters.
Special Technology
RS485 Closed-Loop Communication: Enables precise charge control with compatible battery systems.
Adjustable Voltage and Current: Supports customizable voltage from 43–57V and current from 0–100A.
Auto Generator Start Integration: Dry contact interface enables intelligent control of backup generators.
High Efficiency Design: Up to 94% charging efficiency at 240VAC input.
Warranty
Backed by a 3-year warranty when installed indoors, the EG4 Chargeverter-GC offers reliable long-term performance and product support.
Best Uses
Off-Grid Solar Charging: Ideal for 48V battery banks in independent energy systems.
Backup Generator Charging: Clean and efficient battery recharge from gas or diesel gensets.
RV, Marine, and Mobile Power: Powerful yet compact, suitable for mobile applications requiring smart charging.
Specifications Table
| Specification | Data |
|---|---|
| Model Number | CU-48|5000-GD (Chargeverter-GC) |
| Battery Voltage | 48VDC nominal |
| Charge Current | 0–100A @ 240VAC; 0–50A @ 208VAC; 0–45A @ 120VAC |
| Charge Voltage (Adjustable) | 43–57VDC (default 54VDC) |
| Max Output Power | 5120W @ 240VAC; 3050W @ 120VAC |
| Max Efficiency | 94% @ 240VAC; 92% @ 120VAC |
| AC Input Voltage Range | 90–264VAC |
| AC Frequency | 50–60Hz |
| Max Input Current | 26A @ 240VAC; 28A @ 120VAC |
| Idle Consumption | ~10W |
| Operating Temp. Range | 14°F – 131°F (-10°C – 55°C) |
| Storage Temp. Range | 5°F – 140°F (-15°C – 60°C) |
| Humidity | 5% to 95% RH (non-condensing) |
| Ingress Protection | IP21 |
| Max Operating Altitude | 0–4921 ft (0–1500 m) |
| Dry Contact Interface | NO, NC, C (RJ11 Jack) |
| Communication Port | RS485 (RJ45) |
| Dimensions (H × W × D) | 5 × 13.2 × 4.9 in |
| Weight | 13 lbs |
| Warranty | 3 Years (indoor use only) |
About EG4 Electronics:
EG4 Electronics specializes in affordable, high-performance solar energy products including inverters, lithium batteries, and solar accessories. Known for user-friendly design and off-grid reliability, EG4 empowers residential and commercial energy independence.
