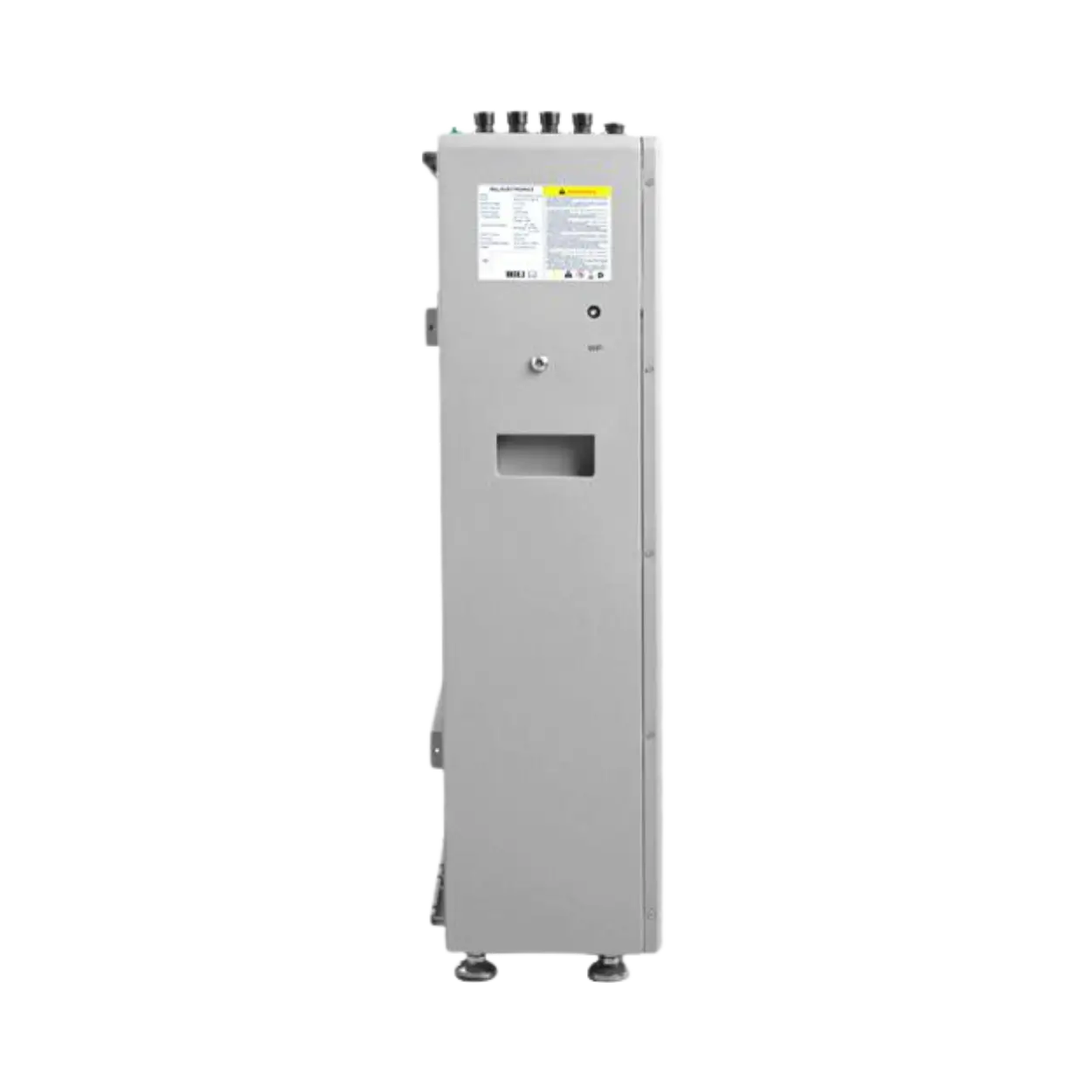

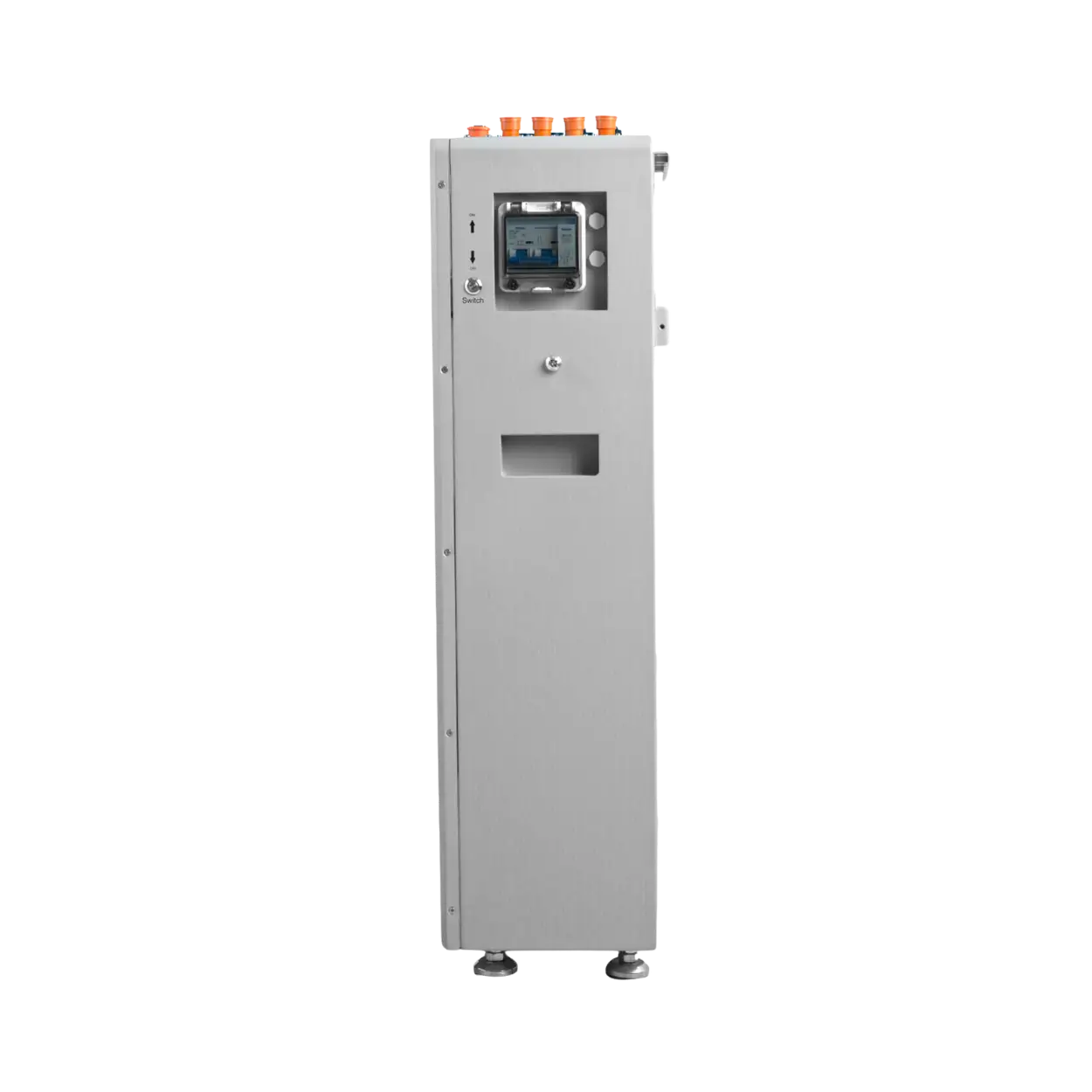

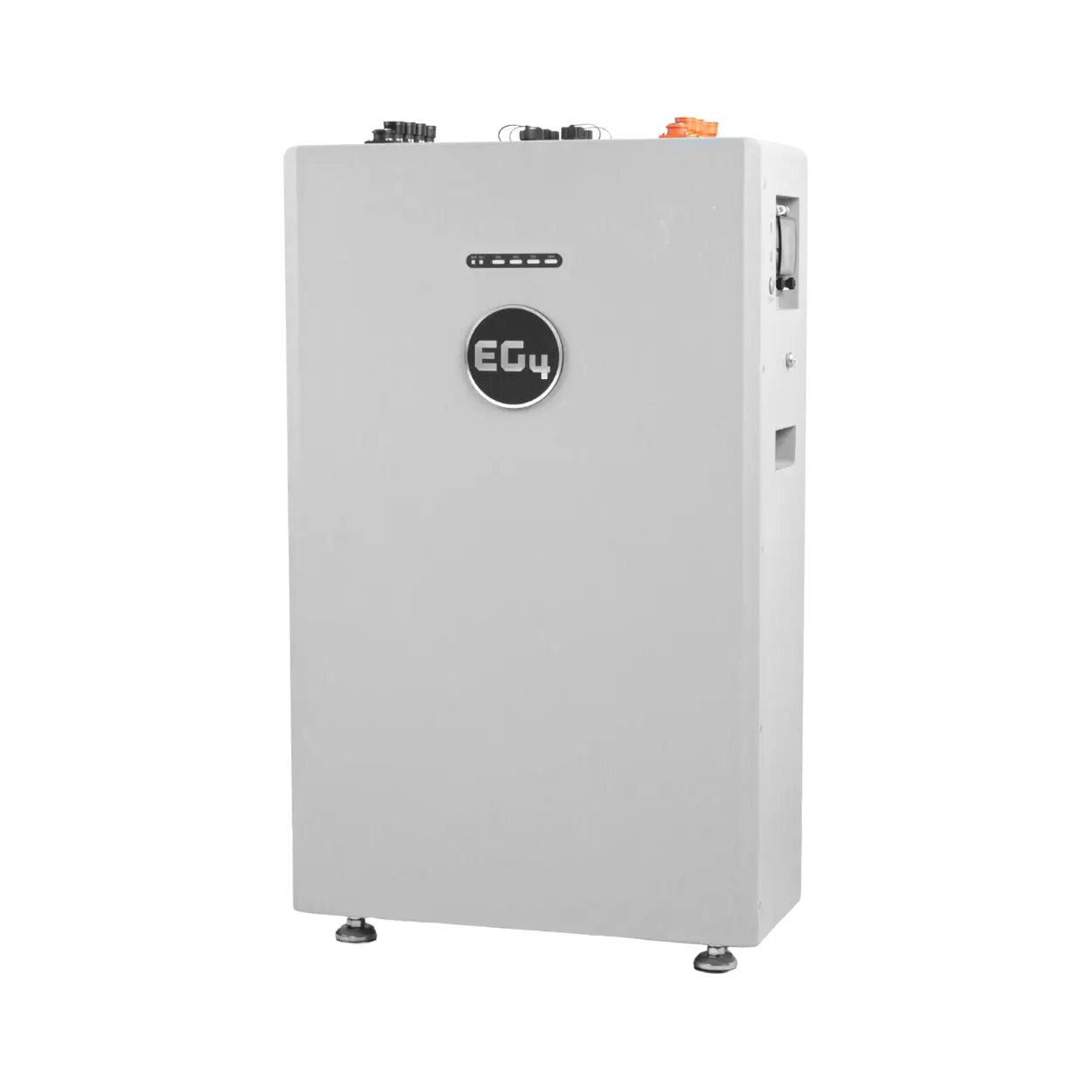

EG4 WallMount 314Ah All Weather Battery EG448V314AODWMB
The EG4 WallMount 314Ah All Weather Battery (EG448V314AODWMB) is a high-capacity lithium iron phosphate (LiFePO4) energy storage solution engineered for residential, commercial, off-grid, and backup power applications. Delivering 16kWh of nominal energy storage and housed in an IP67-rated enclosure, this battery is designed to withstand demanding environmental conditions while providing reliable long-term performance. Its compact wall-mounted design makes it ideal for both new installations and system retrofits.
Featuring EG4's advanced Smart BMS with active cell balancing, automatic inverter communication, remote firmware updates, and configurable dry contacts, the WallMount 314Ah battery offers simplified commissioning, enhanced safety, and seamless integration with compatible energy storage systems. With support for up to 32 batteries in parallel and a cycle life of up to 10,000 cycles, this battery is built for scalable, long-term energy independence.
Key Technology
-
16kWh Energy Storage Capacity
Provides substantial backup power and energy storage capability for residential and commercial applications. -
314Ah LiFePO4 Battery
Advanced lithium iron phosphate chemistry delivers exceptional safety, longevity, and thermal stability. -
Active Cell Balancing
2–3A active balancing improves cell equalization and extends battery lifespan. -
Auto Configuration
Eliminates manual DIP switch setup by automatically detecting and configuring system settings. -
Smart BMS Integration
Integrated battery management system monitors and protects battery operation while enabling communication with compatible inverters. -
Remote Firmware Updates
Supports over-the-air firmware upgrades through the EG4 monitoring ecosystem. -
Integrated Battery Heater
Automatically activates in cold temperatures to support charging performance. -
IP67 All-Weather Protection
Fully protected against dust and water intrusion for outdoor installations. -
Expandable System Design
Supports up to 32 batteries in parallel for large-scale energy storage systems.
Best Uses
-
Residential Energy Storage
Provides whole-home backup and energy management capabilities. -
Off-Grid Solar Systems
Ideal for standalone renewable energy applications. -
Commercial Battery Storage
Scalable solution for commercial energy storage projects. -
Backup Power Applications
Reliable energy reserve for critical loads during outages. -
Outdoor Installations
IP67 enclosure supports installation in demanding environments.
Warranty
- Warranty: 10 Years or 10,000 Cycles
- Design Life: 10 Years
- Cycle Life: 10,000 Cycles @ 0.5C, 80% DOD, 25°C
- Lifetime Energy Production: 122.2 MWh
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | EG4 Electronics |
| Model | EG448V314AODWMB |
| Series | WallMount 314Ah All Weather Battery |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy Capacity | 16kWh |
| Recommended Usable Energy | 12.86kWh (80% DOD Recommended) |
| Nominal Voltage | 51.2VDC |
| Capacity | 314Ah |
| Recommended Voltage Range | 47.5 – 56VDC |
| Charging Voltage Range | 56 – 57VDC |
| Discharge Cut-Off Voltage | 44.8VDC |
| Maximum Continuous Charge Current | 157A |
| Maximum Continuous Discharge Current | 200A |
| Recommended Charge/Discharge Current | 157A |
| Continuous Charge Power | 8kW |
| Continuous Discharge Power | 10.2kW |
| Peak Power | 12.8kW (3 Seconds) |
| Round Trip Efficiency | 95% |
| Maximum Parallel Units | 32 |
| Battery Breaker | 250A |
| Communication Protocols | RS485, CAN |
| BMS Type | Integrated Smart BMS with Active Balancing |
| Protection Features | Over/Under Voltage, Over-Current, Short Circuit, High/Low Temperature |
| Battery Heater Voltage | 56V |
| Battery Heater Consumption | 448W |
| Cooling Method | Natural Convection |
| Enclosure Rating | IP67 |
| Mounting Options | Wall Mount / Floor Mount |
| Display | LED Status Indicators |
| Connector Type | Degson Quick Connector / Screw Terminal |
| Operating Temperature | Charge: 32°F to 122°F (0°C to 50°C) |
| Operating Temperature | Discharge: -4°F to 131°F (-20°C to 55°C) |
| Storage Temperature | -4°F to 131°F (-20°C to 55°C) |
| Humidity | 5% – 95% RH (Non-Condensing) |
| Operating Altitude | 9,843 ft (3,000m) |
| Dimensions (H × W × D) | 34.6 × 21.7 × 9.3 in |
| Weight | 309 lb |
About EG4 Electronics
EG4 Electronics develops advanced energy storage solutions, batteries, inverters, and power management equipment designed for residential, commercial, and off-grid energy applications. EG4 products are recognized for reliability, scalability, and installer-friendly integration features that simplify energy storage deployment.
High-Capacity All-Weather Energy Storage
The EG4 WallMount 314Ah All Weather Battery combines 16kWh of LiFePO4 storage, active balancing technology, IP67 environmental protection, and industry-leading scalability into a premium battery solution built for long-term energy independence and backup power applications.
