EG4 GridBOSS MID 200A EG4MID2P200AV2.1
EG4MID2P200AV2.1

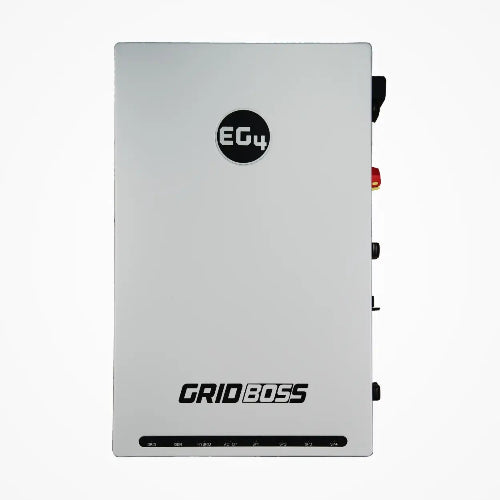

EG4 GridBOSS MID 200A EG4MID2P200AV2.1
The EG4 GridBOSS Micro-Grid Interconnection Device (MID) consolidates service entrance equipment, transfer switching, generator input, load/EPS output, and hybrid inverter interconnects into a single 200A enclosure. With remote monitoring, fast transfer, and smart load ports, it simplifies ESS balance-of-system for whole-home backup and micro-grids.
Key Benefits
All-in-One BOS: Replaces up to 10 panels/switches (POCC, feeders, transfer switch, combiners) with a single unit.
Service Entrance Rated: 200A service entrance with 22 kAIC main when paired with Eaton CSR2200N (CSR25K) breaker (US only).
Smart Load Control: Four configurable smart ports for load and power shedding based on SOC/PV availability.
Remote Management: App/portal supports monitoring, configuration, and firmware updates.
Special Technology
Centralized ESS Control: Single point of connection for utility, backup/non-backup loads, generators, hybrid/AC-coupled inverters.
Hybrid Inverter Integration: Three hybrid ports (up to 90A per port) for EG4 12kPV, 18kPV, FlexBOSS18, FlexBOSS21.
Fast Transfer: ~25 ms transfer time helps maintain critical loads during grid events.
Warranty
10-Year Standard Warranty (EG4 Electronics).
Best Uses
Whole-Home Backup: Streamlined service-entrance micro-grid with hybrid inverter stacks.
Generator-Hybrid Systems: Integrated generator input and control for extended outages.
Retrofits & New Builds: Reduces BOS complexity, space, and installation time.
Specifications Table
| Specification | Data |
|---|---|
| Model | EG4MID2P200AV2.1 (GridBOSS MID, 200A) |
| Nominal System Voltage | 120/240 Vac split-phase (L1/L2/N required) |
| Service Entrance Rating | 200A; 22 kAIC with Eaton CSR2200N (CSR25K) main breaker (US only) |
| Grid Ports | Utility in, Non-backup out (200A max), Backup out (200A max) |
| Generator Input | 120/240 Vac, 60 Hz, 125A max |
| Hybrid Ports | 3 ports, 120/240 Vac, 60 Hz, up to 90A per port |
| Supported Inverters | EG4 12kPV, 18kPV, FlexBOSS18, FlexBOSS21 |
| Smart Ports | 4 ports: 125A (P1), 80A (P2), 60A (P3), 60A (P4); load/power shedding |
| Transfer Time | ~25 ms |
| Communications | RS485 / Wi-Fi / CAN |
| Internal Bus / Fuse | 350A bus (software-limited to 200A) / 315A internal fuse |
| Operating Temperature | -40°F to 113°F (-40°C to 45°C) |
| Humidity / Altitude | 0–100% RH / < 6561 ft (< 2000 m) |
| Enclosure | NEMA 3R (outdoor rated) |
| Dimensions (H × W × D) | 31.5 × 19.7 × 7 in |
| Weight | 55 lb |
| Standards & Certifications | UL1741, UL67, UL869A*, UL916**, CSA C22.2 #29:2015, FCC Part 15 Class B (*with Eaton main; **model-dependent) |
| Warranty | 10 Years |
