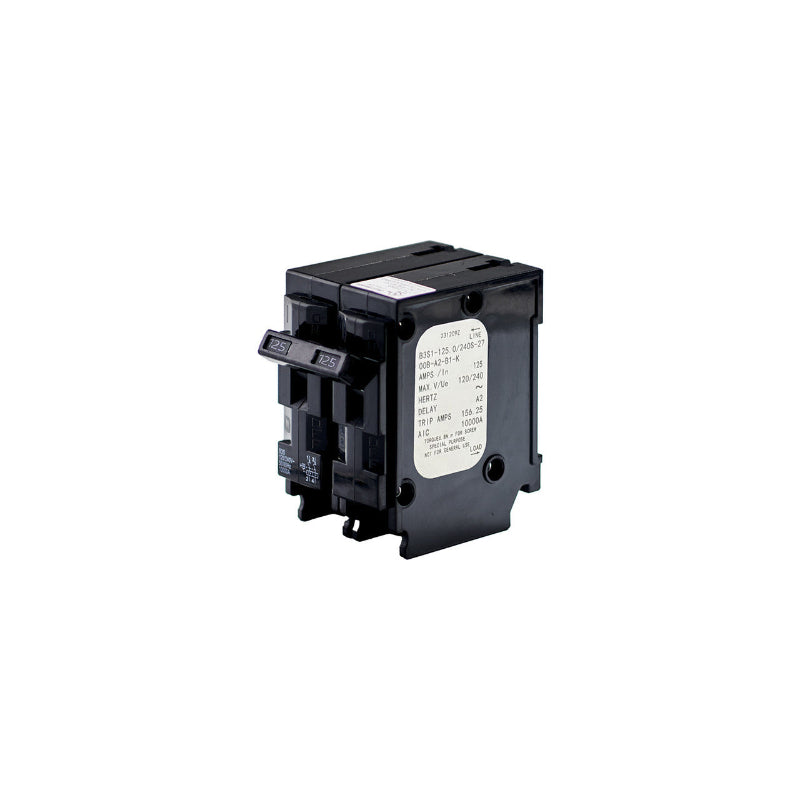

EG4 125 Amp AC Breaker BSB Series FlexBoss Inverter EG4BREAKER125A
EG4BREAKER125A
EG4 EG4BREAKER125A 125 Amp AC Breaker BSB Series FlexBoss Inverter
Key Features:
- 125A DC Circuit Breaker – Designed for high-power electrical system protection.
- 120/240V AC & 250V DC Rated – Suitable for AC and DC applications.
- Interrupting Capacity of 10,000A – Provides high-level safety in power systems.
- Wide Operating Temperature Range – Functions between -40°C and +85°C.
- Trip-Free Mechanism – Automatically disconnects during overcurrent events, even if manually held ON.
- 10,000 Mechanical Lifecycles – Ensures long-term durability.
- UL489 & IEC 60947-2 Certified – Meets global safety and performance standards.
- 1-Pole, 2-Pole, 3-Pole, 4-Pole Options – Offers installation flexibility.
- Rugged Industrial Construction – Ideal for solar, telecommunications, marine, and industrial applications.
Best Applications:
- Solar PV and Battery Protection
- Industrial Automation & Control Panels
- UPS & Backup Power Systems
- Marine and Railway Electrical Systems
Installation & Compatibility:
- Compatible with wire sizes #16-#4 AWG (1.31-21.2 mm²) and #3-#2/0 AWG (26.7-67.4 mm²).
- Torque rating of 2.8 N·m (small gauge) to 6.8 N·m (large gauge) for secure connections.
- Supports both vertical and horizontal installation.
About EG4 Electronics:
EG4 specializes in high-performance electrical components for solar, industrial, and automation applications, offering reliable and certified circuit protection solutions.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | EG4BREAKER125A |
| Rated Current | 125A |
| Rated Voltage (AC/DC) | 120V / 240V AC, 250V DC |
| Interrupting Capacity (AIC) | 10,000A |
| Rated Insulation Voltage (Ui) | 500V |
| Impulse Withstand Voltage (Uimp) | 4kV |
| Electrical Lifecycle | 6,000 Cycles |
| Mechanical Lifecycle | 10,000 Cycles |
| Operating Temperature Range | -40°C to +85°C |
| Trip-Free Mechanism | Yes |
| Certifications | UL 489, IEC 60947-2 |
| Dimensions (H x W x D) | 4.7” x 1.5” x 3.1” |
| Weight | ~0.75 lbs |
