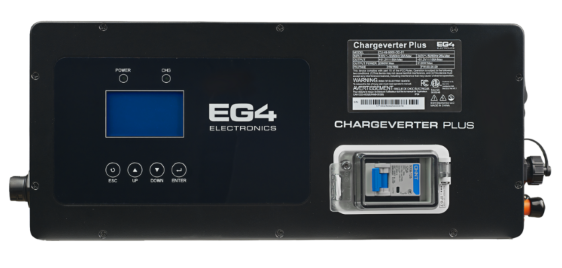

EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
MPN No: EG4CV48V100AIP54
Expected ship date Jun 26 - Jul 03
In Stock
$746.04
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
Regular price
$746.04
New
LESS THAN 50
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
Available
MPN No: EG4CV48V100AIP54
Regular price
$746.04
Expected ship date Jun 26 - Jul 03
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$746.04
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
MPN No:
EG4CV48V100AIP54
Expected ship date Jun 26 - Jul 03
EG4 Chargeverter Plus 100 Amp 48 VDC EG4CV48V100AIP54
The EG4 Chargeverter Plus (EG4CV48V100AIP54) is a robust AC-to-DC battery charger designed specifically for 48V lithium battery systems in both grid-connected and off-grid energy storage applications. Capable of delivering up to 100A of charging current and over 5kW of charging power, the Chargeverter Plus provides fast, reliable battery charging while accepting 120VAC, 208VAC, or 240VAC input sources. Its IP54-rated enclosure allows installation in outdoor environments, making it ideal for residential backup systems, off-grid power installations, and generator-based charging applications.
The Chargeverter Plus features built-in CAN and RS485 communications for closed-loop battery integration, adjustable charging parameters, integrated dry contacts for automatic generator start control, and a built-in breaker for enhanced safety. Designed to work with both utility power and generators, it can effectively charge lithium battery banks even when supplied by generators with poor power quality.
Key Features
-
100A Battery Charging Capability
Delivers up to 100A charging current at 240VAC input for rapid battery charging. -
5120W Maximum Charging Power
Provides over 5kW of DC charging power for large battery banks. -
120V / 208V / 240V Input Compatible
Operates from multiple AC input voltages for flexible installation options. -
IP54 Outdoor Rated Enclosure
Designed for protection against dust ingress and splashing water. -
CAN & RS485 Communications
Supports closed-loop communication with compatible lithium battery systems. -
Automatic Generator Start Integration
Built-in dry contacts support generator automation based on voltage or SOC thresholds. -
Built-In Circuit Breaker
Provides convenient charger shutdown and system protection. -
Adjustable Charge Parameters
Charge current adjustable from 0–100A and charge voltage adjustable from 40–60VDC. -
Generator Friendly Design
Designed to operate reliably even with generators that produce "dirty power."
Best Uses
-
48V Lithium Battery Systems
Ideal for charging 15S and 16S lithium battery banks. -
Off-Grid Energy Storage
Provides reliable battery charging from generators and utility power. -
Residential Backup Power Systems
Supports battery charging for home energy storage installations. -
Generator Charging Applications
Optimized for charging batteries directly from portable or standby generators. -
Outdoor Energy Storage Installations
IP54-rated enclosure allows installation in protected outdoor environments.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | EG4 Electronics |
| Model | EG4CV48V100AIP54 |
| Product Name | EG4 Chargeverter Plus |
| Model Number | CU-48-5000-OD-01 |
| Product Type | AC-to-DC Battery Charger |
| Battery Voltage | 48V Lithium Battery Systems |
| Battery Compatibility | 15S or 16S Cell Lithium Batteries |
| Charge Current Range | 0–100A @ 240VAC |
| Charge Current Range | 0–80A @ 208VAC |
| Charge Current Range | 0–50A @ 120VAC |
| Charge Voltage Range | 40–60VDC Adjustable |
| Maximum Output Power | 5120W @ 240VAC |
| Maximum Output Power | 2560W @ 120VAC |
| Output Ripple | < 500mV |
| AC Input Voltage Range | 90–264VAC |
| Input Frequency | 50–60Hz |
| Maximum Input Current | 26A @ 240VAC |
| Maximum Input Current | 28A @ 120VAC |
| Idle Consumption | ~4W |
| Communication Ports | CAN / RS485 (RJ45) |
| Dry Contact Interface | NO, NC, and C |
| Ingress Protection | IP54 |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5%–95% RH (Non-Condensing) |
| Operating Altitude | 0–9,843 ft (0–3000m) |
| Cooling Method | Active Cooling |
| Dimensions (H × W × D) | 4.3 × 16.1 × 7.1 in |
| Weight | 13.67 lb |
| Noise Level | < 65 dB |
| Certifications | UL1012, FCC Class B |
| Warranty | 3 Years (Indoor Use) |
About EG4 Electronics
EG4 Electronics develops advanced energy storage, battery, inverter, and power conversion solutions for residential and off-grid applications. Known for innovative energy management products, EG4 provides dependable and cost-effective solutions designed to simplify battery charging, backup power, and renewable energy integration.
High-Power Charging for Modern Energy Storage Systems
The EG4 Chargeverter Plus combines 100A charging capability, generator-friendly operation, outdoor-rated protection, and advanced communication features into a versatile battery charging platform designed for today's 48V lithium energy storage systems.
