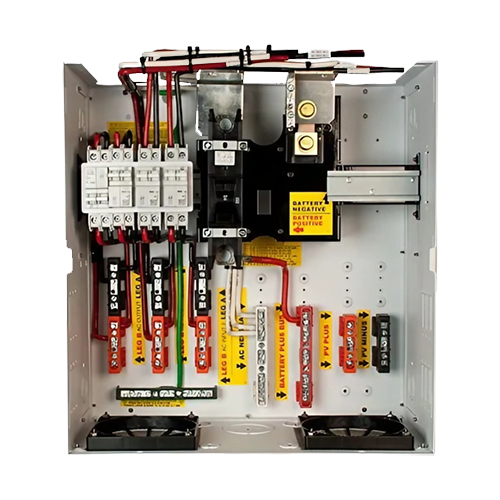

MidNite Solar Schneider XW 120/240 VAC MNE250XWP-SINGLE E-Panel – Seamless Off-Grid & Hybrid Power Integration

Simplify your solar power system installation with the MidNite Solar MNE250XWP-SINGLE E-Panel, expertly designed for flawless integration with Schneider Electric Conext XW+ and XW Pro inverters.

This pre-wired, high-quality steel E-Panel provides a streamlined and NEC-compliant solution for managing your off-grid or grid-tied solar applications, ensuring maximum efficiency and safety.

Key Benefits:

Effortless Installation: Drastically reduce installation time and complexity. The E-Panel is factory pre-wired with clearly labeled connection points for solar, battery, generator, and utility, eliminating the need for custom wiring. The Schneider XW inverter mounts directly above the E-Panel for a compact, space-saving footprint.

NEC & CSA Compliant: ETL listed to UL and CSA standards, guaranteeing adherence to national electrical codes for both residential and small commercial installations.

Comprehensive Protection: Includes a robust 250A DC inverter/battery breaker, dual 60A AC inputs for generator and utility, and provisions for up to seven DIN-mount breakers and twelve panel-mount breakers, providing superior overcurrent protection.

Optimized Power Management: Features massive tin-plated copper busbars for direct, secure connections to your XW inverter's battery terminals, ensuring efficient power flow. A 500A shunt is included for accurate battery monitoring.

Flexible Configuration: Offers a reversible door hinge for adaptable setup, and accommodates multiple charge controllers (including MidNite Classic, Outback, and Schneider XW MPPT) on either side for future expandability. The AC bypass can be configured for input/output on/off and AC bypass functionality.

Special Technology:

The MidNite Solar E-Panel series is built on the concept of integrated power distribution. By consolidating essential AC and DC disconnects, overcurrent protection, and busbars into a single, compact enclosure, MidNite Solar significantly simplifies renewable energy system installations.

The "E-Panel" design streamlines wiring, reduces material costs by minimizing external conduit runs, and improves overall system aesthetics. Its innovative hinged door allows for easy access to internal components and facilitates a one-person inverter mounting process.

Warranty:

Enjoy peace of mind with a 5-year standard manufacturer's warranty from MidNite Solar. All MidNite components are covered, though Schneider Inverters and their components are subject to Schneider's manufacturer's warranty. (Please note: MidNite does not warranty Schneider components.)

Best Use:

The MidNite Solar MNE250XWP-SINGLE E-Panel is ideal for:

Residential Off-Grid Solar Systems: Provides a safe and efficient foundation for homes relying entirely on solar power with battery storage.

Grid-Tied Solar with Battery Backup: Perfect for homeowners seeking energy independence and reliable backup power during utility outages.

Small Commercial Installations: Suitable for businesses looking to integrate renewable energy sources for reduced operating costs and improved energy resilience.

Remote Cabins & Workshops: Simplifies power management in isolated locations where grid access is limited or unavailable.

Systems Utilizing Schneider Electric Conext XW+ or XW Pro Inverters: Specifically designed for seamless compatibility and optimal performance with these leading inverter models.



Specifications Table


Specification
Product Name MNE250XWP-SINGLE
Enclosure Material Powder-Coated Steel
Inverter Compatibility Schneider XW Series (Single Unit)
Main Inverter Breaker 250A (not included, recommended accessory)
AC Input Breakers Dual 60A (included)
AC Bypass Included
Battery Monitoring Compatible with 500A/50mV Shunt
Breaker Slots Supports 3 Panel Mount + up to 7 Din Rail Breakers
Charge Controller Support Side-mount bracket for Classic or other controllers
Busbars AC IN, AC OUT, Ground, Neutral, PV+, Battery +/−
Knockout Sizes Top, Bottom, Sides – various conduit sizes
Mounting Includes inverter and wall mounting brackets
Dimensions (H × W × D) 25 × 16 × 8 inches
Weight ~35 lbs
Warranty 5 Years


About MidNite Solar

MidNite Solar, based in Arlington, Washington, is a U.S. manufacturer of renewable energy system components engineered for off-grid, grid-tied, and hybrid applications. Their product line includes MPPT charge controllers, E-Panels, battery enclosures, rapid shutdown devices, and combiner boxes.

Designed to meet or exceed NEC and UL standards, MidNite Solar equipment is trusted by installers worldwide for reliable, code-compliant, and installer-friendly solar solutions
