Deye 10.24 kWh Advanced LiFePO4 Scalable Home Battery Storage System RW-F10.2-B
RW-F10.2-B

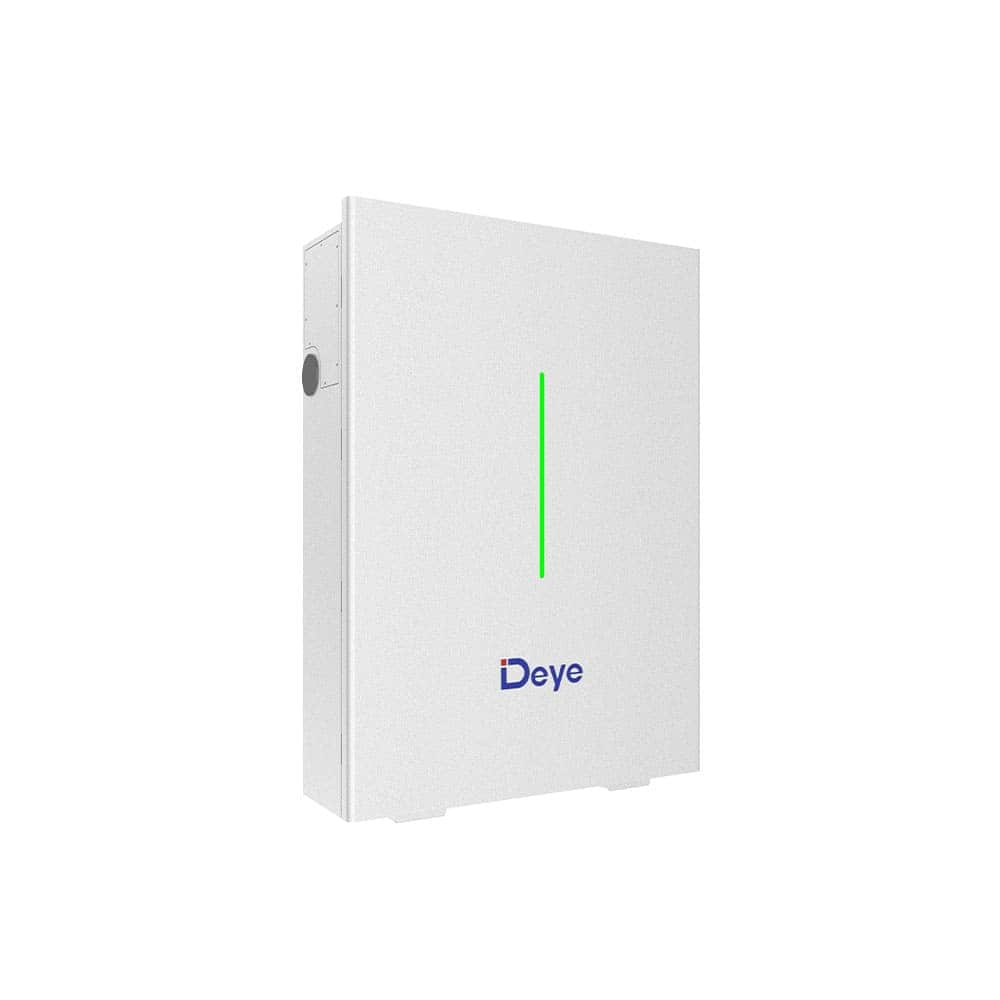

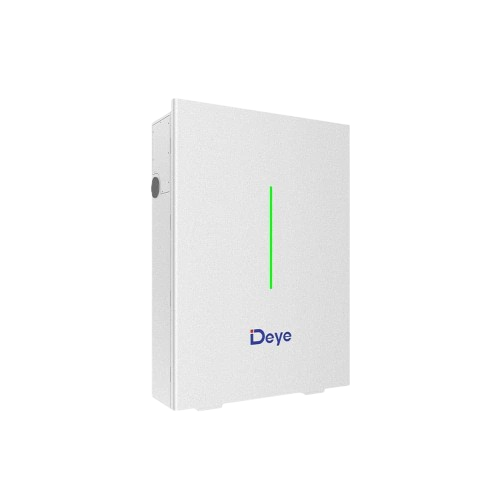

Deye RW-F10.2-B Advanced LiFePO4 Scalable Home Battery Storage System
Compatible Hybrid Inverters
The Deye RW-F10.2-B is a high-performance lithium battery solution designed for residential and commercial energy storage systems. With advanced LiFePO₄ chemistry, a modular design, and long cycle life, this battery ensures safe, reliable, and efficient energy storage for solar and backup power applications.
Key Technical Highlights
-
High Capacity – 10.24 kWh per module, scalable for larger systems.
-
Safe Chemistry – Lithium Iron Phosphate (LiFePO₄) for stability and long cycle life.
-
High Voltage Design – Ideal for compatibility with Deye inverters and other HV systems.
-
Long Lifespan – 6,000+ cycles at 90% Depth of Discharge (DoD).
-
Modular & Expandable – Easily parallel multiple units for increased storage capacity.
-
Advanced BMS Protection – Built-in Battery Management System ensures optimal safety and performance.
-
Compact & Easy Installation – Slim, stackable design reduces space requirements.
Warranty
-
Standard Warranty: 10 years
-
Performance Guarantee: At least 80% usable capacity after 6,000 cycles.
Applications
-
Residential Solar Energy Storage – Store excess PV energy for nighttime use.
-
Backup Power – Ensure critical loads stay powered during outages.
-
Commercial & Industrial Systems – Scalable solution for businesses seeking reliable energy storage.
-
Self-Consumption Optimization – Maximize solar energy usage and minimize grid dependence.
- Peak Shaving – Reduce demand charges by storing energy during off-peak hours.
Product Specification Table
| Specification | Deye RW-F10.2-B |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Energy | 10.24 kWh |
| Nominal Voltage | 204.8V |
| Operating Voltage Range | 180V – 219V |
| Nominal Capacity | 50Ah |
| Depth of Discharge (DoD) | 90% |
| Cycle Life | ≥ 6,000 cycles |
| Communication Protocols | CAN / RS485 |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -20°C to +60°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Ingress Protection (IP Rating) | IP20 |
| Dimensions (W × D × H) | 23.6 × 29.9 × 7.9 in |
| Weight | 239 lbs |
| Installation Type | Wall-mounted / Stackable |
| Certification | CE / IEC / UN38.3 / UL (region dependent) |
