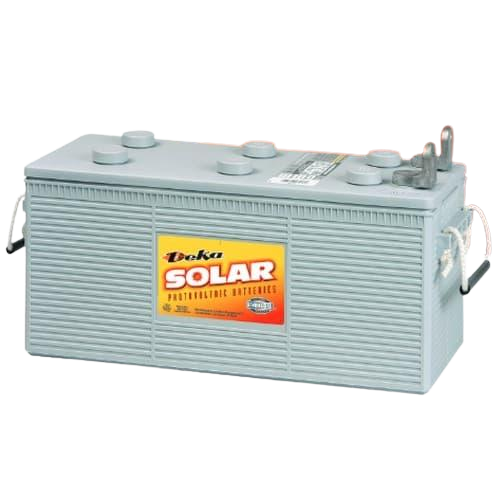

Deka Solar 12V 225Ah Deep Cycle Gel Battery, Sealed – 8G8D-HLT-DEKA

Deka Solar 12V 225Ah Deep Cycle Gel Battery, Sealed – 8G8D-HLT-DEKA

Regular price $813.00 -6% $761.81
6% OFF
88 IN STOCK
Leave a Review

Deka Solar 12V 225Ah Deep Cycle Gel Battery, Sealed – 8G8D-HLT-DEKA

Deka Solar 12V 225Ah Deep Cycle Gel Battery, Sealed – 8G8D-HLT-DEKA

Available
MPN No: 8G8D-HLT-DEKA
Regular price $813.00 -6% $761.81

1
2
3
4
5
6

Shipping calculated at checkout. About shipping

delivery icon
Expected ship date Nov 28 - Dec 05

Data Sheet

U.S. Warehouse

Trusted by Thousands

Expert U.S. Support

View full details
Regular price $813.00 -6% $761.81

Deka Solar 8G8D 12V 225Ah Deep Cycle Gel Battery

Sealed, Maintenance-Free VRLA Battery for Solar Energy Storage and Backup Power

12V Nominal | 225Ah at 20 Hours | 265Ah at 100 Hours | Genuine Gel Technology | HLT Terminals
The Deka Solar 8G8D 12V 225Ah Deep Cycle Gel Battery is engineered for dependable energy storage in solar photovoltaic, renewable energy, and backup power systems. Manufactured by East Penn Manufacturing, this sealed valve-regulated lead-acid (VRLA) battery features genuine gel technology, a reinforced polypropylene case, and a maintenance-free design for applications requiring frequent deep cycling.

Built for off-grid solar systems, remote power installations, water pumping, telecommunications-style monitoring applications, and renewable energy storage, the Deka 8G8D provides reliable deep-cycle performance without the routine watering required by traditional flooded lead-acid batteries.

The 8G8D-HLT-DEKA configuration features HLT terminals and a reinforced, heat-sealed enclosure designed to resist leakage and case deformation.

Product Highlights

  • 12V nominal voltage: Designed for compatible 12V battery systems and properly configured multi-battery banks.
  • 225Ah capacity: Rated at the 20-hour discharge rate to 1.75 volts per cell.
  • 265Ah at the 100-hour rate: Higher published amp-hour capacity under slower discharge conditions.
  • Genuine gel technology: Sealed gel electrolyte construction for renewable energy applications.
  • Deep-cycle design: Built for applications involving frequent charging and discharging.
  • Maintenance-free operation: No routine electrolyte watering required.
  • Valve-regulated construction: Low-pressure, self-sealing safety vents.
  • Reinforced case: Designed to resist bulging and support structural durability.
  • Heat-sealed enclosure: Case and cover are tested to help prevent leaks.
  • Non-spillable classification: Identified by the manufacturer under applicable transportation definitions for this terminal configuration.
  • HLT terminals: Heavy-duty terminal configuration with a specified tightening torque.
  • Renewable energy applications: Suitable for compatible solar, wind, remote monitoring, and lighting systems.

Reliable Deep-Cycle Battery Storage for Solar Power

The Deka Solar 8G8D is designed to provide dependable stored energy for photovoltaic and renewable energy systems that require repeated discharge and recharge cycles.

Its deep-cycle construction makes it suitable for applications where batteries regularly supply electricity during periods of low solar production, overnight operation, or interruptions in the primary power source.

Solar Energy Storage Benefits

  • Stores electricity generated by compatible solar charging systems.
  • Provides energy for off-grid and remote applications.
  • Supports frequent deep-cycle operating conditions.
  • Reduces maintenance compared with flooded lead-acid batteries.
  • Supports expandable battery-bank designs when properly configured.
  • Provides dependable power for compatible DC loads and inverter systems.

Genuine Gel Technology for Low-Maintenance Operation

The Deka 8G8D uses genuine gel electrolyte technology within a sealed, valve-regulated lead-acid battery design.

Unlike conventional flooded batteries, gel batteries do not require routine electrolyte watering. Their sealed construction makes them a practical choice for remote installations and other applications where frequent maintenance is undesirable.

Gel Battery Advantages

  • Maintenance-free electrolyte design.
  • No routine water additions.
  • Low-pressure, self-sealing safety vents.
  • Heat-sealed case and cover.
  • Reduced spill risk under normal handling conditions.
  • Designed for repeated deep-cycle use.

Gel batteries must be charged using compatible voltage and current settings. They should not be charged using unrestricted flooded-battery profiles.


225Ah Deep-Cycle Capacity

The Deka Solar 8G8D provides a rated capacity of 225 amp-hours at the 20-hour discharge rate and 265 amp-hours at the 100-hour rate.

Battery capacity varies with discharge rate, operating temperature, battery age, and discharge depth.

Capacity Ratings

  • Nominal voltage: 12V.
  • 20-hour capacity: 225Ah.
  • 100-hour capacity: 265Ah.
  • Discharge endpoint: 1.75 volts per cell for published capacity ratings.
  • Approximate nominal energy: 2.7kWh using 12V × 225Ah.

The 2.7kWh figure is a nominal energy calculation, not a guarantee of usable energy. Actual usable capacity depends on discharge depth, system configuration, and operating conditions.


Designed for Frequent Deep Cycling

The Deka Solar gel battery is specifically designed for renewable energy and backup power applications where repeated discharge cycles are expected.

The manufacturer provides cycle-life performance information showing the relationship between depth of discharge and expected cycle life.

As with other lead-acid batteries, shallower discharge cycles generally support longer battery service life.

Battery Life Considerations

  • Depth of discharge affects cycle life.
  • Proper charge voltage helps preserve battery performance.
  • Temperature influences battery life and charging behavior.
  • Correct battery-bank sizing helps avoid excessive discharge.
  • Compatible charge controllers help maintain appropriate charging conditions.

Reinforced Construction for Demanding Applications

The Deka 8G8D uses a reinforced polypropylene container designed to resist bulging and support long-term battery durability.

Its case and cover are heat-sealed and tested to help prevent leakage, while the internal lead-calcium alloy plates are designed for dependable rechargeable battery performance.

Construction Features

  • Positive plates: Pure lead-calcium alloy.
  • Negative plates: Pure lead-calcium alloy.
  • Container: Reinforced polypropylene.
  • Electrolyte: Gelled lead-acid.
  • Safety vent: Low-pressure, self-sealing.
  • Case and cover: Heat-sealed and leak-tested.
  • Terminal configuration: HLT.

Manufacturer-Specified Solar Charging Parameters

Correct charging is essential for maintaining gel battery performance and service life.

The manufacturer publishes the following photovoltaic charging parameters for the Deka Solar 8G8D battery family.

Charging Specifications

Charging Parameter Manufacturer Specification
Bulk Charge Maximum Current 30% of the 20-Hour Ah Rating
Calculated Bulk Current Limit 67.5A
Absorption Voltage 2.35–2.40V per Cell
12V Absorption Voltage 14.10–14.40V
Float Voltage 2.24–2.26V per Cell
12V Float Voltage 13.44–13.56V
Equalize Voltage 2.40–2.43V per Cell
12V Equalize Voltage 14.40–14.58V
Published Temperature Coefficient 0.003V/°C

Important: The manufacturer lists an equalize-charge voltage, but this should not be interpreted as approval to use automatic flooded-battery equalization routines. Follow the manufacturer's complete charging instructions and use a charge controller specifically configured for this gel battery.


HLT Terminal Configuration

This product uses the 8G8D-HLT-DEKA terminal configuration.

The HLT variant has a published overall height of 11.25 inches and a maximum terminal tightening torque of 50 in-lb (5.7Nm).

Other 8G8D variants use different terminal styles and overall heights. Confirm that the HLT terminal arrangement is appropriate for the intended battery cables, enclosure, and installation.


Product Specifications

Specification Details
Brand Deka Solar
Manufacturer East Penn Manufacturing
Battery Model 8G8D
MPN 8G8D-HLT-DEKA
Battery Type Sealed VRLA Gel Lead-Acid
Application Deep-Cycle Solar and Renewable Energy Storage
Nominal Voltage 12V
20-Hour Capacity 225Ah
100-Hour Capacity 265Ah
Nominal Energy Calculation 2.7kWh at 12V × 225Ah
Published Discharge Endpoint 1.75V per Cell
Published Short-Circuit Current 5,915A
Positive Plate Material Pure Lead-Calcium Alloy
Negative Plate Material Pure Lead-Calcium Alloy
Container Material Polypropylene
Safety Vent Low-Pressure, Self-Sealing
Terminal Type HLT
Maximum Terminal Torque 50 in-lb / 5.7Nm
Length 20.44 in / 519mm
Width 10.97 in / 279mm
Overall Height 11.25 in / 286mm
Height to Terminal 11.25 in / 286mm
Approximate Weight 157 lbs / 71kg
Bulk Charge Current Limit 30% of 20-Hour Rating (67.5A)
Absorption Voltage 14.10–14.40V for 12V Battery
Float Voltage 13.44–13.56V for 12V Battery
Published Equalize Voltage 14.40–14.58V for 12V Battery
Transportation Classification Non-Spillable per Manufacturer's Referenced DOT / ICAO / IATA Definitions
Routine Watering Not Required

Applications

The Deka Solar 8G8D is designed for renewable energy and backup power applications requiring reliable rechargeable energy storage.

  • Off-grid photovoltaic systems.
  • Residential solar battery storage.
  • Remote and small-community power systems.
  • Solar-powered water pumping.
  • Wind energy storage.
  • Remote monitoring equipment.
  • Solar lighting systems.
  • Cathodic protection systems.
  • Railway signaling applications.
  • Compatible renewable energy backup systems.

Battery Bank Compatibility and Installation Considerations

The Deka Solar 8G8D is a 12V battery and can be used in appropriately designed battery banks for compatible solar charge controllers and inverter systems.

Important Installation Considerations

  • Confirm that the inverter or charge controller supports gel lead-acid batteries.
  • Use charging voltages appropriate for the battery's specifications.
  • Follow manufacturer guidance for series and parallel battery configurations.
  • Use appropriately sized cables, terminals, overcurrent protection, and disconnect equipment.
  • Provide suitable battery ventilation and environmental protection.
  • Account for the battery's approximately 157 lb weight when selecting an enclosure or mounting location.
  • Use suitable lifting and handling procedures during installation.
  • Follow all applicable electrical and battery installation codes.

Note: This is a 12V deep-cycle battery, not a complete solar battery backup system. Inverters, charge controllers, battery cables, protective equipment, and other system components are selected separately.


Frequently Asked Questions

What type of battery is the Deka Solar 8G8D?

It is a sealed, valve-regulated lead-acid battery that uses genuine gel electrolyte technology and is designed for deep-cycle renewable energy applications.

What is the battery's voltage?

The Deka 8G8D has a nominal voltage of 12V.

How many amp-hours does this battery provide?

The battery is rated at 225Ah at the 20-hour discharge rate and 265Ah at the 100-hour discharge rate.

How many kilowatt-hours does the battery store?

Using its nominal voltage and 20-hour capacity, the battery has a calculated nominal energy value of approximately 2.7kWh. Actual usable energy depends on depth of discharge, load, temperature, and battery condition.

Is the Deka 8G8D a deep-cycle battery?

Yes. The manufacturer specifically designs the Deka Solar gel battery for renewable energy applications where frequent deep cycling is required.

Is this an AGM battery?

No. This model uses gel electrolyte technology. Gel and AGM are different types of sealed VRLA lead-acid batteries and may require different charging settings.

Does this battery require maintenance?

The sealed gel design does not require routine electrolyte watering. Periodic inspection of terminals, cables, connections, and charging equipment is still recommended.

Can I use this battery for off-grid solar?

Yes. The Deka Solar 8G8D is designed for compatible photovoltaic and renewable energy storage applications, including off-grid installations.

Can I use this battery with a solar inverter?

Yes, when the inverter system is designed for the appropriate battery voltage and supports gel lead-acid battery operation. Compatibility must be verified for the specific equipment.

Can multiple batteries be connected together?

Multiple batteries may be used in a properly engineered battery bank, subject to the manufacturer's installation guidance and the voltage and capacity requirements of the connected equipment.

What is the maximum recommended bulk charging current?

The manufacturer specifies a maximum bulk charging current equal to 30% of the 20-hour capacity, which calculates to 67.5A for this 225Ah battery.

What absorption voltage should I use?

The manufacturer's published absorption range is 2.35–2.40V per cell, equivalent to 14.10–14.40V for a six-cell 12V battery. Follow the complete manufacturer charging guidance and applicable temperature compensation.

What float charging voltage is recommended?

The published float range is 2.24–2.26V per cell, equivalent to 13.44–13.56V for a 12V battery.

Should I use automatic battery equalization?

Do not apply a generic flooded lead-acid equalization program. Although the datasheet publishes an equalize voltage range, any equalization procedure should follow the manufacturer's specific instructions for this gel battery.

What terminal type does this model use?

The 8G8D-HLT-DEKA uses the manufacturer's HLT terminal configuration, with a maximum tightening torque of 50 in-lb (5.7Nm).

How large is the battery?

The battery measures approximately 20.44 inches long, 10.97 inches wide, and 11.25 inches high overall.

How much does the battery weigh?

The manufacturer's published approximate weight is 157 lbs (71kg).

Is this a spill-proof battery?

The manufacturer identifies this configuration as non-spillable under referenced transportation definitions. Proper handling, packaging, and shipping requirements still apply.

What affects the battery's cycle life?

Depth of discharge, charging practices, operating temperature, and system loading all affect battery service life. The manufacturer provides a cycle-life-versus-depth-of-discharge chart for the Deka Solar gel battery family.

Can this battery be used for solar-powered water pumping?

Yes. Solar water pumping is one of the applications specifically identified by the manufacturer.
