CW Energy 450W (Pallet of 35) TOPCon Black Solar Panel CWT450-108TNB10

CW Energy 450W (Pallet of 35) TOPCon Black Solar Panel CWT450-108TNB10

Regular price $5,499
$0.34/watt
Sale price
$157.11/per panel
700 IN STOCK
Leave a Review

CW Energy

Freight Pallet

CW Energy 450W (Pallet of 35) TOPCon Black Solar Panel CWT450-108TNB10

CW Energy 450W (Pallet of 35) TOPCon Black Solar Panel CWT450-108TNB10

Available
MPN No: CWT450-108TNFB10
Regular price $5,499
$0.34/watt
Sale price
$157.11/per panel

PLT (35 pcs)
1
2
3
4
5
6

Shipping calculated at checkout. About shipping

Data Sheet

U.S. Warehouse

Trusted by Thousands

Expert U.S. Support

View full details
Regular price $5,499

CW Energy 450W All-Black Solar Panels, Pallet of 35 | CWT450-108TNB10

FEOC Compliant
35 all-black panels rated at 450W each, providing 15.75 kW of total rated DC capacity.

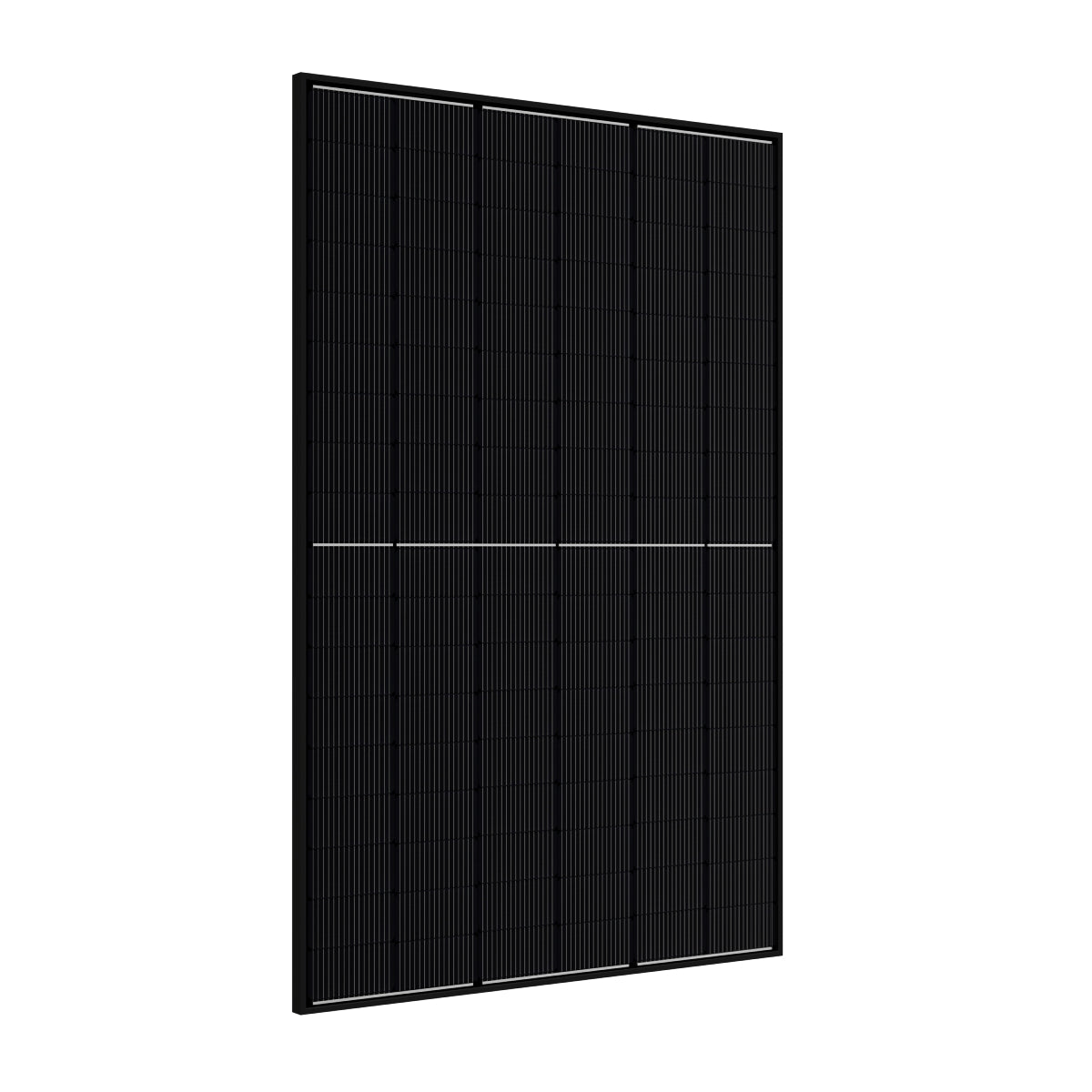

The CW Energy CWT450-108TNB10 delivers 450W of rated power and 23.04% module efficiency in a black-on-black design. Each pallet includes 35 panels for residential rooftops, commercial installations and compatible ground-mounted arrays.

The module combines 108 half-cut cells with 16-busbar technology, a black frame and coated anti-reflective glass. Its approximately 67.80 × 44.65-inch footprint offers a practical format for projects seeking high efficiency and a coordinated rooftop appearance.


Product Highlights

  • FEOC compliant.
  • 450W rated power output per panel.
  • 35 panels per pallet for 15,750W / 15.75 kW of total rated DC capacity.
  • 23.04% module efficiency under standard test conditions.
  • Black-on-black appearance with a black frame.
  • 108 half-cut cells in a 6 × 18 layout.
  • 16-busbar cell technology.
  • Anti-reflective glass with a self-cleaning coating.
  • Positive power tolerance of 0 to +5W.
  • IP68-rated junction box.
  • 25-year product warranty and 30-year performance warranty.
  • Sold by the full pallet.

High Efficiency for Available Roof Space

With 450W of rated output and 23.04% efficiency, this module provides high power density for projects where installation space matters. The half-cut cell layout and 16-busbar design support current collection and help reduce electrical losses within the module.

A Black-on-Black Rooftop Finish

CW Energy identifies this model as Black on Black, combining a black frame with a matching module appearance. The 30 mm frame profile suits installations designed around the panel’s dimensions and approved mounting requirements.

Coated Glass and Outdoor Durability

The anti-reflective glass features a coating designed to reduce surface dust accumulation and support light transmission. Cleaning and inspection may still be needed depending on rainfall, pollen, dust and other site conditions.

The module is rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa when installed according to the manufacturer’s requirements. Its operating temperature range is -40°C to +85°C.


Applications

  • Residential rooftop solar systems.
  • Commercial rooftop installations.
  • Ground-mounted solar arrays.
  • Projects seeking high efficiency and an all-black appearance.
  • Compatible grid-connected and battery-based solar systems.
  • Projects specifying FEOC-compliant solar modules.

Confirm mounting compatibility, structural capacity and electrical design before purchasing. Replacement and expansion projects require a review of the existing equipment.


What’s Included

  • 35 × CW Energy CWT450-108TNB10 450W solar panels.
  • Factory-installed module cables and connectors.
  • Pallet packaging.

Total rated capacity: 15,750W / 15.75 kW DC.


Specifications

Specification Details
Brand CW Energy / CW Enerji
Model CWT450-108TNB10
Appearance Black on Black
FEOC Compliance FEOC compliant
Rated Power per Panel 450W
Panels per Pallet 35
Total Rated Power per Pallet 15,750W / 15.75 kW DC
Module Efficiency 23.04%
Cell Configuration 108 half-cut cells, 6 × 18
Busbar Technology 16BB
Cell Dimensions 182 × 91 mm
Maximum Power Voltage (Vmp) 33.14V
Maximum Power Current (Imp) 13.58A
Open-Circuit Voltage (Voc) 39.31V
Short-Circuit Current (Isc) 14.38A
Power Tolerance 0 to +5W
Maximum System Voltage 1500V DC
Maximum Series Fuse Rating 25A
Dimensions 1722 × 1134 × 30 mm / approximately 67.80 × 44.65 × 1.18 in
Weight per Panel 47.29 lb / 21.45 kg
Frame Color Black
Glass Features Anti-reflective coating with self-cleaning properties
Junction Box IP68
Junction Box Cable Length 350–1600 mm, depending on supplied configuration
Protection Class Class II
Fire Classification UL Type 29 / IEC Class C
Operating Temperature -40°C to +85°C
Temperature Coefficient of Pmax -0.30%/°C
Temperature Coefficient of Voc -0.260%/°C
Temperature Coefficient of Isc +0.040%/°C
Maximum Wind Load 2400 Pa
Maximum Snow Load 5400 Pa
Product Warranty 25 years
Performance Warranty 30 years
Referenced Module Standards IEC 61215, IEC 61730-1, IEC 61730-2, IEC 63209-1, UL 61730-1, UL 61730-2

Warranty

CW Energy lists a 25-year product warranty and a 30-year performance warranty for the CWT450-108TNB10. Coverage and warranted output levels are subject to the manufacturer’s full warranty terms, installation requirements and exclusions.


Frequently Asked Questions

How many panels are included?

Each pallet contains 35 panels rated at 450W each, totaling 15.75 kW of rated DC capacity under standard test conditions.

Are these panels FEOC compliant?

Yes. This module configuration is FEOC compliant. Contact our team for available product documentation.

Are these panels all black?

Yes. The manufacturer identifies the CWT450-108TNB10 as Black on Black with a black frame. Actual appearance can vary with lighting and viewing angle.

Can these panels be installed on a roof?

Yes, when the roof structure, racking and installation design accommodate the module’s dimensions, weight and manufacturer requirements.

Can these panels be used with microinverters?

Compatibility depends on the microinverter’s input voltage, current limits and approved module pairing requirements. Confirm compatibility using the exact panel and microinverter specifications.

Can these panels charge a battery system?

Yes, through a compatible solar inverter or charge controller. The array must stay within the equipment’s voltage and current limits.

Does the self-cleaning coating eliminate maintenance?

No. The coating is designed to reduce surface dust accumulation, but panels may still require cleaning and inspection. Follow the manufacturer’s maintenance instructions.

Which cables and connectors are supplied?

The datasheet lists cable lengths from 350 to 1600 mm but does not identify a connector model. Contact our team to confirm the supplied configuration if your project requires a specific cable length or connector.

Can I purchase fewer than 35 panels?

This listing is sold by the full pallet of 35 panels. Contact our team for help finding smaller-quantity options.


About CW Energy

CW Energy manufactures photovoltaic modules for solar installations. The CWT450-108TNB10 combines half-cut cells, 16-busbar technology and a black-on-black finish.
