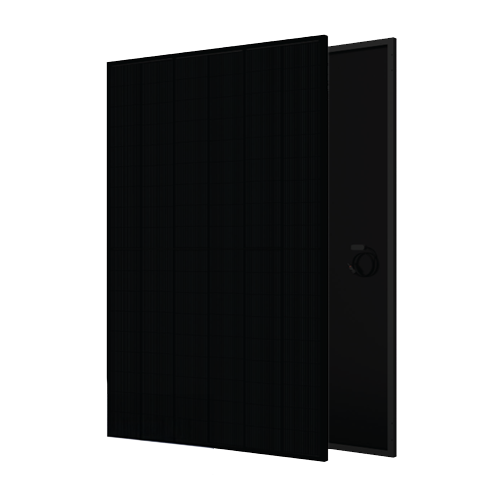

CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
MPN No: CWT410-108PMFB10
Expected ship date Nov 26 - Dec 03
In Stock
$151.20
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
Regular price
$151.20
Sale price
$0.36
/watt
New
698 IN STOCK
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
In Stock
MPN No: CWT410-108PMFB10
Regular price
$151.20
Sale price
$0.36
/watt
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$151.20
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
MPN No:
CWT410-108PMFB10
Expected ship date Nov 26 - Dec 03
In Stock
CW Energy 410W Mono All Black Solar Panel CWT410-108PMFB10
The CW Energy CWT410-108PMFB10 is a high-efficiency, monofacial 410W solar panel engineered for residential and commercial applications requiring premium aesthetics and reliable long-term performance. Featuring an all-black design, PERC monocrystalline half-cut cells, and industry-leading durability, this panel is optimized for rooftops where appearance and power density matter.
With strong performance in low-light conditions, robust mechanical load ratings, and a 30-year linear performance warranty, the CWT410-108PMFB10 delivers dependable energy production for decades.
Key Technical Details
-
410W monofacial output with 21.0% module efficiency
-
108 half-cut monocrystalline PERC cells (182 × 91 mm)
-
All-black construction: black frame and black backsheet
-
Optimized for low-light performance
-
Positive power tolerance (0 ~ +5W)
-
IEC-certified durability with 2400 Pa wind load and 5400 Pa snow load
-
IP68 junction box for maximum protection
-
Designed for 1500V DC systems
-
Strong thermal resilience from −40°C to +85°
Warranty
-
25-Year Product Warranty
-
30-Year Linear Performance Warranty
This extended warranty protection ensures long-term reliability and consistent power output throughout the module’s lifetime.
Best Use Cases
-
Residential rooftop systems requiring an all-black aesthetic
-
Architectural and design-driven projects
-
Commercial rooftop arrays where appearance and uniformity are important
-
Flush-mount and low-profile installations
-
Systems where bifacial generation is not necessary
-
High-efficiency upgrades or replacements in existing arrays
Product Specification Table
| Category | Specification |
|---|---|
| Model | CWT410-108PMFB10 |
| Rated Power (Pmax) | 410W |
| Module Efficiency | 21.0% |
| Voltage at Max Power (Vmp) | 31.50 V |
| Current at Max Power (Imp) | 13.02 A |
| Open Circuit Voltage (Voc) | 37.50 V |
| Short Circuit Current (Isc) | 13.85 A |
| Power Tolerance | 0 ~ +5W |
| Cell Type | Monocrystalline PERC, half-cut |
| Cell Dimensions | 182 × 91 mm |
| Cells per Module | 108 (18 × 6) |
| Dimensions | 67.80 × 44.65 × 1.18 inches |
| Weight | 21.0 kg (46.30 lbs) |
| Frame Color | Black |
| Backsheet Color | Black |
| Junction Box | IP68, 3-diode |
| Cable Length | 350–1600 mm |
| Max System Voltage | 1500V DC |
| Operating Temperature | −40°C to +85°C |
| Maximum Series Fuse Rating | 25A |
| Wind Load Rating | 2400 Pa |
| Snow Load Rating | 5400 Pa |
| Packaging | 26 panels per pallet; 910 per 40' HQ container |
