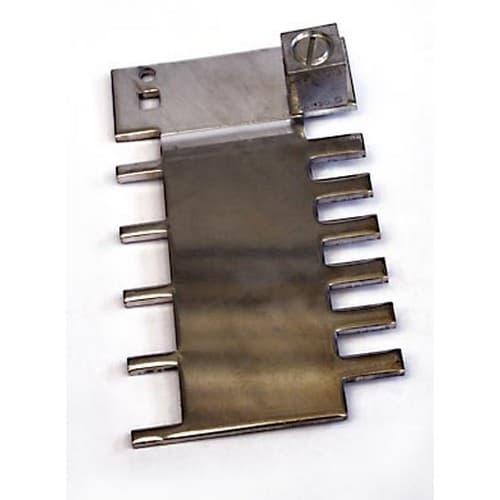

MidNite Solar 200 Amp MNPV12-BUSBAR (MNPV12 Combiner) Copper Bus Plate

MidNite Solar 200 Amp MNPV12-BUSBAR (MNPV12 Combiner) Copper Bus Plate

Regular price $40.83
LESS THAN 50
Leave a Review

MidNite Solar 200 Amp MNPV12-BUSBAR (MNPV12 Combiner) Copper Bus Plate

MidNite Solar 200 Amp MNPV12-BUSBAR (MNPV12 Combiner) Copper Bus Plate

MidNite Solar
MPN No: MNPV12-BUSBAR
In Stock
Regular price $40.83

1
2
3
4
5
6

Shipping calculated at checkout. About shipping

delivery icon
Expected ship date Oct 12 - 19
delivery icon

We offer multiple secure payment options for your convenience

American Express Apple Pay Diners Club Discover JCB Mastercard PayPal Venmo Visa
delivery icon

We offer multiple secure payment options for your convenience

American Express Apple Pay Diners Club Discover JCB Mastercard PayPal Venmo Visa
Data Sheet

View full details
Regular price $40.83

MidNite Solar 200 Amp MNPV12-BUSBAR (MNPV12 Combiner) Copper Bus Plate

The MidNite Solar MNPV12 Combiner is a robust and versatile solution for managing your solar photovoltaic (PV) systems. This NEMA 4X enclosure is designed to combine up to 12 PV strings, simplifying your wiring and providing a safe, reliable connection point. Ideal for both residential and commercial solar installations, the MNPV12 supports up to 600VDC and can be configured for use with transformerless inverters. Its durable aluminum construction and thoughtful design make it a top choice for solar professionals.

Key Benefits:

Efficient Solar Wiring: Combines up to 12 PV strings, streamlining your solar panel connections and reducing clutter.

Durable and Weatherproof: The all-aluminum, powder-coated housing is built to withstand the elements and resist rust and degradation from sun exposure.

Versatile Configuration: Adaptable for use with both standard and transformerless inverters, and can be set up for single or dual combiner operation.

Enhanced Safety: Features a dead front cover for added safety after wiring, and touch-safe fuse holders to prevent accidental contact.

Flexible Installation: Knockouts on the bottom and sides allow for easy PV input and output, and the top surface can accommodate conduit from directly above.

Special Technology:

Touch Safe Fuse Holders: The MNPV12 utilizes MNTS touch-safe fuse holders and fuses rated for 600VDC, enhancing safety during operation and maintenance.

Transformerless Inverter Compatible: Designed to work with transformerless inverters by separating the copper busbars, providing flexibility for modern solar setups.

MC Connector Ready: PV input knockouts are sized to accept bulkhead mount MC connectors, simplifying and speeding up installation.

Warranty:

The MNPV12-BUSBAR comes with a 5-year limited warranty, covering manufacturer defects in materials and workmanship. Warranty support is valid in the U.S. and Canada.

Best Use:

  • Residential solar power systems

  • Commercial solar energy installations

  • Off-grid solar applications

  • PV systems requiring up to 12 string combining

  • Systems using transformerless inverters

  • DC load centers

Specifications Table

Specification Data
Product Name MNPV12-BUSBAR
Manufacturer MidNite Solar
Compatible Combiner Models MNPV12, MNPV12-250
Max Current Rating 200 Amps continuous
Material Tin-plated copper
Thickness 1/8 inch
Configuration Reversible legs for flexible installation
Connection Method Box lug (included hardware)
Supported Devices Up to 10 fuse holders or 12 breakers
Mounting Hardware Included Yes – 10-32 screws, star washer, box lug
Dimensions (approx.) ~10.5 × 0.75 × 0.125 in
Weight (approx.) ~0.6 lbs
Compliance NEC-compatible, safe for 600V DC systems
Warranty 5 Years
