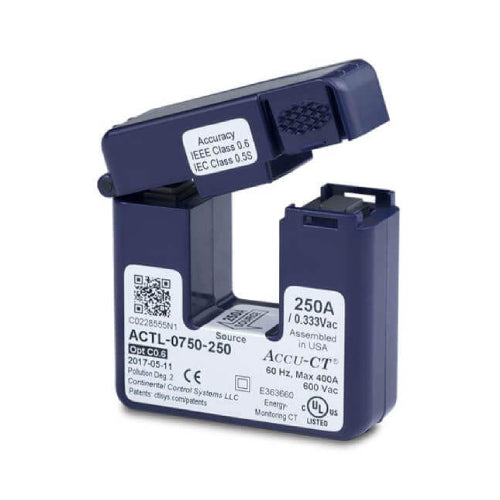

CCS ACTL Series Split-Core Current Transformers - Accu-CT up to 250A

The patented Accu-CT split-core current transformer technology delivers exceptional linearity and low-end accuracy. Developed specifically for solar inverter, variable speed motor drive, and other applications where there are large variations in current. The 100:1 turn down ratio (highest to lowest current) of Accu-CTs is ten times better than industry standard CTs. The unique one-handed opening and closing mechanism makes installation a snap.

ACTL series CTs are available in both standard and revenue grade accuracy models. Revenue grade models ship with a serialized calibration certificate .

SPECIFICATIONS

Model CCS
Series ACTL Series
Manufacturer CCS


GENERAL SPECIFICATIONS

Window opening 0.75 in. x 0.75 in.
Accuracy 0.75%

Warranty

  • Manufacturer 25 Years Lifetime Limited Warranty

* Refer to warranty document for terms and conditions
Documentation

Data Sheet


Detailed Information

The patented Accu-CT ACTL-1250-400 split-core current transformer technology delivers exceptional linearity and low-end accuracy. Developed specifically for solar inverter, variable-speed motor drive, and other applications where there are large variations in current. The 100:1 turndown ratio of Accu-CTs is ten times better than industry standard CTs. The unique one-handed opening and closing mechanism make installation a snap.

High reliability

built-in burden resistor provides 0.333 Vac voltage output at the rated full-scale currentno shorting blocks needed

Glove-friendly: easy to open and install with one hand while wearing safety gloves

Certification

UL 2808 Listed meets 2017 NEC code requirements for field-installed current transformers

IEEE C57.13 and IEC 60044-1 accuracy: over the full temperature range and down to below 1% of rated current
