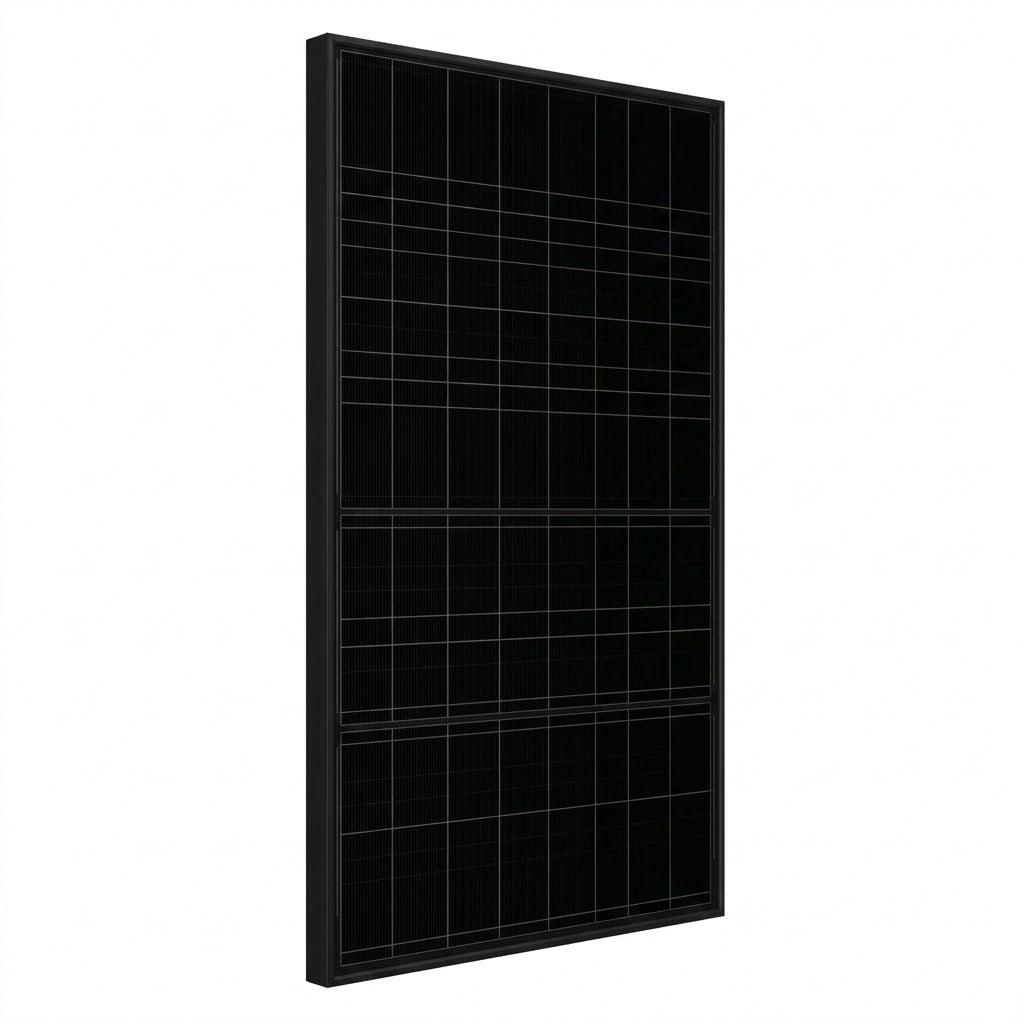

Canadian Solar 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
MPN No: CS6.2-48TM-435
Contact us for Delivery Date
Out Of Stock
$239.25
Canadian Solar 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
Canadian Solar 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
Regular price
$239.25
$0.55/watt
SOLD OUT
Canadian Solar 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
Canadian Solar 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
Out Of Stock
MPN No: CS6.2-48TM-435
Regular price
$239.25
$0.55/watt
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$239.25
≥ 8
Canadian 435W TOPHiKu6 N Type All Black Solar Panel CS6.2-48TM-435
Tier 1 Solar Panel
California Energy Commission (CEC) Listed
Built using advanced N-type cell technology, the panel provides excellent resistance to PID and LeTID while maintaining strong performance in high-temperature environments. With a module efficiency exceeding 21.8% and optimized cell architecture, the CS6.2-48TM series maximizes energy yield while reducing overall system costs.
Key Technology
-
N-Type TOPCon Cell Technology
Provides improved efficiency, reduced degradation, and higher long-term energy production compared to conventional P-type modules. -
Excellent Anti-LeTID & Anti-PID Performance
Advanced cell processing technology reduces degradation and improves long-term reliability. -
Improved Temperature Performance
Low temperature coefficient of approximately -0.29% / °C improves power output in hot climates. -
High Mechanical Strength
Designed to withstand heavy snow loads up to 8100 Pa and wind loads up to 5600 Pa. -
Micro-Crack Resistance
Improved module structure minimizes the impact of micro-cracks for greater long-term reliability. -
All-Black Aesthetic Design
Sleek appearance makes the module ideal for residential rooftop solar installations.
Best Uses
-
Residential Rooftop Solar Systems
High efficiency and all-black design provide excellent aesthetics and energy production for home installations. -
Commercial Rooftop Projects
High energy density improves system performance for commercial solar installations. -
High-Temperature Environments
Low temperature coefficient improves performance in warm climates.
Warranty
- Product Warranty: 25 Years (materials & workmanship)
- Performance Warranty: 30-Year linear power warranty
- First-Year Degradation: ≤1%
- Annual Degradation: ≤0.4% thereafter
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Canadian Solar (CSI Solar Co., Ltd.) |
| Model | CS6.2-48TM-435H |
| Module Series | TOPHiKu6 (All-Black) |
| Cell Technology | N-Type TOPCon |
| Cell Configuration | 96 cells [2 × (8 × 6)] |
| Maximum Power (Pmax) | 435 W |
| Module Efficiency | 21.8% |
| Maximum Power Voltage (Vmp) | 30.0 V |
| Maximum Power Current (Imp) | 14.51 A |
| Open Circuit Voltage (Voc) | 35.2 V |
| Short Circuit Current (Isc) | 15.61 A |
| Maximum System Voltage | 1500 V (IEC/UL) |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Nominal Operating Cell Temperature | 42 ± 3°C |
| Dimensions | 69.4 × 44.6 × 1.38 in |
| Weight | 48.1 lb |
| Front Glass | 3.2 mm tempered glass with anti-reflective coating |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 rated, 3 bypass diodes |
| Cable | 4 mm² (IEC) / 12 AWG (UL) |
| Cable Length | 1550 mm (+) / 1100 mm (-) |
| Connector | T6 or MC4-EVO2A |
| Fire Rating | Type 1 / Type 2 / Class C (depending on certification) |
| Packaging | 31 modules per pallet / 806 modules per 40' HQ container |
About Canadian Solar:
Canadian Solar is a global Tier-1 photovoltaic manufacturer and energy storage provider with more than two decades of industry experience. The company has delivered over 165 GW of solar modules worldwide and is known for high-performance module technology and reliable solar solutions for residential, commercial, and utility-scale projects.
High-Efficiency N-Type Solar Module for Rooftop Installations
The Canadian Solar CS6.2-48TM-435H combines advanced N-type cell technology, strong mechanical durability, and modern all-black aesthetics to deliver reliable performance and high energy yield for residential and commercial solar systems.
