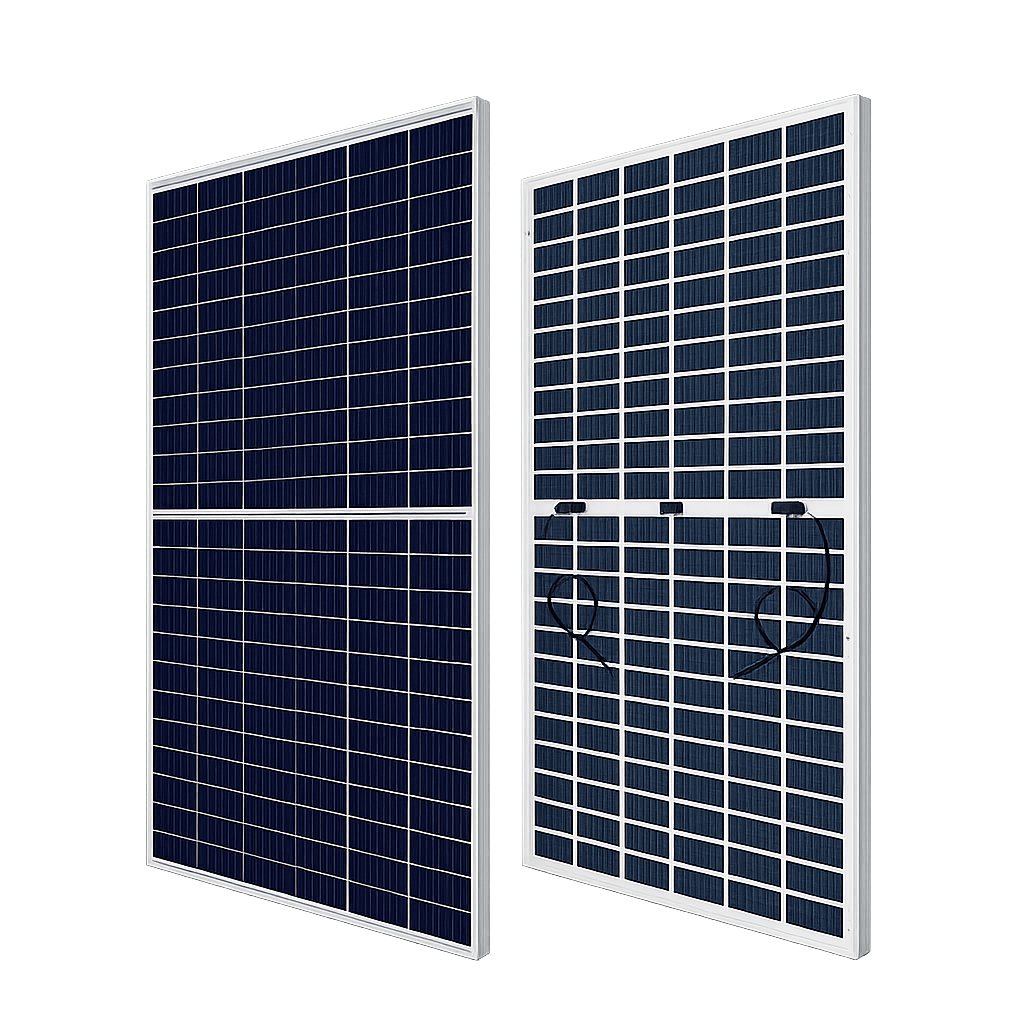

Canadian Solar 410W (Pallet of 33) BiHiKu Bifacial Poly PERC Solar Panels CS3W-410PB-AG
Bifacial Gain of up to 533W
The Canadian Solar CS3W-410PB-AG BiHiKu module delivers 410W of front-side output with bifacial energy generation for additional rear-side power gain. Built with dual-glass construction and a durable anodized aluminum frame, this module is designed for long-term performance in residential, commercial, and ground-mount solar applications.
Featuring bifacial Poly PERC cell technology, the BiHiKu series can generate up to 30% additional power from the rear side depending on mounting conditions and ground reflectivity. The module also offers strong environmental durability with a maximum snow load rating of 5400 Pa and wind load rating of 2400 Pa.
Key Features
- 410W nominal power output
- Bifacial Poly PERC solar module
- Up to 30% additional rear-side power gain
- 18.35% module efficiency
- Dual-glass module construction
- Better shading tolerance
- Lower hot spot temperature design
- Heavy snow load rating up to 5400 Pa
- Wind load rating up to 2400 Pa
- IP68-rated junction box
- 1500V maximum system voltage
- Positive power tolerance: 0 to +5W
- 12-year enhanced product warranty
- 30-year linear power output warranty
Electrical Specifications (STC)
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 410W |
| Module Efficiency | 18.35% |
| Voltage at Pmax (Vmp) | 39.1V |
| Current at Pmax (Imp) | 10.49A |
| Open Circuit Voltage (Voc) | 47.6V |
| Short Circuit Current (Isc) | 11.06A |
| Power Tolerance | 0 ~ +5W |
| Maximum System Voltage | 1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
Temperature Characteristics
| Specification | Value |
| Temperature Coefficient (Pmax) | -0.37% / °C |
| Temperature Coefficient (Voc) | -0.29% / °C |
| Temperature Coefficient (Isc) | 0.05% / °C |
| Nominal Module Operating Temperature | 41 ± 3°C |
Mechanical Specifications
| Specification | Value |
| Cell Type | Poly-crystalline |
| Cell Arrangement | 144 [2 x (12 x 6)] |
| Dimensions | 2132 x 1048 x 30 mm |
| Dimensions (inches) | 83.9 x 41.3 x 1.2 in |
| Weight | 28.2 kg (62.2 lbs) |
| Front / Back Glass | 2.0 mm heat strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Connector Type | T4 series or MC4 |
| Cable | 12 AWG |
| Pallet Quantity | 33 panels |
Certifications
- IEC 61215 / IEC 61730
- UL 1703
- CEC Listed (US)
- FSEC (US Florida)
Best Applications
- Residential solar systems
- Commercial rooftop installations
- Ground-mount solar arrays
- High-albedo bifacial installations
- Snow-prone environments
- Utility-scale projects
Warranty
- 12-Year Enhanced Product Warranty
- 30-Year Linear Power Output Warranty
Need help with system sizing, inverter compatibility, racking selection, or a full permit-ready solar design? Ask us about PowerPlan Solar Design services.
