MidNite Solar 50A Bypass Kit Double Pole Breakers MNSW-SLIDER-50

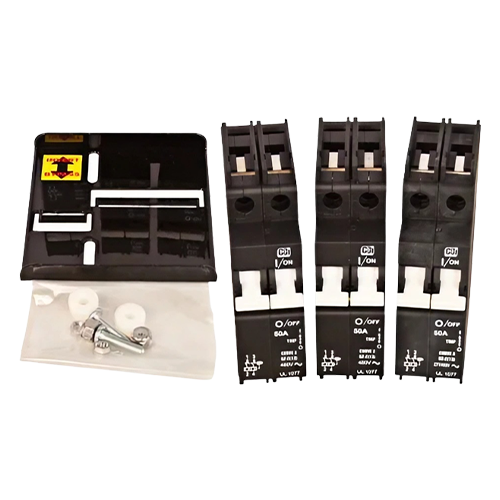

The MidNite Solar MNSW-SLIDER-50 is a compact, code-compliant manual bypass kit engineered for use with Schneider Electric SW inverter systems. This UL-listed assembly features three pre-wired 50A double-pole breakers and a mechanical slider that safely transfers loads between grid, inverter, or bypass positions. Designed to reduce installation time while enhancing safety and serviceability, it’s the ideal AC load transfer solution for off-grid or hybrid solar installations.
Key Benefits
50A Load Capacity: Supports high-current residential or light commercial inverter systems.
Double Pole Breakers: Handles both line and neutral for full AC disconnect compliance.
Manual Bypass Operation: Allows users to isolate the inverter for maintenance without power interruption.
Space-Saving Design: Integrated into a single steel bracket to simplify wall-mount installations.
Compatible with Schneider SW: Pre-configured wiring matches Schneider’s 120/240 VAC inverter specs.
Special Technology
Three Breaker Layout: Includes inverter input, AC input, and AC load breakers for complete switching.
Interlocked Slider: Prevents simultaneous connection of incompatible breaker positions to ensure safe operation.
Color-Coded Labels: Clear markings for inverter, utility, and load terminals help avoid wiring errors.
Universal Mounting: Pre-drilled steel backplate for clean installation inside or beside power panels.
Warranty
MidNite Solar backs the MNSW-SLIDER-50 with a 5-year limited warranty covering workmanship and component defects.
Best Use
Schneider SW Inverter Systems: Provides NEC-compliant AC bypass and transfer functionality.
Off-Grid Solar Systems: Ensures uninterrupted load operation during inverter servicing or upgrades.
Battery Backup Installations: Allows switching between utility and battery-backed inverter outputs.
Hybrid Solar Projects: Ideal for residential systems requiring manual override capabilities.
Specifications Table
| Specification | Data |
|---|---|
| Model Number | MNSW-SLIDER-50 |
| Breaker Rating | 50 Amps |
| Breaker Type | Double Pole (3 total) |
| System Voltage | 120/240 VAC |
| Bypass Mechanism | Manual Slider Interlock |
| Inverter Compatibility | Schneider Electric SW Series |
| Enclosure Type | Open-Backed Steel Mounting Plate |
| Certification | UL Listed Components |
| Installation | Wall Mount or Inside E-Panel |
| Dimensions (H × W × D) | Approx. 12 × 8 × 4 in |
| Weight | Approx. 4.5 lbs |
| Warranty | 5-Year Limited Warranty |
