BLUETTI AC500 & B300K Combo Modular LifePO4 Portable Power Station
AC500 + B300K
Specifications

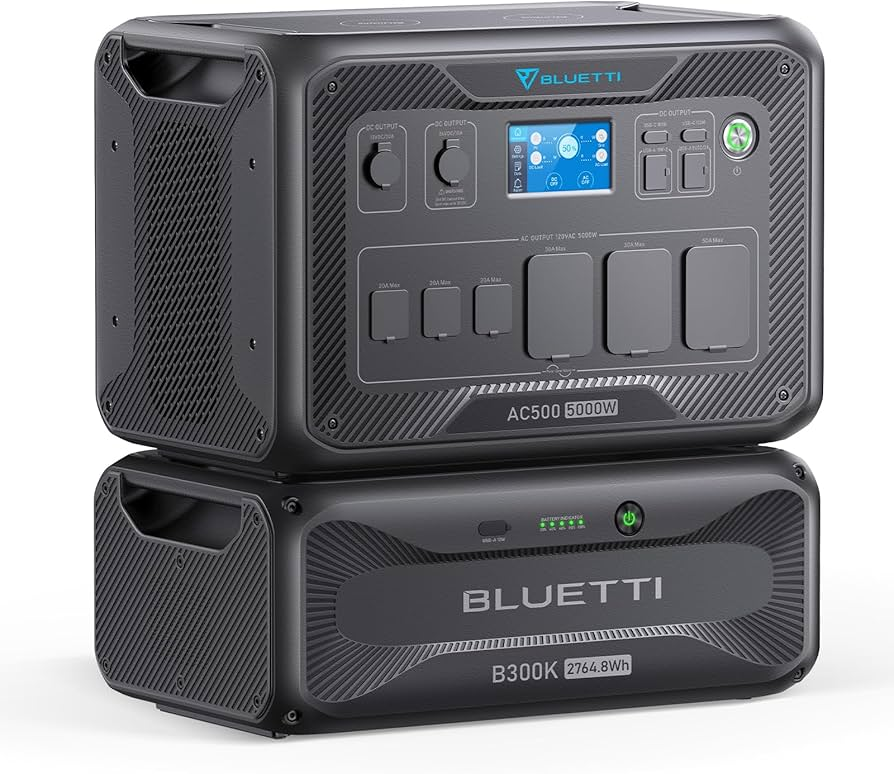

BLUETTI AC500 & B300K Combo: Unmatched Power for Your Home, RV, & Off-Grid Adventures
1 x AC500 + 1 x B300K
Thanks to the game-changing parallel connection, you can combine two AC500 units with up to 12 B300K batteries, unlocking a 240V output and an astounding 33,177.6Wh capacity. Slash your electricity bills, reduce grid dependence, and enjoy non-stop power for days on end.
Shop extra B300K expansion batteries here.
Why the Combo:
Unleash robust, reliable, and clean energy with the BLUETTI AC500 & B300K combo. This modular portable power station is engineered to provide unparalleled home battery backup, empower your RV adventures, and deliver sustainable power for any off-grid endeavor.
With a commanding 5,000W continuous output (and a staggering 10,000W surge capability) and the enduring safety of a LiFePO4 battery, the AC500 and B300K redefine energy independence.
The AC500 is not just a solar generator; it's the brain of a highly adaptable power ecosystem. Designed to pair seamlessly with the B300K expansion battery, this combo offers a starting capacity of 3,072Wh, which can be dramatically expanded by connecting additional B300K units, reaching up to an astounding 16.5 kWh.
This ensures you have ample power to run everything from essential home appliances during an outage to power-hungry tools on a remote job site.
Key Benefits
- Unrivaled Power Output: Experience a continuous 5,000W of pure sine wave AC power, capable of running demanding devices like refrigerators, air conditioners, power tools, and more. The 10,000W surge capacity handles initial power spikes with ease.
- Modular & Expandable Capacity: Start with 3,072Wh and grow your energy storage as your needs evolve. Connect up to six B300K battery modules to achieve a colossal 16.5kWh, providing days of uninterrupted power.
- Superior LiFePO4 Battery Technology: Benefit from the inherent safety, longevity, and efficiency of automotive-grade LiFePO4 batteries, offering over 4,000 life cycles to 80% original capacity. This means years of dependable performance.
- Versatile Charging Options: Recharge your system with lightning-fast AC charging (up to 5,000W), efficient solar input (up to 3,000W), or even car charging. Combine AC and solar for an incredible 8,000W dual charging capability.
- 24/7 UPS Functionality: Integrated Uninterruptible Power Supply (UPS) ensures a seamless transition to battery power in milliseconds during a grid outage, protecting sensitive electronics and keeping your essential devices running without interruption.
- Smart Control & Monitoring: Take complete control with the intuitive BLUETTI smartphone app via Wi-Fi and Bluetooth. Monitor power consumption, adjust settings, and receive real-time updates from anywhere.
- Quiet & Clean Energy: Operate silently with no fumes, unlike traditional gas generators, making it perfect for indoor use, quiet campsites, and sensitive environments.
- Multiple Outlets: With 16 versatile outlets, including standard AC, USB-A, 100W USB-C PD, 12V/30A RV, and wireless charging pads, you can power nearly all your devices simultaneously.
- Split Phase Bonding (with two AC500 units): For even heavier demands, connect two AC500 units with additional B300K batteries to achieve 240V output and a massive 33.1kWh capacity, capable of powering entire homes with large appliances.
Best Uses
- Home Emergency Backup: Prepare for blackouts and keep your essential home appliances, lighting, and communication devices operational.
- RV & Van Life: Power your entire RV, run appliances, charge electronics, and enjoy the comforts of home on the road, free from noisy generators.
- Off-Grid Living: Establish a self-sufficient power source for cabins, tiny homes, workshops, or any remote location where grid power is unavailable.
- Camping & Outdoor Adventures: Enjoy silent, emission-free power for all your camping gear, from portable refrigerators to electric grills.
- Job Sites: Run power tools and equipment efficiently without the need for noisy and fuel-dependent generators.
- Disaster Preparedness: Be ready for anything with a reliable energy source that can power critical medical devices and communication systems.
Warranty
Enjoy peace of mind with BLUETTI's comprehensive 4-year warranty on both the AC500 and B300K. This commitment to quality and customer satisfaction ensures your investment is protected for years to come.
Product Specifications
| Feature | BLUETTI AC500 | BLUETTI B300K |
|---|---|---|
| AC Output | 5,000W (10,000W Surge) Pure Sine Wave | (N/A - Expansion Battery) |
| Capacity | 0 Wh (Requires B300K for operation) | 3,072Wh (51.2V, 54Ah) |
| Battery Type | (N/A) | LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles | (N/A) | 4,000+ cycles to 80% original capacity |
| Max. Expandable Capacity | Up to 16.5kWh (with 6 x B300K) | (N/A - Unit of expansion) |
| AC Input | Up to 5,000W (with 2+ B300K) | (Charges via connected AC500) |
| Solar Input | Up to 3,000W (12-150VDC, 15A) | (Charges via connected AC500) |
| Car Input | 12V/24V | (Charges via connected AC500) |
| Dual Charging | Up to 8,000W (AC + Solar) | (N/A) |
| USB-A Output | 2 x 5V/3A, 2 x 18W | 1 x 12W (5V/2.4A) |
| USB-C Output | 2 x 100W Max. PD | (N/A) |
| DC Outlets | 1 x 12V/30A (RV), 1 x 24V/10A (Car) | (N/A - Expansion Ports Only) |
| Wireless Charging | 2 x 15W Max. | (N/A) |
| App Control | Yes (Wi-Fi & Bluetooth) | (Controlled via AC500) |
| UPS Function | Yes (24/7 EPS Home Backup) | (Integrated with AC500 system) |
| Dimensions (LxWxH) | 20.5 x 12.8 x 14.1 in (52 x 32.5 x 35.8 cm) | 20.67 x 12.87 x 8.23 in (52.5 x 32.7 x 20.9 cm) |
| Weight | 66.2 lbs (30 kg) | 65.04 lbs (29.5 kg) |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) | -4°F to 104°F (-20°C to 40°C) |
| Warranty | 48 Months | 48 Months |
About Bluetti:
Bluetti is a leading innovator in portable power solutions, offering high-capacity solar generators and battery systems for off-grid, home backup, and outdoor use. Known for reliability and clean energy tech, Bluetti empowers sustainable energy independence.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 4-year performance guarantee directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the BLUETTI AC500 compatible with solar panels?
Yes, the AC500 supports a wide range of solar panels. It features an MPPT solar input that allows up to 3,000W of solar charging. Be sure your solar array voltage and current fall within the supported range.
Do I need the B300K battery to use the AC500?
Yes, the AC500 requires at least one B300K battery to operate. The AC500 is a modular inverter system and does not contain an internal battery.
How can I monitor the performance of the AC500?
You can monitor the AC500 using the BLUETTI app via Bluetooth or Wi-Fi. The app provides real-time data on input/output power, battery status, and system performance.
What happens during a power outage?
The AC500 provides seamless backup power when the grid goes down. With its UPS function, it switches to battery power instantly, ensuring uninterrupted operation for connected devices.
How do I maintain the BLUETTI AC500 system?
Minimal maintenance is required. Keep the unit in a clean, well-ventilated space and periodically check for firmware updates via the app. Avoid exposure to water, extreme heat, or freezing temperatures.
What is the efficiency of the BLUETTI AC500?
The AC500 offers high system efficiency with pure sine wave output. Exact efficiency may vary based on usage but is generally above 90%. Refer to BLUETTI’s official specifications for details.
What are the supported input and output voltages?
The AC500 supports 100–240V AC output and a wide solar input voltage range of 150–500V DC. It is capable of powering high-demand appliances and tools. Refer to the datasheet for complete electrical specs.
Which communication protocols does the AC500 use?
The AC500 supports Wi-Fi and Bluetooth connectivity for remote monitoring and control. It can be updated and managed through the BLUETTI mobile app.
