≥ 36

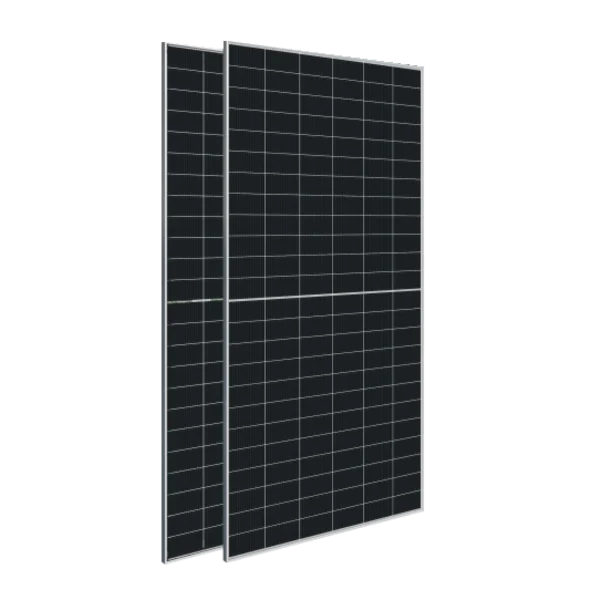

Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
MPN No: CHSM72N(DG)/F-BH-585W
Expected ship date May 29 - Jun 05
In Stock
$9,499.75
Pallet
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
Regular price
$9,499.75
$0.45/watt
Sale price
$263.88/per panel
LESS THAN 50
Pallet
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
Available
MPN No: CHSM72N(DG)/F-BH-585W
Regular price
$9,499.75
$0.45/watt
Sale price
$263.88/per panel
Expected ship date May 29 - Jun 05
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$9,499.75
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels CHSM72N(DG)/F-BH-585W
MPN No:
CHSM72N(DG)/F-BH-585W
Expected ship date May 29 - Jun 05
≥ 36
Astronergy 585W ASTRO N5 (Pallet of 36) TOPCon Bifacial Solar Panels
CHSM72N(DG)/F-BH-585W
This is a high-efficiency N-type bifacial dual-glass solar module from the ASTRO N5 series, engineered for commercial and large ground-mount solar installations.
Bifacial architecture enables additional rear-side energy gain. The dual-glass construction enhances durability, PID resistance, and reliability in demanding environmental conditions.
Key Technology
-
N-Type TOPCon Cell Technology
Provides higher efficiency, lower degradation, and strong resistance to LID and PID for long-term performance. -
Bifacial Dual-Glass Design
Enables rear-side energy gain, increasing total system output and reducing LCOE. -
144 Half-Cut Cell Architecture
Reduces resistive losses and improves performance under partial shading conditions. -
Low Temperature Coefficient
Features a low Pmax temperature coefficient of -0.29%/°C for better performance in high-temperature environments. -
Enhanced Mechanical Strength
Certified to withstand 5400 Pa front load and 2400 Pa rear load for reliable installation in harsh conditions. -
Low BOS & LCOE
Optimized design reduces balance-of-system costs and improves overall project economics.
Best Uses
-
Commercial & Industrial Projects
Ideal for large rooftop and ground-mounted systems requiring high efficiency and durability. -
Bifacial Ground Mount Systems
Maximizes energy production with rear-side irradiance gain.
Warranty
- Product Warranty: 15 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: ≤1.0%
- Annual Degradation: ≤0.4% (Years 2–30)
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Astronergy |
| Model | CHSM72N(DG)/F-BH-585W |
| Cell Technology | N-Type Monocrystalline TOPCon, Bifacial Dual Glass |
| Cell Configuration | 144 Half Cells |
| Maximum Power (Pmax) | 585 W |
| Module Efficiency | 22.6% |
| Maximum Power Voltage (Vmp) | 43.27 V |
| Maximum Power Current (Imp) | 13.52 A |
| Open Circuit Voltage (Voc) | 51.50 V |
| Short Circuit Current (Isc) | 14.36 A |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Dimensions (inches) | 89.69 × 44.65 × 1.18 in |
| Weight | 70.8 lb |
| Front / Back Glass | 2.0 mm / 2.0 mm tempered glass |
| Frame | Silver anodized aluminum alloy |
| Junction Box | IP68 rated, 3 diodes |
| Connector | HCB40 / MC4-EVO2A compatible |
| Cable Length | (+) 350 mm / (-) 250 mm (customizable) |
| Output Cable | 4 mm² / 12 AWG |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear) |
| Pallet Quantity | 36 modules per pallet |
About Astronergy:
Astronergy, a subsidiary of Chint Group, is a global Tier 1 solar module manufacturer specializing in advanced N-type TOPCon photovoltaic technology. The ASTRO N5 series is designed to deliver high efficiency, excellent reliability, and lower levelized cost of energy (LCOE) for utility-scale and commercial solar projects worldwide.
High-Efficiency Bifacial Power for Large-Scale Solar
The Astronergy CHSM72N(DG)/F-BH-585W combines N-type TOPCon technology, bifacial energy gain, low degradation rates, and durable dual-glass construction to deliver reliable, high-output performance for modern solar installations.
