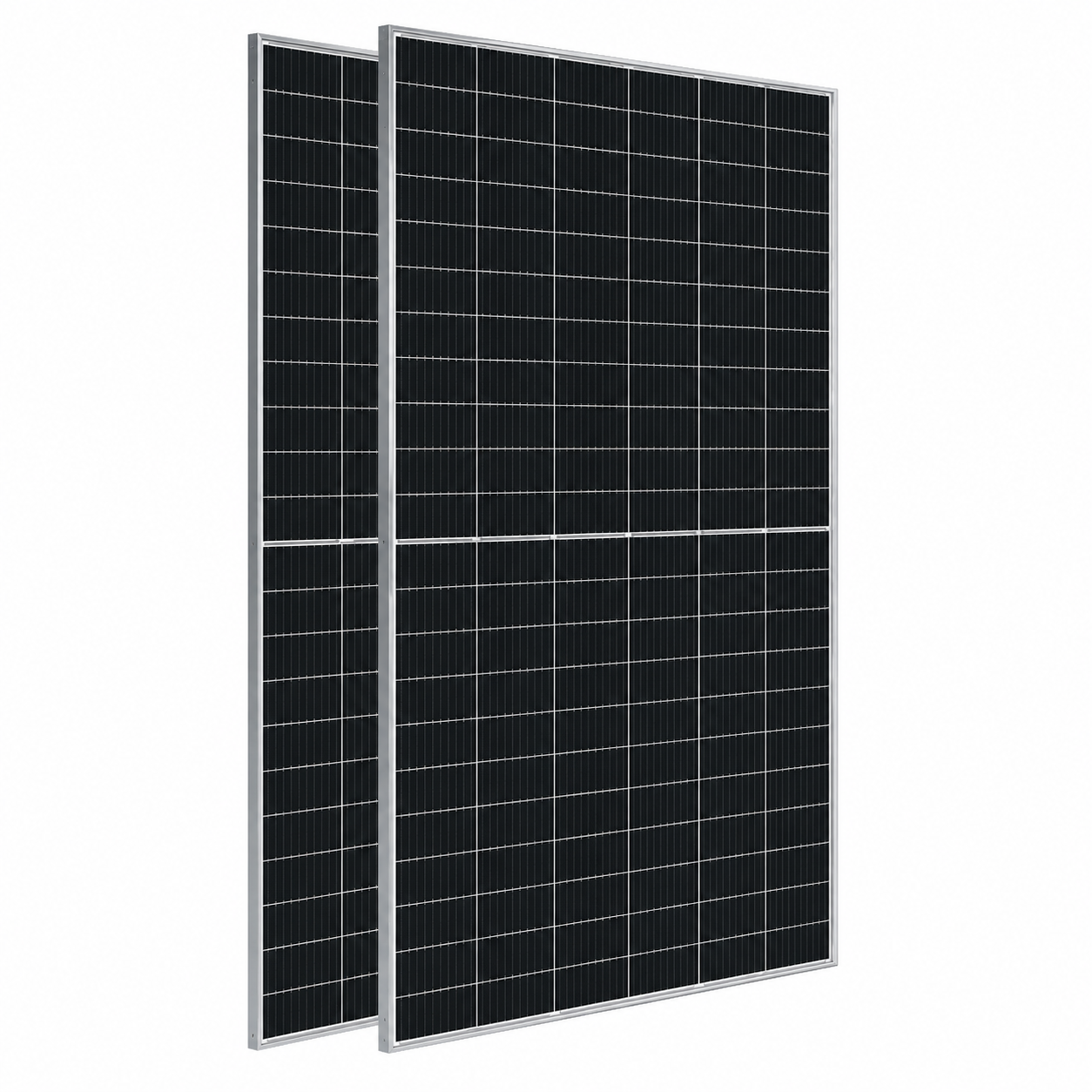

Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
MPN No: CHSM72M(DG)/F-BH-545W PLT
Expected ship date Jul 20 - 27
In Stock
$15,315.00
Pallet
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
Regular price
$15,315
$0.78/watt
Sale price
$425.41/per panel
New
LESS THAN 50
Pallet
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
Available
MPN No: CHSM72M(DG)/F-BH-545W PLT
Regular price
$15,315
$0.78/watt
Sale price
$425.41/per panel
Expected ship date Jul 20 - 27
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$15,315
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
MPN No:
CHSM72M(DG)/F-BH-545W PLT
Expected ship date Jul 20 - 27
≥ 36
Astronergy 545W Astro 5 Twins (Pallet of 36) Bifacial PERC+ Domestic Cell CHSM72M(DG)/F-BH 545W
The Astronergy CHSM72M(DG)/F-BH-545W is a high-performance bifacial P-Type monocrystalline solar module engineered for commercial, industrial, and utility-scale photovoltaic installations.
This module combines upgraded PERC+ cell technology, SMBB architecture, bifacial dual-glass construction, and non-destructive cell cutting to deliver outstanding energy production, superior durability, and dependable long-term reliability.
Key Technology
-
PERC+ Cell Technology
Upgraded PERC cells improve conversion efficiency and long-term energy production. -
Bifacial Power Generation
Captures reflected sunlight from the rear side to increase total energy yield. -
SMBB Cell Design
Super Multi-Busbar technology enhances current collection while minimizing electrical losses. -
Non-Destructive Cell Cutting
Improves cell strength and long-term mechanical reliability. -
Dual Glass Construction
2.0 mm front and rear glass provide superior durability, moisture resistance, and long service life. -
21.1% Module Efficiency
High conversion efficiency helps maximize energy production per installed module. -
Excellent Temperature Performance
Low temperature coefficient of -0.34%/°C helps maintain output during hot operating conditions. -
Low Long-Term Degradation
First-year degradation ≤2.0% followed by only ≤0.45% annual degradation through year 30.
Best Uses
-
Commercial Rooftop Solar
High-output bifacial module designed to maximize commercial rooftop energy production. -
Industrial Solar Installations
Provides dependable long-term performance for manufacturing and industrial facilities. -
Ground Mount Solar Systems
Bifacial construction increases production through reflected ground irradiance. -
Utility-Scale Solar Farms
Excellent for large photovoltaic projects requiring dependable energy generation. -
Carports & Elevated Arrays
Ideal for installations benefiting from rear-side bifacial energy production.
Warranty
- Product Warranty: 15 Years
- Linear Power Warranty: 30 Years
- First-Year Power Degradation: ≤2.0%
- Annual Degradation (Years 2–30): ≤0.45%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Astronergy |
| Model | CHSM72M(DG)/F-BH-545W |
| Series | ASTRO 5 Twins Bifacial Series |
| Cell Type | P-Type Monocrystalline PERC+ |
| Cell Configuration | 144 Cells (6 × 24) |
| Module Type | Bifacial Dual Glass |
| Rated Power (Pmax) | 545W |
| Module Efficiency | 21.1% |
| Power Tolerance | 0 ~ +3% |
| Maximum Power Voltage (Vmp) | 42.10V |
| Maximum Power Current (Imp) | 12.95A |
| Open Circuit Voltage (Voc) | 50.10V |
| Short Circuit Current (Isc) | 13.75A |
| Maximum System Voltage | 1500V DC (IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Temperature Coefficient (Pmax) | -0.34%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| NMOT | 41 ±2°C |
| Front Glass | 2.0 mm Tempered Glass |
| Rear Glass | 2.0 mm Tempered Glass |
| Frame | Silver Anodized Aluminum |
| Junction Box Rating | IP68, 3 Diodes |
| Connector Type | HCB40 (Standard) / MC4-EVO2A (Optional) |
| Cable Size | 4 mm² / 12 AWG |
| Cable Length | (+) 350 mm / (-) 250 mm (Portrait) |
| Dimensions | 89.69 × 44.65 × 1.18 in |
| Weight | 70.8 lbs |
| Front Load Rating | 5400 Pa |
| Rear Load Rating | 2400 Pa |
| Pallet Quantity | 36 Modules |
| Container Quantity | 720 Modules per 40'HQ |
| Certifications | IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001 |
About Astronergy:
Astronergy, a subsidiary of CHINT Group, is a global photovoltaic manufacturer specializing in advanced solar cell and module technologies. The company develops high-efficiency solar products designed to deliver dependable performance, outstanding reliability, and long-term energy production for residential, commercial, and utility-scale applications.
Reliable Bifacial Performance for Commercial and Utility Solar Projects
The Astronergy CHSM72M(DG)/F-BH-545W combines upgraded PERC+ technology, SMBB architecture, bifacial energy generation, and durable dual-glass construction into a dependable high-output solar module engineered to maximize lifetime energy production while reducing overall system costs.
