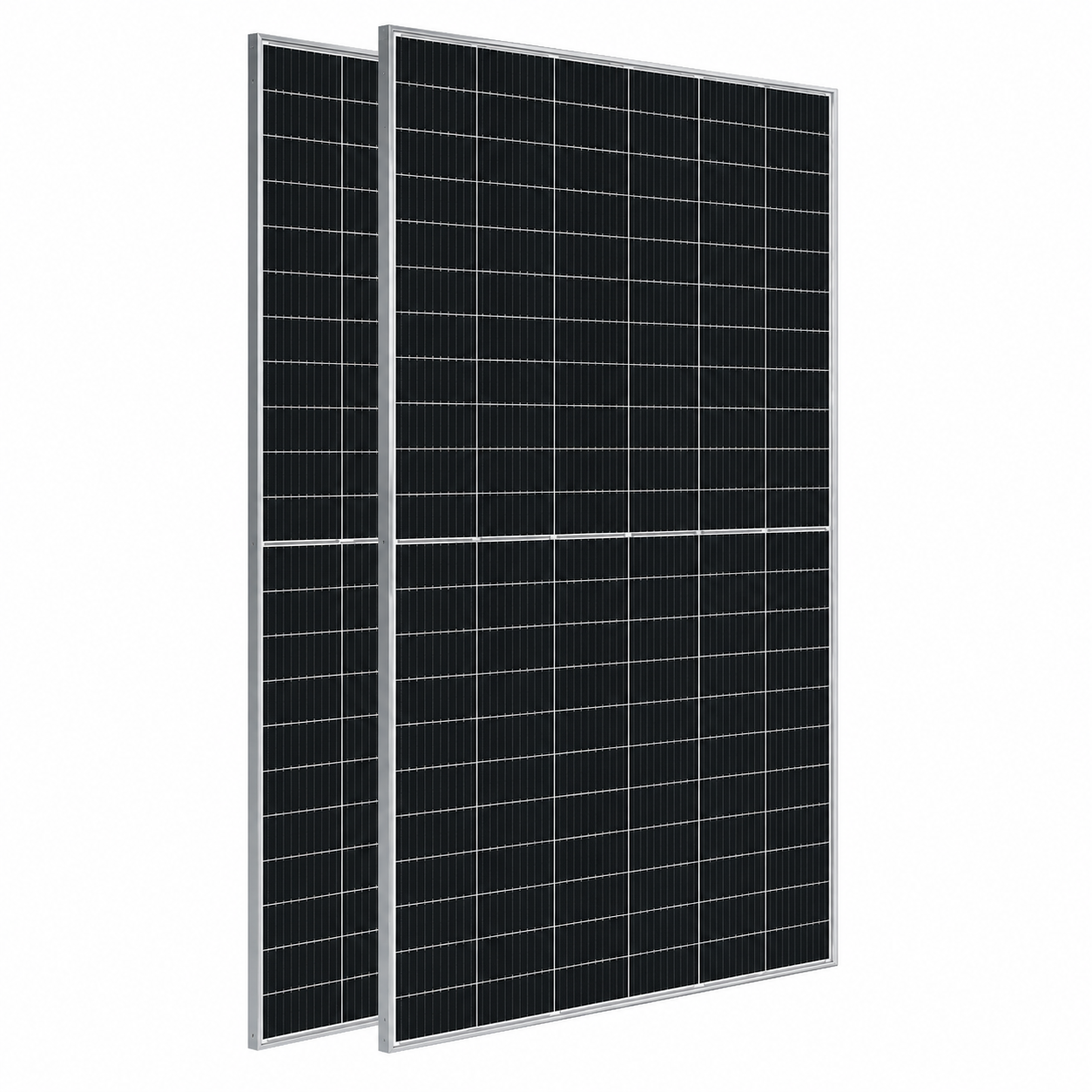

The Astronergy CHSM72M(DG)/F-BH-540W is a high-performance bifacial P-Type monocrystalline solar panel.
This module combines upgraded PERC+ cell technology, SMBB architecture, bifacial dual-glass construction, and non-destructive cell cutting to deliver excellent energy yield, enhanced durability, and long-term reliability..
Key Technology
-
PERC+ Cell Technology
Upgraded PERC cells improve conversion efficiency and long-term energy production. -
Bifacial Power Generation
Captures reflected sunlight from the rear side of the module for increased energy yield. -
SMBB Cell Design
Super Multi-Busbar technology improves current collection while reducing electrical losses. -
Non-Destructive Cell Cutting
Improves cell mechanical strength and long-term reliability. -
Dual Glass Construction
2.0 mm front and rear glass improve moisture resistance and module durability. -
Excellent Temperature Performance
Low temperature coefficient of -0.34%/°C helps maintain output during high operating temperatures. -
1500V System Compatibility
Supports modern high-voltage photovoltaic system architectures. -
Low Long-Term Degradation
First-year degradation ≤2.0% followed by ≤0.45% annual degradation through year 30.
Best Uses
-
Commercial Rooftop Solar
High-output bifacial module ideal for maximizing energy production on commercial buildings. -
Industrial Solar Projects
Provides dependable long-term performance for industrial facilities. -
Ground Mount Solar Systems
Bifacial construction increases energy yield through reflected ground irradiance. -
Utility-Scale Solar Farms
Designed for large PV installations focused on maximizing project returns. -
Carports & Elevated Arrays
Excellent choice for installations benefiting from rear-side energy generation.
Warranty
- Product Warranty: 15 Years
- Linear Power Warranty: 30 Years
- First-Year Power Degradation: ≤2.0%
- Annual Degradation (Years 2–30): ≤0.45%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Astronergy |
| Model | CHSM72M(DG)/F-BH-540W |
| Series | ASTRO 5 Twins Bifacial Series |
| Cell Type | P-Type Monocrystalline PERC+ |
| Cell Configuration | 144 Cells (6 × 24) |
| Module Type | Bifacial Dual Glass |
| Rated Power (Pmax) | 540W |
| Module Efficiency | 20.9% |
| Power Tolerance | 0 ~ +3% |
| Maximum Power Voltage (Vmp) | 41.93V |
| Maximum Power Current (Imp) | 12.88A |
| Open Circuit Voltage (Voc) | 49.90V |
| Short Circuit Current (Isc) | 13.66A |
| Maximum System Voltage | 1500V DC (IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Temperature Coefficient (Pmax) | -0.34%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| NMOT | 41 ±2°C |
| Front Glass | 2.0 mm Tempered Glass |
| Rear Glass | 2.0 mm Tempered Glass |
| Frame | Silver Anodized Aluminum |
| Junction Box Rating | IP68, 3 Diodes |
| Connector Type | HCB40 (Standard) / MC4-EVO2A (Optional) |
| Cable Size | 4 mm² / 12 AWG |
| Cable Length | (+) 350 mm / (-) 250 mm (Portrait) |
| Dimensions | 89.69 × 44.65 × 1.18 in |
| Weight | 70.8 lbs |
| Front Load Rating | 5400 Pa |
| Rear Load Rating | 2400 Pa |
| Pallet Quantity | 36 Modules |
| Container Quantity | 720 Modules per 40'HQ |
| Certifications | IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001 |
About Astronergy:
Astronergy, a subsidiary of CHINT Group, is a global photovoltaic manufacturer specializing in advanced solar cell and module technologies. The company develops high-efficiency solar products designed to deliver dependable performance, outstanding reliability, and long-term energy production for residential, commercial, and utility-scale applications.
Reliable Bifacial Performance for Large-Scale Solar Projects
The Astronergy CHSM72M(DG)/F-BH-540W combines upgraded PERC+ technology, SMBB architecture, bifacial energy generation, and durable dual-glass construction into a dependable solar module that delivers excellent long-term performance for commercial and utility-scale photovoltaic installations.
