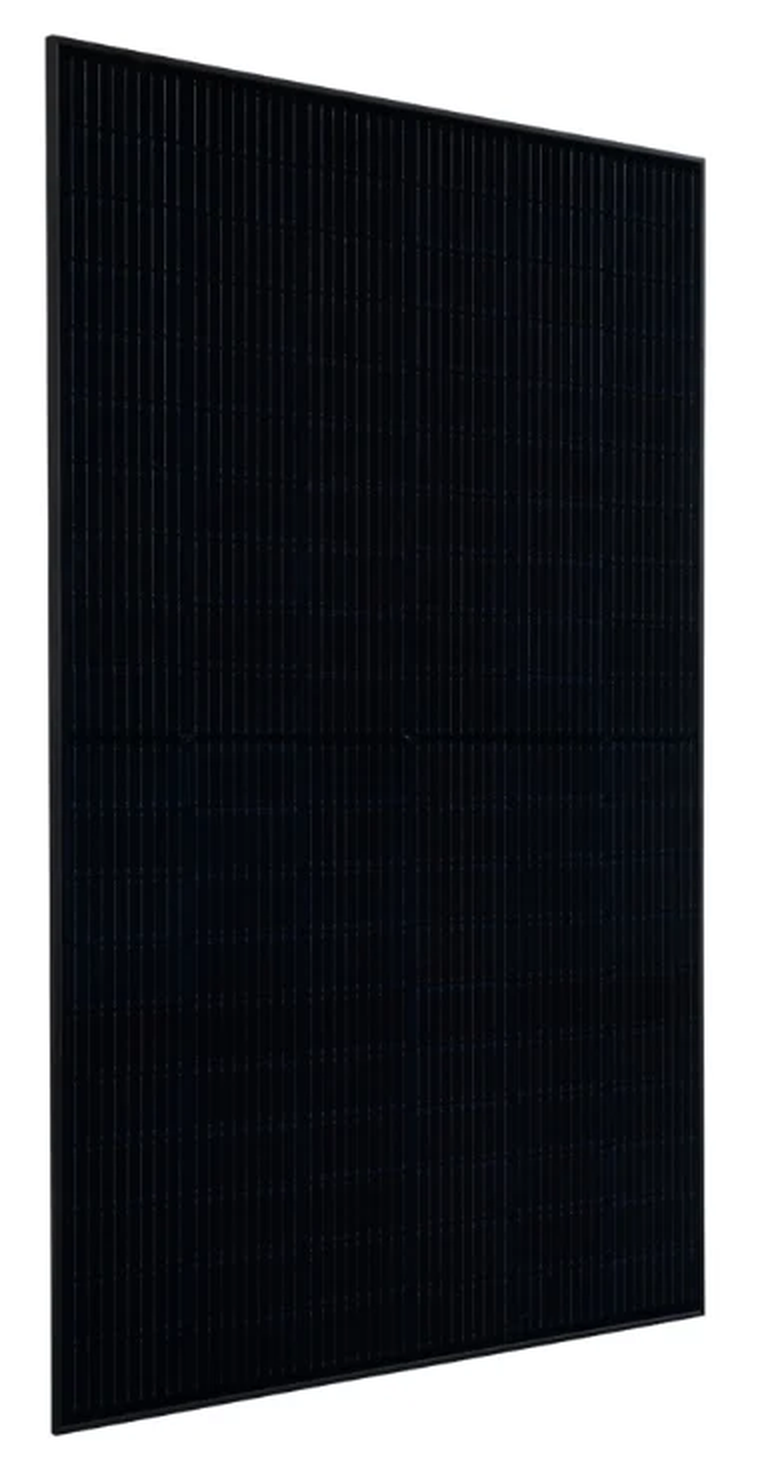

Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
MPN No: DNA-120-MF10-460W
Expected ship date Jun 10 - 17
In Stock
$206.99
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
Regular price
$206.99
$0.44/watt
310 IN STOCK
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
Available
MPN No: DNA-120-MF10-460W
Regular price
$206.99
$0.44/watt
Expected ship date Jun 10 - 17
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$206.99
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
MPN No:
DNA-120-MF10-460W
Expected ship date Jun 10 - 17
≥ 8
Aptos 460W DNA Split Cell Mono PERC Solar Panel DNA-120-MF10-460W
The Aptos Solar DNA-120-MF10-460W is a high-performance monofacial solar module engineered with advanced split-cell PERC technology to deliver enhanced efficiency, improved heat tolerance, and strong long-term energy production. Designed with 120 half-cut cells and ultra-thin busbars, this module minimizes resistive losses while maximizing active cell area for optimal output.
With a sleek all-black design and patented DNA technology, this panel combines strong aesthetics with reliable performance, making it an excellent choice for installations requiring efficiency, durability, and long-term value.
Key Technology
-
Split Cell PERC Technology
Improves heat tolerance, reduces resistive loss, and increases overall energy harvest. -
120 Half-Cell Configuration
Enhances performance and reliability while reducing power loss. -
10 Busbar (BB) Design
Ultra-thin busbars improve current collection and increase module efficiency. -
Patented DNA Technology
Boosts module efficiency and overall power performance. -
All-Black Aesthetic
Provides a clean and modern appearance for visually appealing installations. -
High Mechanical Strength
Rated for 5400 Pa snow and wind loads for durability in harsh conditions. -
Enhanced Environmental Durability
LEVEL 6 salt mist tested for improved corrosion resistance.
Best Uses
-
Residential Rooftop Systems
Ideal for homeowners seeking high-efficiency solar solutions. -
Distributed Solar Installations
Suitable for projects requiring reliable performance and strong output. -
High-Efficiency Solar Projects
Designed for installations focused on long-term performance and durability.
Warranty
- Product Warranty: 30 Years
- Performance Warranty: 30-Year Linear Power Warranty
- 30-Year Output: ~87.8% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Aptos Solar Technology |
| Model | DNA-120-MF10-460W |
| Series | DNA Split Cell |
| Cell Technology | Mono PERC (Split Cell) |
| Cell Configuration | 120 Cells |
| Maximum Power (Pmax) | 460 W |
| Module Efficiency | Up to 21.26% |
| Maximum Power Voltage (Vmp) | 35.36 V |
| Maximum Power Current (Imp) | 13.00 A |
| Open Circuit Voltage (Voc) | 41.97 V |
| Short Circuit Current (Isc) | 13.75 A |
| Temperature Coefficient (Pmax) | -0.35% / °C |
| Temperature Coefficient (Voc) | -0.27% / °C |
| Temperature Coefficient (Isc) | +0.054% / °C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 25 A |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 75.1 × 44.6 × 1.3 in |
| Weight | 52.9 lb |
| Glass | 3.2 mm tempered, anti-reflective coating |
| Frame | Black Frame |
| Junction Box | IP68 Rated |
| Connector | Stäubli EVO2 |
| Mechanical Load | 5400 Pa Snow / 5400 Pa Wind |
| Pallet Quantity | 31 modules per pallet |
About Aptos Solar Technology:
Aptos Solar Technology designs and engineers high-performance photovoltaic modules with a focus on durability, efficiency, and long-term reliability. Their products are built using advanced technologies and rigorous testing standards to ensure consistent performance across a wide range of environments.
Advanced Split-Cell Performance with Long-Term Reliability
The Aptos DNA-120-MF10-460W combines efficient split-cell PERC technology, robust mechanical strength, and long-term warranty coverage—making it a dependable solution for modern solar installations focused on performance and durability.
