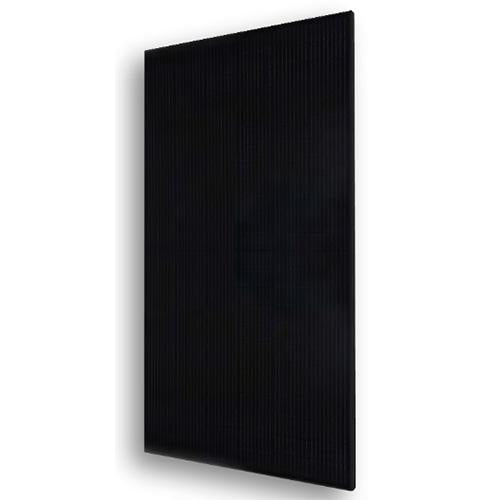

Aptos 410W DNA Bifacial N-Type Solar Panel DNA-108-BF10-410W
Aptos 410W DNA Bifacial N-Type Solar Panel DNA-108-BF10-410W
Aptos 410W DNA Bifacial N-Type Solar Panel DNA-108-BF10-410W
Aptos 410W DNA Bifacial N-Type Solar Panel DNA-108-BF10-410W
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Aptos 410W Bifacial N-Type Solar Panel DNA-108-BF10-410W
The Aptos DNA-108-BF10-410W is a high-performance bifacial solar panel utilizing patented DNA PERC technology and N-Type bifacial cells. With an all-black aesthetic and split-cell construction, it delivers 410W front-side power and excellent low-light and thermal performance, ideal for both residential and commercial applications.
Key Benefits
Elegant All-Black Design: Blends cleanly into rooftops while offering high energy output with bifacial gain potential.
High Power Output: Rated at 410W with 20.96% efficiency for optimal space utilization.
Thermal Durability: PERC tech with thin-film layers improves heat tolerance and maintains high energy harvest.
Ultra-Durable Build: Withstands 5400 Pa wind and snow loads; IP68 junction box ensures water resistance.
U.S. Engineering & Certification: Designed in Silicon Valley and Miami-Dade approved for hurricane-prone zones.
Special Technology
DNA PERC Split Cell Design: Improves shading tolerance, minimizes resistive loss, and uses 5% more active area for better yield.
10 Ultra-Thin Busbars: Reduces current path resistance for improved power delivery.
Bifacial Rear Gain: Offers up to 25% additional energy generation depending on reflectivity.
Advanced Glass Technology: Anti-reflective 3.2 mm glass enhances light transmission and reduces surface glare.
Warranty
Backed by a comprehensive 30-Year Product Warranty and 30-Year Power Performance Warranty with 87.8% retained output at year 30.
Best Uses
Residential Rooftops: Aesthetic appeal with maximum space efficiency and long-term reliability.
Commercial Projects: High output and 1500V system compatibility make it ideal for large-scale installs.
Ground-Mounted Arrays: Bifacial performance maximizes return on reflective surfaces.
Bifacial Design, DNA PERC Split Cell Design and N-Type Half-Cells Structure Explained
These advanced features define the high-efficiency performance and extended durability of this solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
DNA PERC Split Cell Design: Improves shading tolerance, minimizes resistive loss, and uses 5% more active area for better yield.
Specifications Table
| Specification | Data |
|---|---|
| Model | DNA-108-BF10-410W |
| Rated Power Output | 410 W |
| Module Efficiency | 20.96% |
| Cell Type | N-Type SE-PERC, Split-Cell |
| Number of Cells | 108 (Half-Cut) |
| Bifacial Gain | Up to 25% |
| Open Circuit Voltage (Voc) | 37.67 V |
| Short Circuit Current (Isc) | 13.11 A |
| Max Power Voltage (Vmp) | 33.08 V |
| Max Power Current (Imp) | 12.39 A |
| Temperature Coefficient (Pmax) | -0.32% / °C |
| Temperature Coefficient (Voc) | -0.24% / °C |
| Temperature Coefficient (Isc) | +0.03% / °C |
| NOCT | 45°C ±2°C |
| Max System Voltage | 1500 VDC |
| Max Series Fuse Rating | 30 A |
| Dimensions (L × W × H) | 67.7 × 44.6 × 1.3 in |
| Weight | 48.5 lbs |
| Glass | 3.2 mm tempered, anti-reflective |
| Frame | Anodized Aluminum Alloy |
| Connector | Staubli EVO2 |
| Junction Box | IP68 Rated |
| Output Cable | 4 mm² (EU) / 12 AWG, 1000 mm |
| Front & Rear Load Rating | 5400 Pa / 5400 Pa |
| Certifications | UL61730-1/2, IEC61730-1/2 |
| Warranty | 30-Year Product & Performance |
About Aptos:
Aptos Solar specializes in high-performance solar panels using patented dual nano-layered cell technology. Their products offer excellent efficiency, durability, and performance in real-world conditions, making them ideal for residential and commercial applications.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 30-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the DNA-108-BF10-410W panel?
The DNA-108-BF10-410W panel delivers a rated power output of 410 watts, offering high efficiency for both residential and commercial solar installations.
Q: Are DNA-108-BF10-410W panels suitable for areas with low sunlight?
Yes, these panels perform well in low-light environments such as early mornings, overcast days, and shaded conditions, maximizing energy capture throughout the day.
Q: What kind of warranty does DNASolar offer for the DNA-108-BF10-410W panel?
DNASolar offers a 30-year product warranty and a 30-year linear power output warranty, ensuring reliable, long-term performance and peace of mind.
Q: Are these panels compatible with different mounting systems?
Yes, the DNA-108-BF10-410W panels are designed for compatibility with most standard rooftop and ground-mounted racking systems for easy installation.
Q: How durable are DNA-108-BF10-410W panels in harsh weather conditions?
These panels are engineered to withstand extreme weather conditions including snow loads, wind pressure, and temperature fluctuations. Their dual-glass design and N-type cells enhance both longevity and energy yield.
Q: Can DNA-108-BF10-410W panels help me save on energy costs?
Absolutely. With high module efficiency and bifacial energy gain, these panels can generate more electricity per square foot, potentially reducing your utility bills and accelerating return on investment.
Q: How many panels do I need for my home?
For a home using around 10,000 kWh per year, you would typically need about 20 to 26 DNA-108-BF10-410W panels, depending on your system's design and available roof space. A certified installer can provide an exact assessment.
Q: How many panels are in each pallet?
Each pallet contains 31 DNA-108-BF10-410W panels, making them ideal for both small- and large-scale solar projects.
