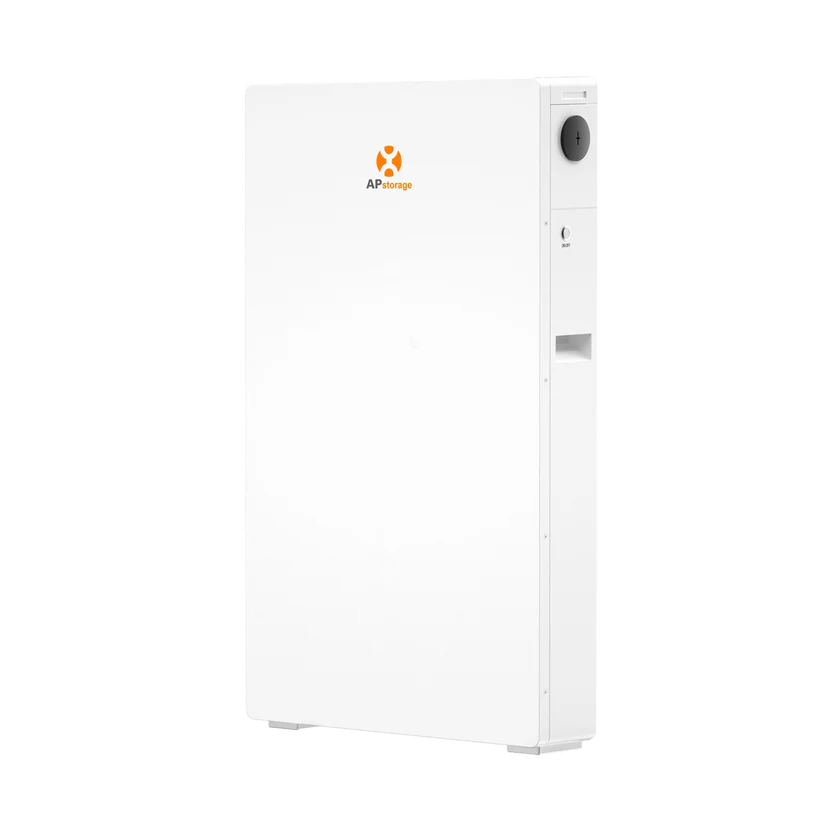

APsystems APstorage 10.24kWh Lithium Battery – APbattery-51.2V/10.24kWh-U
Reliable 10kWh Energy Storage for Home Backup & Solar Self-Consumption
Pair with: APsystems APstorage ELS-11.4 PCS – 11.4kW AC-Coupled Battery Inverter & Power Conversion System
Key Features
- 10.24kWh lithium iron phosphate battery
- CATL LFP cell technology
- 6.14kW continuous charge/discharge power
- 8.19kW peak discharge capability
- Expandable to 163.84kWh
- Indoor or outdoor installation (IP65)
- Optional self-heating technology
- CAN, RS485, Dry Contact, and optional WiFi communications
- UL9540A, UL1973, and UN38.3 certified
- 6,000 cycle life and 15-year design life
Why Choose the APsystems APstorage Battery?
Premium CATL Lithium Iron Phosphate Cells
The APstorage battery utilizes industry-leading CATL LiFePO4 battery technology, providing exceptional safety, thermal stability, and long-term reliability compared to conventional lithium battery chemistries.
10.24kWh of Energy Storage
Store excess solar production during the day and use it when utility rates are highest or during outages.
- Rated Capacity: 200Ah
- Nominal Voltage: 51.2V
- Total Energy Storage: 10.24kWh
High Power Output
The APstorage battery delivers strong charge and discharge performance for demanding residential loads.
- Continuous Charge Power: 6.14kW
- Continuous Discharge Power: 6.14kW
- Peak Discharge Power: 8.19kW (1 minute)
Expandable Energy Storage
As your energy needs grow, simply add additional batteries.
- Up to 16 batteries in parallel
- Maximum storage capacity of 163.84kWh
Backup Power Ready
The APstorage platform supports blackout protection and emergency backup applications, helping keep essential loads powered when the grid goes down.
Indoor or Outdoor Installation
With an IP65-rated enclosure, the battery can be installed in garages, utility rooms, sheds, or exterior locations.
Cold Climate Performance
Optional integrated self-heating technology allows charging in temperatures as low as 23°F, making the battery suitable for colder climates.
Ideal Applications
- Residential solar energy storage
- Whole-home backup systems
- Critical load backup
- Time-of-use utility optimization
- Off-grid and hybrid solar systems
- Energy independence projects
- Expandable battery banks
Advanced Battery Management System (BMS)
The APstorage battery incorporates an advanced Battery Management System that continuously monitors cell voltage, current, temperature, and overall battery health to maximize safety and performance.
Communication options include:
- CAN
- RS485
- Dry Contact
- Optional WiFi Monitoring
Optional remote monitoring and over-the-air firmware updates allow system owners and installers to manage performance efficiently.
Product Specifications
| Specification | APsystems APstorage Battery |
|---|---|
| Manufacturer | APsystems |
| Model Number | APbattery-51.2V/10.24kWh-U |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Manufacturer | CATL |
| Rated Capacity | 200Ah |
| Nominal Voltage | 51.2V |
| Total Energy | 10.24kWh |
| Continuous Charge Current | 120A |
| Continuous Discharge Current | 120A |
| Continuous Charge Power | 6.14kW |
| Continuous Discharge Power | 6.14kW |
| Peak Discharge Power | 8.19kW (1 Minute) |
| Maximum Parallel Batteries | 16 |
| Maximum System Capacity | 163.84kWh |
| Recommended Depth of Discharge | 90% |
| Communication | CAN, RS485, Dry Contact, Optional WiFi |
| Ingress Protection | IP65 |
| Cooling Method | Natural Convection |
| Certifications | UL9540A, UL1973, UN38.3 |
| Cycle Life | 6,000 Cycles |
| Design Life | 15 Years |
| Dimensions (L × W × H) | 6.50 × 21.7 × 39.4 in |
| Weight | 213.8 lbs |
| Operating Charge Temperature | 23°F to 131°F |
| Operating Discharge Temperature | 5°F to 131°F |
Built for Long-Term Energy Independence
Whether you're pairing it with a new solar installation or adding storage to an existing system, the APsystems APstorage 10.24kWh Battery delivers dependable backup power, industry-leading CATL LFP cell technology, scalable storage capacity, and a long 15-year design life. With support for up to 163.84kWh of storage and advanced communications for modern energy management, APstorage provides a flexible foundation for today's energy-conscious homeowner.
The APsystems APstorage 10.24kWh Battery is a high-capacity lithium iron phosphate (LFP) energy storage solution designed for residential solar systems, backup power applications, and energy independence. Built with premium CATL LFP battery cells, the APstorage battery delivers long cycle life, advanced battery management, and scalable storage capacity for both grid-tied and backup energy systems.
With 10.24kWh of usable storage, a slim wall-mounted design, and support for up to 16 batteries in parallel (163.84kWh total capacity), the APstorage platform is designed to grow with your energy needs. Whether you're looking to reduce utility consumption, increase solar self-consumption, or provide whole-home backup protection, the APsystems APstorage battery provides dependable performance in a compact footprint.
Designed for both indoor and outdoor installation, the battery carries an IP65 enclosure rating and features optional self-heating technology that supports charging in cold-weather environments.
