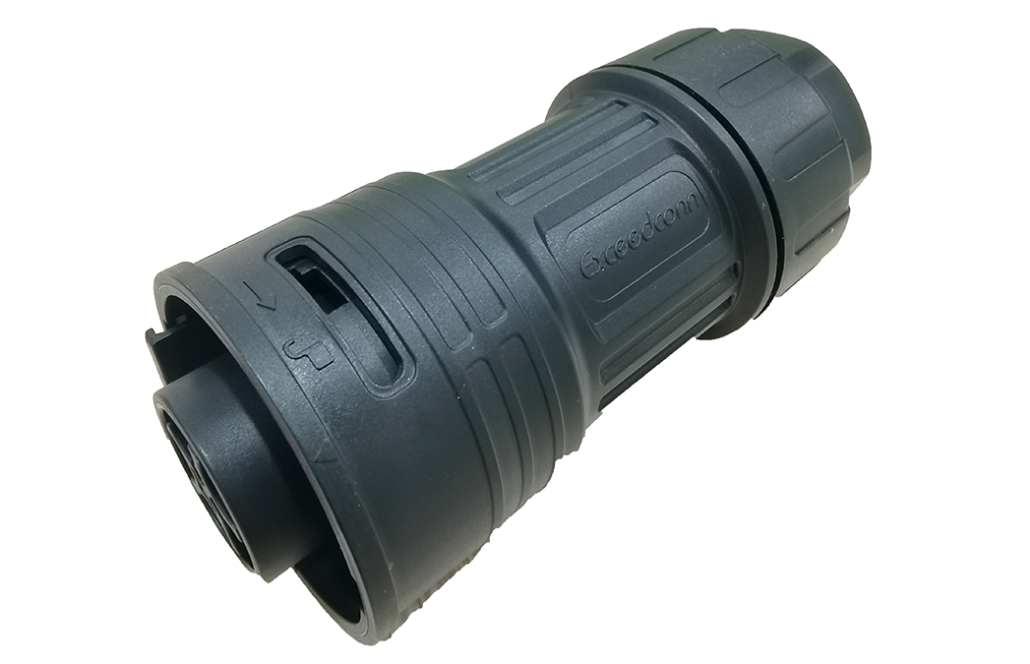

APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
MPN No: 2301511002
Expected ship date Jun 11 - 18
In Stock
$15.39
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
Regular price
$15.39
LESS THAN 50
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
Available
MPN No: 2301511002
Regular price
$15.39
Expected ship date Jun 11 - 18
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$15.39
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
MPN No:
2301511002
Expected ship date Jun 11 - 18
APSystems AC Cable Connector - Male - 40A rated for 10 AWG 2301511002
Key Features
- High Voltage & Current Rating – Supports 600V and 40A for robust power connections.
- Low Contact Resistance – Ensures efficient power transfer with ≤50mΩ resistance.
- IP67 Rated Waterproofing – Provides 1m submersion protection for 30 minutes when mated.
- High Dielectric Strength – Withstands 3000V to prevent insulation failure.
- Long Durability – 500+ mating cycles ensure longevity in demanding applications.
- Wide Operating Temperature – Functions in extreme conditions from -40°C to 105°C.
- Versatile Cable Compatibility – Supports wire sizes from 2.5mm² to 10mm².
Applications
- Solar PV inverter and microinverter connections
- Commercial and industrial electrical installations
- Outdoor power distribution systems requiring waterproof protection
- High-power AC transmission in renewable energy projects
Installation
The 2301511002 AC Connector is designed for secure and reliable high-voltage connections. With an IP67 waterproof rating, it is ideal for outdoor solar and power applications. Simply mate the connector properly to achieve a water-tight and secure connection.
Advanced Protection & Performance
Built for reliability and longevity, this AC connector maintains a low contact resistance and high insulation resistance (≥500MΩ), ensuring safe and efficient power delivery. It meets rigorous mechanical and environmental standards, making it a trusted solution for solar and high-power applications.
About APsystems
APsystems is a global leader in solar microinverter technology, providing advanced and innovative power conversion solutions. Their products are known for efficiency, durability, and seamless integration in residential and commercial PV systems.
Specifications
| Parameter | Details |
|---|---|
| Part Number | 2301511002 |
| Connector Type | AC Connector (5C, 40A, Male) |
| Voltage Rating | 600V |
| Current Rating | 40A |
| Contact Resistance | ≤50mΩ |
| Dielectric Withstand Voltage | 3000V |
| Insulation Resistance | ≥500MΩ |
| Mating Cycles | ≥500 times |
| Cable Gauge | 2.5-10mm² |
| Protection Class | IP67 (1m-30min after mating) |
| Operating Temperature | -40°C to 105°C |
