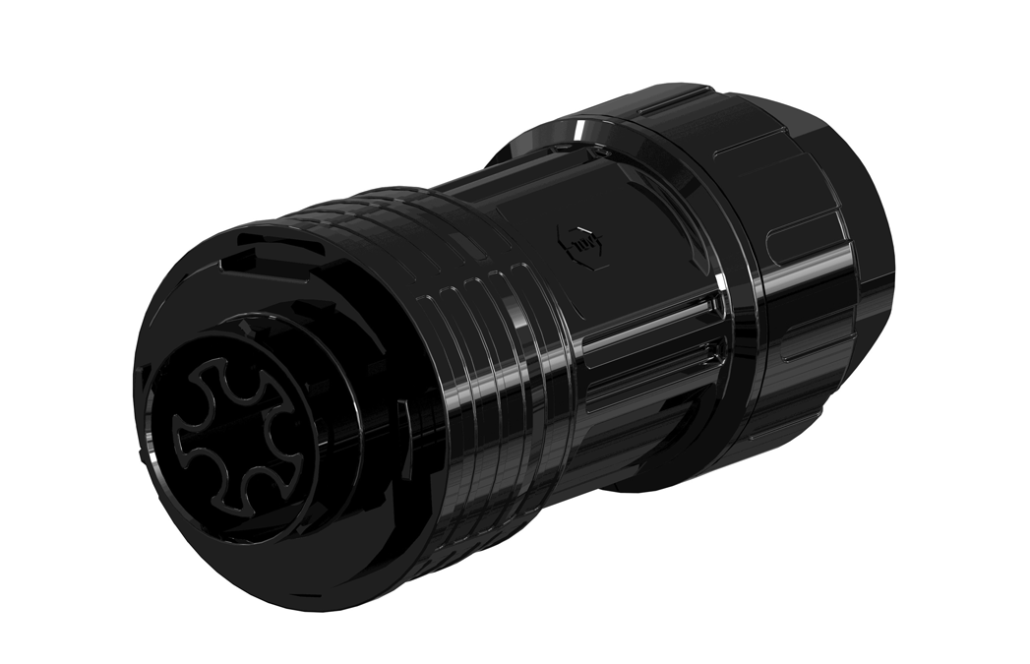

APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
MPN No: 2301512002
Expected ship date Nov 26 - Dec 03
In Stock
$13.68
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
Regular price
$13.68
60 IN STOCK
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
In Stock
MPN No: 2301512002
Regular price
$13.68
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$13.68
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
MPN No:
2301512002
Expected ship date Nov 26 - Dec 03
In Stock
APSystems AC Cable Connector - Female - 40A rated 10 AWG 2301512002
Key Features
- 600V High Voltage Rating – Designed for safe and efficient AC power transmission.
- 40A Current Capacity – Supports high-power loads for solar and electrical installations.
- Low Contact Resistance – Ensures efficient energy transfer with ≤50mΩ resistance.
- IP67 Waterproof Rating – Provides 1m submersion protection for 30 minutes when mated.
- 3000V Dielectric Withstanding Voltage – Ensures electrical insulation and safety.
- Long Durability – Rated for 500+ mating cycles, ensuring extended operational life.
- Wide Temperature Range – Performs reliably in -40°C to 105°C environments.
- Versatile Cable Compatibility – Supports 2.5mm² to 10mm² cable sizes for flexible applications.
Applications
- Solar PV inverter and microinverter AC connections
- Industrial and commercial electrical power distribution
- Outdoor power transmission requiring waterproof connections
- Secure high-voltage AC connections in renewable energy systems
Installation
The 2301512002 AC Connector (Female) is designed for quick and secure AC power connections. With its IP67 rating, it prevents water and dust ingress, making it suitable for outdoor solar and high-voltage applications. Ensure proper mating with the corresponding male connector for a sealed and safe connection.
Advanced Safety & Performance
Engineered for reliability and high efficiency, this APsystems AC connector meets rigorous mechanical, environmental, and electrical safety standards. The low contact resistance and high insulation resistance (≥500MΩ) ensure long-term safety and stability in high-power AC installations.
About APsystems
APsystems is a leading innovator in solar microinverter and power conversion technology. Their products are designed for efficiency, durability, and seamless integration into modern renewable energy applications.
Specifications
| Parameter | Details |
|---|---|
| Part Number | 2301512002 |
| Connector Type | AC Connector (5C, 40A, Female) |
| Voltage Rating | 600V |
| Current Rating | 40A |
| Contact Resistance | ≤50mΩ |
| Dielectric Withstand Voltage | 3000V |
| Insulation Resistance | ≥500MΩ |
| Mating Cycles | ≥500 times |
| Cable Gauge | 2.5-10mm² |
| Protection Class | IP67 (1m-30min after mating) |
| Operating Temperature | -40°C to 105°C |
