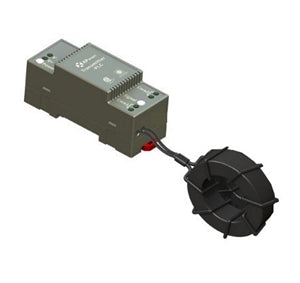

Apsystems 406001 Rapid Shutdown Transmitter

Apsystems 406001 Rapid Shutdown Transmitter

$38.60
$38.60

Apsystems 406001 Rapid Shutdown Transmitter

Apsystems 406001 Rapid Shutdown Transmitter

No reviews
$38.60
$38.60
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
APsystems
Weight
0.64 lb
Dimension
(LxWxH): 5.51 x 4.72 x 3.66 inches
Apsystems 406001 Rapid Shutdown Transmitter

The APsystems Rapid Shutdown System (RSS) Transmitter-PLC is part of a rapid shutdown solution when paired with APsystems RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the RSS Transmitter sends a signal to the RSD-S-PLC units to keep their PV modules connected and supplying energy.

RSD-S-PLC units automatically enter rapid shutdown mode when the RSS Transmitter-PLC is switched off and resume energy production when power is restored to the RSS Transmitter. This solution complies with NEC 690.12 specifications for 2017 and supports the SunSpec signaling for rapid shutdown.


SPECIFICATIONS

Model 406001
Series -
Manufacturer APSystem


GENERAL SPECIFICATION

Applications Rapid Shutdown System (RSS) Transmitter-PLC
Safety Compliance NEC 2017 (690.12); UL1741; CSA C22.2 No.330-17; IEC/EN62109-1; 2PFG2305
EMC Compliance FCC Part15; ICES-003; IEC/EN62109-1/-2/-3/-4
Input Voltage 12VDC

Warranty

  • Manufacturer Warranty 12 Years

* Refer to warranty document for terms and conditions
Documentation

Data Sheet


Detailed Information

The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution when paired with APsmart RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the Transmitter-PLC sends a signal to the RSD S-PLC units to keep their PV modules connected and supply energy.

RSD-S-PLC units automatically enter rapid shutdown mode when the Transmitter-PLC is switched off and resume energy production when power is restored to the Transmitter-PLC. This solution complies with NEC690.12 specifications for 2017 and supports the SunSpec signaling for the rapid shutdown.

The Transmitter-PLC includes one or two cores and an optional power supply: 85-264VAC for residential,180-550VAC for commercial.

High reliability

Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

Meets NEC 2017 (690.12) requirements

Provides heartbeat signal to RSD. Signal stops when AC power is absent

Meets SunSpec requirements

Equipped with single/dual core
