APsmart Transmitter-PLC Outdoor Kit 408006
408006
APsmart Transmitter-PLC Outdoor Kit 408006

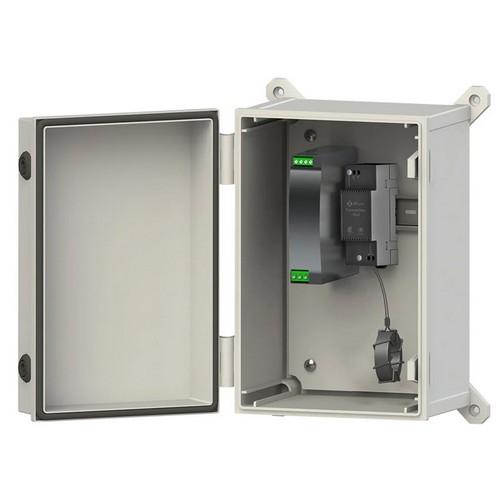

The APsmart 408006 is a single-core Transmitter-PLC Outdoor Kit with a universal 85–264 Vac power supply. When paired with APsmart RSD-S-PLC rapid-shutdown devices, it continuously sends the keep-alive PLC signal during normal operation and triggers rapid shutdown when switched off—meeting NEC 2017 (690.12) and SunSpec signaling requirements for residential or commercial PV systems.
Key Benefits
Code-Compliant Rapid Shutdown: Meets NEC 2017 690.12 using SunSpec PLC signaling when used with RSD-S-PLC units.
Single-Core Kit (Residential PSU): Includes 85–264 Vac → 12 Vdc supply and outdoor enclosure for quick installs.
High Through-Current: Core rated up to 300 A (150 A ×2 pathways) and 1500 Vdc systems.
Scalable Strings: Supports up to 30 modules per string; up to 15 strings per core (dependent on cable OD).
Outdoor-Ready: IP65 enclosure and −40 to +85 °C operating range.
Special Technology
Power-Line Communication (PLC): Transmits keep-alive over DC conductors to RSD-S-PLC devices; modules enter shutdown when the transmitter is off.
Warranty
Manufacturer’s Standard Warranty (APsmart).
Best Uses
Residential & C&I Rooftops: Centralized rapid-shutdown control with RSD-S-PLC at each module.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 408006 (Transmitter-PLC Outdoor Kit, Single Core, 85–264 Vac PSU) |
| Function | PLC rapid-shutdown transmitter for APsmart RSD-S-PLC |
| Compliance | NEC 2017 (690.12); SunSpec signaling; UL1741; CSA C22.2 No.330-17; FCC Part 15; ICES-003 |
| System Voltage (Max) | 1500 Vdc |
| Core Max Current | 300 A (150 A ×2) |
| Core Inner Diameter | 29 mm |
| Supported PV Modules per String | Up to 30 modules |
| Max Strings per Core | Up to 15 (depends on DC cable OD) |
| Strings/Core by Cable Ø | Ø5.9 mm: ≤15 · Ø6.35 mm: ≤15 · Ø7 mm: ≤14 · Ø8.6 mm: ≤10 |
| Transmitter Input | 12 Vdc, 0.5 A |
| Power Supply (included) | 85–264 Vac in → 12 Vdc out; PSU size: 90 × 17.5 × 58.4 mm |
| Communication | PLC (power-line communication) |
| Enclosure Rating | IP65 (outdoor) |
| Operating Temperature | −40 °C to +85 °C |
| Kit Dimensions (W × H × D) | 7.81 × 11.73 × 7.05 in |
| Weight | 6.06 lb |
| Ordering Family | 408004 (Single, 180–550 Vac); 408005 (Dual, 180–550 Vac); 408006 (Single, 85–264 Vac); 408007 (Dual, 85–264 Vac) |
| Compatibility | APsmart RSD-S-PLC; PV inverters in SunSpec RSD ecosystems |
| Warranty | Manufacturer Standard |
About APsmart:
APsmart is a global leader in PV safety solutions, specializing in rapid shutdown devices (RSDs) and intelligent energy management tools. Their products ensure compliance with the latest NEC requirements while enhancing the reliability of solar energy systems.
