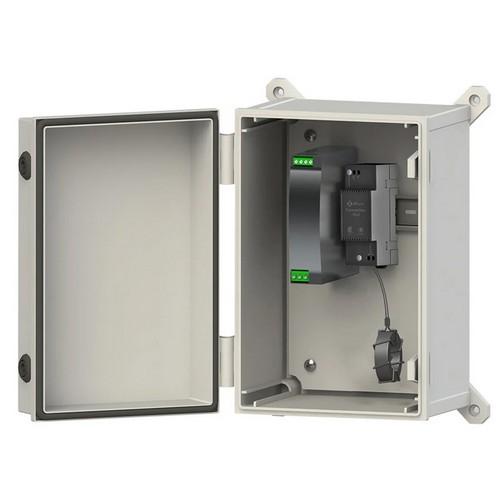

APsmart Transmitter-PLC Outdoor Kit 408006

The APsmart 408006 is a single-core Transmitter-PLC Outdoor Kit with a universal 85–264 Vac power supply. When paired with APsmart RSD-S-PLC rapid-shutdown devices, it continuously sends the keep-alive PLC signal during normal operation and triggers rapid shutdown when switched off—meeting NEC 2017 (690.12) and SunSpec signaling requirements for residential or commercial PV systems.

Key Benefits

Code-Compliant Rapid Shutdown: Meets NEC 2017 690.12 using SunSpec PLC signaling when used with RSD-S-PLC units.

Single-Core Kit (Residential PSU): Includes 85–264 Vac → 12 Vdc supply and outdoor enclosure for quick installs.

High Through-Current: Core rated up to 300 A (150 A ×2 pathways) and 1500 Vdc systems.

Scalable Strings: Supports up to 30 modules per string; up to 15 strings per core (dependent on cable OD).

Outdoor-Ready: IP65 enclosure and −40 to +85 °C operating range.

Special Technology

Power-Line Communication (PLC): Transmits keep-alive over DC conductors to RSD-S-PLC devices; modules enter shutdown when the transmitter is off.

Warranty

Manufacturer’s Standard Warranty (APsmart).

Best Uses

Residential & C&I Rooftops: Centralized rapid-shutdown control with RSD-S-PLC at each module.

Specifications Table

Specification	Data
Part Number	408006 (Transmitter-PLC Outdoor Kit, Single Core, 85–264 Vac PSU)
Function	PLC rapid-shutdown transmitter for APsmart RSD-S-PLC
Compliance	NEC 2017 (690.12); SunSpec signaling; UL1741; CSA C22.2 No.330-17; FCC Part 15; ICES-003
System Voltage (Max)	1500 Vdc
Core Max Current	300 A (150 A ×2)
Core Inner Diameter	29 mm
Supported PV Modules per String	Up to 30 modules
Max Strings per Core	Up to 15 (depends on DC cable OD)
Strings/Core by Cable Ø	Ø5.9 mm: ≤15 · Ø6.35 mm: ≤15 · Ø7 mm: ≤14 · Ø8.6 mm: ≤10
Transmitter Input	12 Vdc, 0.5 A
Power Supply (included)	85–264 Vac in → 12 Vdc out; PSU size: 90 × 17.5 × 58.4 mm
Communication	PLC (power-line communication)
Enclosure Rating	IP65 (outdoor)
Operating Temperature	−40 °C to +85 °C
Kit Dimensions (W × H × D)	7.81 × 11.73 × 7.05 in
Weight	6.06 lb
Ordering Family	408004 (Single, 180–550 Vac); 408005 (Dual, 180–550 Vac); 408006 (Single, 85–264 Vac); 408007 (Dual, 85–264 Vac)
Compatibility	APsmart RSD-S-PLC; PV inverters in SunSpec RSD ecosystems
Warranty	Manufacturer Standard
