SolarEdge Current transformer AcuCT-075-200-333 200A

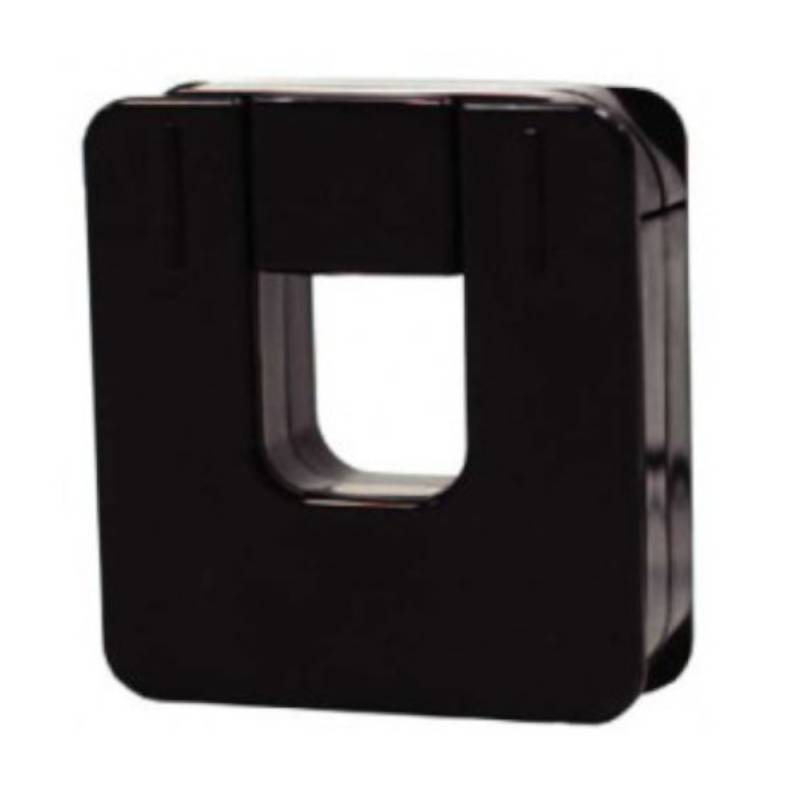

The AcuCT-075-200-333 is a compact split-core current transformer (CT) designed for accurate electrical current measurement in commercial and industrial power monitoring systems. With a 200A primary current rating and a safe 333mV secondary output, this transformer enables precise current sensing without disconnecting existing wiring. Its split-core clamp design allows fast installation around conductors, making it ideal for energy monitoring, submetering, and solar energy systems.
Key Technology
-
Split-Core Clamp Design
The hinged split-core construction allows quick installation around existing conductors without disconnecting cables or shutting down equipment. -
333mV Safe Output Signal
Low-voltage output provides safe operation and direct compatibility with most modern power meters and monitoring devices. -
Revenue-Grade Accuracy
Delivers approximately 0.5% accuracy across a wide measurement range for reliable energy monitoring. -
Internal Burden Resistor
Integrated burden resistor allows safe operation even when the secondary circuit is open. -
Quick Retrofit Installation
Designed specifically for retrofit applications such as electrical panel monitoring, solar monitoring systems, and building energy management.
Best Uses
-
Solar Energy Monitoring
Measures current flow in PV systems for performance monitoring and system optimization. -
Energy Submetering
Ideal for commercial and industrial electrical panels to track energy consumption. -
Building Energy Management Systems
Provides accurate data for energy management and efficiency analysis.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SolarEdge |
| Model | AcuCT-075-200-333 |
| Device Type | Split-Core Current Transformer |
| Primary Current Rating | 200 A |
| Secondary Output | 333 mV |
| Accuracy | ±0.5% (from 10–120% rated current) |
| Lead Wire Length | 8 ft twisted pair (22 AWG) |
| Frequency Range | 50 / 60 Hz |
| Insulation Voltage | 600 VAC, Category III |
| Withstand Voltage | 3 kV / 1 minute |
| Operating Temperature | -20°C to +55°C |
| Certifications | UL Recognized, CE, RoHS |
About SolarEdge:
SolarEdge is a global leader in smart energy technology, specializing in solar inverters, power optimizers, and energy management solutions. Its innovative systems maximize solar power generation, improve system performance, and enable efficient monitoring for residential, commercial, and utility-scale installations.
Reliable Current Monitoring for Energy & Solar Systems
The SolarEdge AcuCT-075-200-333 current transformer provides accurate current sensing in a compact split-core design. Its safe low-voltage output and easy installation make it an ideal solution for energy monitoring, solar system measurement, and electrical panel metering.
